The product may differ from the illustration
Swivelling diecast aluminum joint for the articulated connection of 40x40 profiles with slot 10. The 180° swivel range allows freely selectable angled connections, and the ESD capability suits electrostatically protected areas. Fastening material is included.
Gelenk 40x40, Nut 10, schwenkbar 180°, ESD - Bosch Rexroth 3842543401
BOSCH REXROTH Original product
Net price (excl. VAT)
€24.92 €20.94
Item BRR-3842543401
Manufacturer no. 3842543401
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842543401
Country of originTurkey
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842543401
Frequently Bought Together
- This Item: €24.92 €20.94
- Strebenprofil 40x40L, 6070 mm, Aluminium eloxiert, ESD-geeignet - Bosch Rexroth 3842529340 €122.05 €102.56
- Verbinder 45° 40x40 ESD für Aluminiumprofile, Nut 10, Aluminiumguss - Bosch Rexroth 3842554449 €16.46 €13.83
The Bosch Rexroth Joint 40x40 connects aluminum profiles with slot 10 in an articulated way and enables angle-adjustable structures in machine and fixture construction. It is aimed at designers and fitters building flexible, load-bearing connections in the 40 mm grid.
- 180° swivel range for freely selectable angles
- Sturdy diecast aluminum with high load capacity up to 15000 N (F1)
- ESD-capable for electrostatically protected areas
- Fastening material included in delivery
Technical data
| Profile slot | 10 |
| Modular dimension | 40 mm |
| Dimensions | 40x40 |
| ESD | yes |
| Swivel range | 180° |
| Force F1 | 15000 N |
| Force F2 | 1000 N |
| Material | Diecast aluminum |
| Material information | Joint: Diecast aluminum; Fastening material: Steel, galvanized |
| Fastening material | 2x flange head screw M8x16, 2x T-nut groove 10 M8, 2x screw S12x30 |
| Scope of delivery | incl. fastening material (FS) |

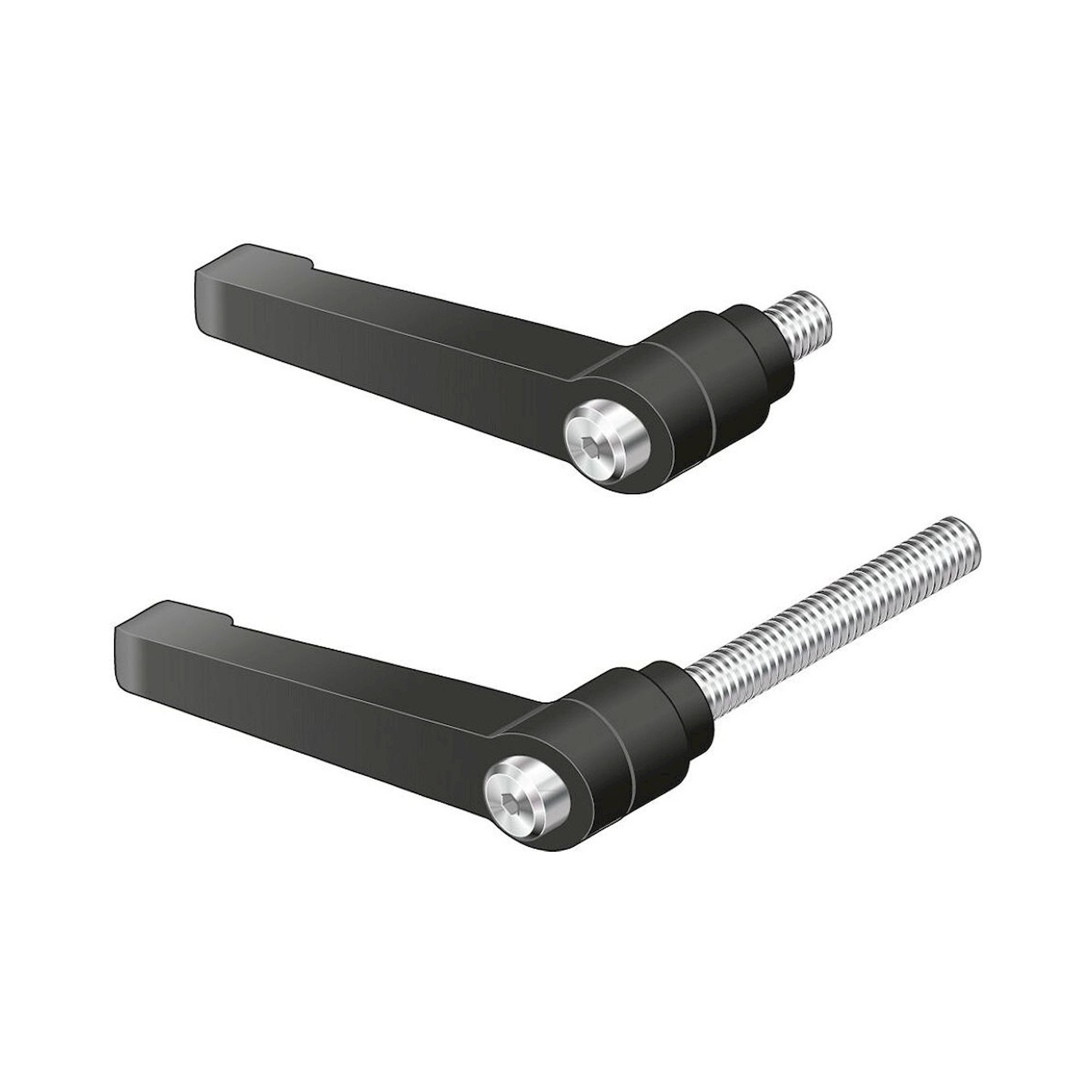

| Recommended accessories | Clamping lever 3842516847 |
| Packaging unit | 1 |
| Weight | 0.304 kg |
| ESD-Ausführung | ESD (antistatic) |
|---|---|
| Hersteller-Nr | 3842543401 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Turkey |
| Weight | 0.304000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
