90-degree structural gusset for Bosch Rexroth aluminum profile systems, compatible with slot 8 and 10 mm profiles. The designLINE finish - vibratory-ground diecast aluminum, painted white aluminum RAL 9006 - meets ESD requirements for electrostatic-protected assembly areas. The set ships ready to install with all fastening hardware included: four DIN 7984 M6x14 cylinder head screws, four T-nuts, one T-bolt M8x20, and one flange nut M8.
Gusset 60x60 designLINE, Slot 8/10, ESD, White Aluminum RAL 9006, Set with Fastening Material - Bosch Rexroth 3842551610
BOSCH REXROTH
Original product
Net price (excl. VAT)
€12.53
Item
BRR-3842551610
Manufacturer no.
3842551610
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842551610
Country of originGermany
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842551610
The 60x60 designLINE gusset connects aluminum profiles at 90 degrees and fits both slot 8 and slot 10 mm systems. Diecast aluminum, vibratory ground and painted in white aluminum RAL 9006, it integrates cleanly into designLINE installations and is rated for ESD-protected workplaces. All fastening hardware is included - no separate order required.
- Bending moment up to 370 Nm (axis 2) and 320 Nm (axis 1) - rigid, load-bearing joints
- Torsional moment 110 Nm - reliable under dynamic and shear loading
- ESD-rated - suitable for electrostatic discharge-protected assembly environments
- designLINE finish - vibratory-ground and painted, white aluminum RAL 9006
- Complete set - all fastening hardware included, ready to install

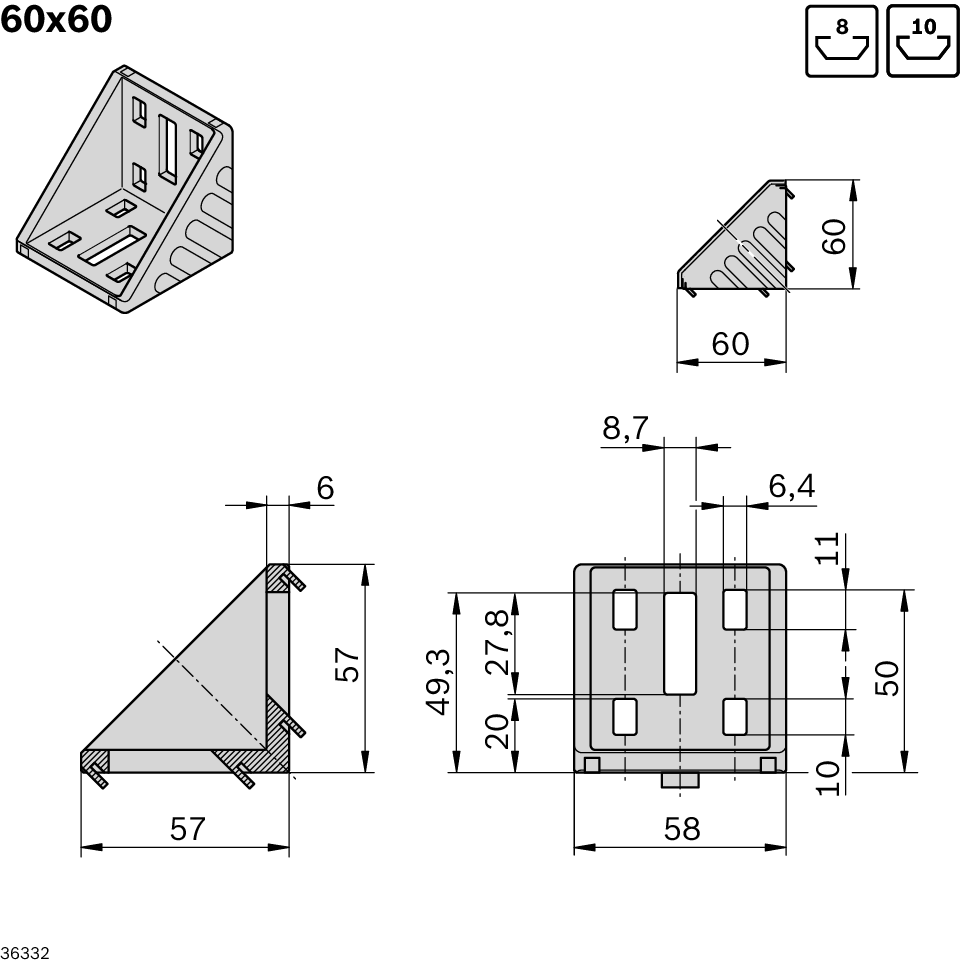

Technical data
| Property | Value |
|---|---|
| Dimensions | 60x60 mm |
| Profile slot | 8, 10 mm |
| Material | Diecast aluminum, vibratory ground and painted |
| Color | White aluminum RAL 9006 |
| ESD | yes |
| designLINE | yes |
| Bending moment 1 | 320 Nm |
| Bending moment 2 | 370 Nm |
| Torsional moment | 110 Nm |
| Fastening material | 4x cylinder head screw DIN 7984 M6x14, 4x T-nut slot 8 M6, 1x T-bolt M8x20, 1x flange nut M8 |
| Fastening material note | Steel, galvanized |
| Scope of delivery | Bracket designLINE, incl. fastening material |
| Recommended accessories | Intermediate element slot 10 mm (3842523537), cover cap 60x60 signal gray (3842548852), cover cap 60x60 black (3842548853) |
| Weight | 0.166 kg |
| Norm | DIN 7984 |
|---|---|
| ESD version | ESD (antistatic) |
| Hersteller-Nr | 3842551610 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.166120 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
