Swivel Bearing 45x45, designLINE, ESD, Slot 10 - Bosch Rexroth 3842554416

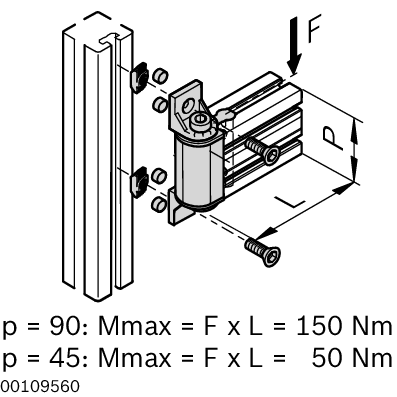

Swivel Bearing 45x45, designLINE, ESD, Slot 10 - Bosch Rexroth 3842554416 Dimensional drawing 3842554416

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Swivel Bearing 45x45, designLINE, ESD, Slot 10 - Bosch Rexroth 3842554416

Bosch Rexroth ✓ Original product Brand new Made in Germany

The 45x45 swivel bearing connects two aluminum profiles at a freely adjustable angle for frame and fixture construction. This designLINE version in white aluminum (RAL 9006) is ESD-capable and handles a bending moment of 50 Nm. Fastening material and cover caps are included.

Net
€37.76
excl. VAT
Item BRR-3842554416
Manufacturer no. 3842554416
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The 45x45 swivel bearing connects two aluminum profiles at a freely adjustable angle for frame and fixture construction. It belongs to the designLINE range in white aluminum (RAL 9006) and is ESD-capable.

  • Freely adjustable swivel angle between two profiles
  • ESD-capable for applications with electrostatic requirements
  • Withstands a bending moment of 50 Nm
  • Fastening material and cover caps included in delivery

Technical data

Profile slot10
Modular dimension45 mm
Dimensions45x45
Dimension [p]45 mm
Bending moment 150 Nm
ESDyes
ColorWhite aluminum (RAL 9006)
designLINEyes
MaterialDiecast zinc, painted
Fastening material2x countersunk screw DIN7991-M8x20, 2x T-nut groove 10 M8 (steel, galvanized)
Cover capPP, gray
Scope of deliveryincl. cover caps, bolt connectors, fastening material
Packaging unit1
Weight0.512 kg
ManufacturerBosch Rexroth
Hersteller-Nr3842554416
Zolltarifnummer83024900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
ESD versionTEC
NormDIN 7991
