Support arm joint 40x40, diecast zinc, ESD, slot 10 - Bosch Rexroth 3842554420
Bosch Rexroth
✓ Original product Brand new Made in Germany

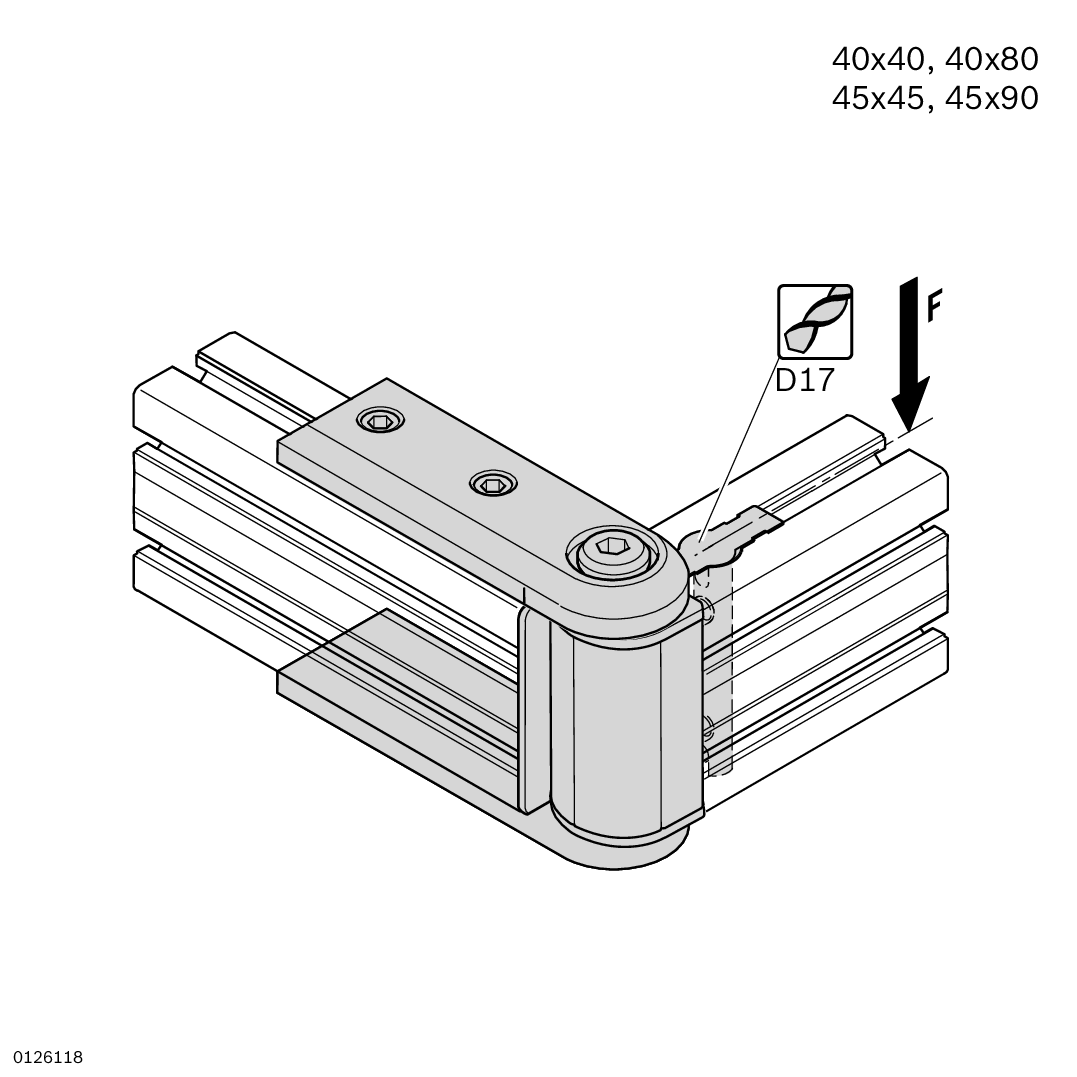

Diecast zinc support arm joint for the articulated connection of 40x40 profiles on a 40 mm modular grid. ESD-capable and rated for a 40 Nm bending moment. Supplied complete with fastening material for profile slot 10.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth support arm joint 40x40 connects 40x40 series profiles in an articulated way and is intended for building support arms and adjustable structures on a 40 mm modular dimension. It is aimed at designers of workstation and assembly systems who need a stable, ESD-capable connection.
- ESD-capable for applications with electrostatic discharge requirements
- Diecast zinc body rated for a bending moment of 40 Nm
- Supplied complete with cover caps, bolt connectors and fastening material for profile slot 10
Technical data
| Modular dimension | 40 mm |
|---|---|
| Profile slot | 10 |
| Dimensions | 40x40 |
| Dimension [p] | 40 mm |
| ESD | yes |
| Bending moment 1 | 40 Nm |
| Material | Diecast zinc |
| Material information | Support arm joint: Diecast zinc; Fastening material: Steel, galvanized; Cover cap: PP, signal gray |
| Fastening material | 4x cylinder head screw ISO4762-M6x16, 4x T-nut groove 10 M6 |
| Scope of delivery | Incl. cover caps, bolt connectors, fastening material |
| Packaging unit | 1 |
| Weight | 0.71 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842554420 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN ISO 4762 |
