Support Arm Joint 45x45, Painted Diecast Zinc, ESD, designLINE, Slot 10 - Bosch Rexroth 3842554432
Bosch Rexroth
✓ Original product Brand new Made in Germany
Support arm joint from the designLINE series for connecting support arms at an angle. Made of painted diecast zinc in white aluminum (RAL 9006), ESD-capable and designed for profile slot 10. Rated up to 50 Nm bending moment.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth support arm joint 45x45 from the designLINE series connects support arms and profiles when building workstations and machine frames. It is ESD-capable and therefore suitable for use in electrostatically protected areas.
- Joint connection in 45 mm modular dimension for 45x45 profiles
- ESD-capable for electrostatically protected work areas
- Rated up to 50 Nm bending moment
- Supplied incl. cover caps, bolt connectors and fastening material
Technical data
| Dimensions | 45x45 |
|---|---|
| Profile slot | 10 |
| Modular dimension | 45 mm |

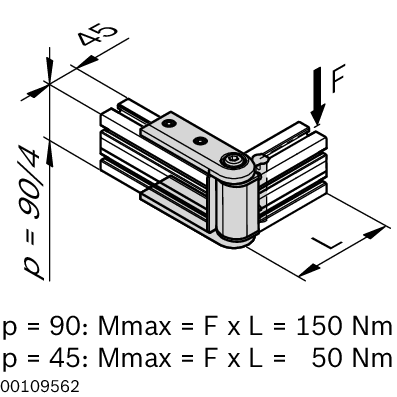

| Dimension [p] | 45 mm |
| Bending moment 1 | 50 Nm |
| ESD | yes |
| designLINE | yes |
| Color | White aluminum (RAL 9006) |
| Material | Diecast zinc, painted |
| Fastening material | 4x cylinder head screw ISO4762-M6x16, 4x T-nut groove 10 M6 |
| Material information | Fastening material: steel, galvanized; cover cap: PP, signal gray |
| Scope of delivery | Incl. cover caps, bolt connectors, fastening material (FS) |
| Packaging unit | 1 |
| Weight | 0.728 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842554432 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN ISO 4762 |
