Bolt Connector Profile Slot 10, 45 mm, Galvanized, ESD-Conductive - Bosch Rexroth 3842555584

Name: Bolt Connector Profile Slot 10, 45 mm, Galvanized, ESD-Conductive - Bosch Rexroth 3842555584
Brand: Bosch Rexroth
SKU: BRR-3842555584
Price: 6.48 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Connects two slot-10 profiles with a positive-locking, conductive joint for ESD-compliant assembly structures. Made from galvanized steel with a PP centering pin; installation requires drilling jig 3842528574. Supplied in packs of 10 including 2 cover caps - ESD-rated cover cap 3842551055 available separately.

Net

€6.48

excl. VAT

Item BRR-3842555584

Manufacturer no. 3842555584

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

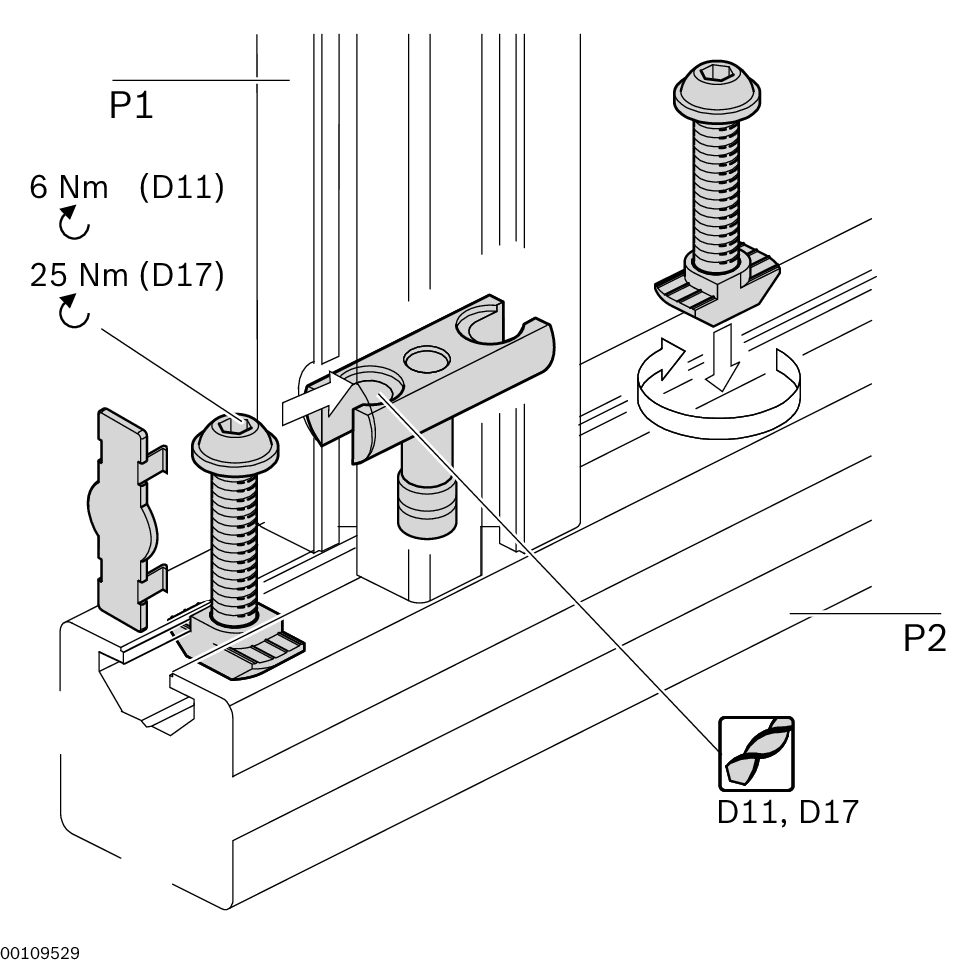

The Bolt Connector 10 D17x45 joins two aluminum profiles with slot 10 in a precisely centered, conductive connection - making it suitable for ESD-protection concepts in manual assembly lines. Installation requires drilling jig 3842528574. Two PP cover caps are included; for fully ESD-compliant covering, order ESD cover cap 3842551055 separately.

Conductive profile-to-profile connection for slot 10 - supports ESD earthing continuity in assembly structures
Galvanized steel construction - durable and corrosion-resistant for continuous production use
Integrated PP centering pin ensures accurate, repeatable positioning
Pack of 10 with 2 cover caps included - cost-effective for series installation
Note: included cover caps are not ESD-compatible; use article 3842551055 for ESD-rated covering

Technical data

Attribute	Value
Profile slot	10
Profile slot P1/P2	10 / 10
Length L	45 mm
Length l2	28 mm
Material	Steel, galvanized
Material information	Bolt connector: steel, galvanized; centering pin and cover caps: PP
Color	Signal gray
ESD	Yes (conductive connection; included cover caps are not ESD-compatible)
Packaging unit	10 pieces
Scope of delivery	Incl. 2 cover caps
Required accessories	Drilling jig 3842528574
Recommended accessories	Cover cap ESD 3842551055
Weight	0.076 kg
Manufacturer	Bosch Rexroth
Hersteller-Nr	3842555584
Zolltarifnummer	73269098
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Lenght	45 mm
ESD version	ESD (antistatic)
