Heavy-Duty Connector 180x180 Dynamic Load, Cast Iron Galvanized, Slot 10 - Bosch Rexroth 3842555616
Bosch Rexroth
✓ Original product Brand new Made in Germany
Heavy-duty angle connector for absorbing high static and dynamic forces in aluminium profile structures with 45 mm modular dimension. Made from galvanized cast iron, it handles bending moments up to 5600 Nm and torsional moments up to 1400 Nm. Connection is possible in any position; a mounting kit (Art. 3842548955) is required separately.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

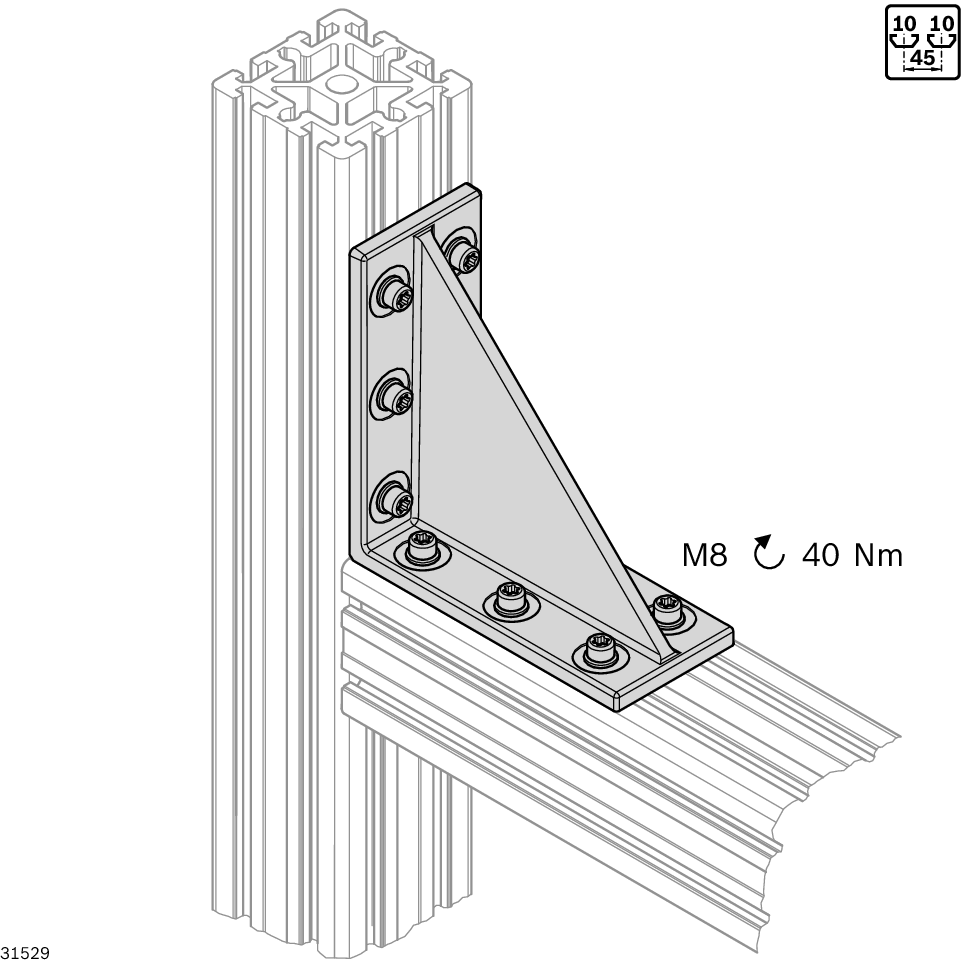

The Heavy-Duty Connector 180x180 Dynamic Load joins aluminium profiles in the 90x90, 90x180 and 90x360 series with a force-fit connection rated for both static and cyclically changing dynamic loads. No profile surface finishing is required, and the bracket can be installed in any orientation.
- Bending moments 1 and 2 each 5600 Nm - handles high transverse loads in both principal directions
- Torsional moment 1400 Nm - secure even under twisting loads
- Galvanized cast iron - corrosion-resistant and dimensionally stable
- ESD-suitable - compatible with electrostatically sensitive production environments
- Static and dynamic load verification available via MTpro engineering software
Technical data
| Specification | Value |
|---|---|
| Type | Heavy-duty connector 180x180 Dynamic Load |
| Profile slot | 10 |
| Modular dimension | 45 mm |
| Bending moment 1 | 5600 Nm |
| Bending moment 2 | 5600 Nm |
| Torsional moment | 1400 Nm |
| Material | Cast iron, galvanized |
| ESD | Yes |
| Scope of delivery | Bracket (mounting kit Art. 3842548955 required separately) |
| Focus profiles | 90x90, 90x180, 90x360 |
| Weight | 2.79 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842555616 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
