Anodized aluminum conveyor section profile for the TS 2plus transfer system, supplied in variable lengths from 60 to 6000 mm. Profile slot 10, natural color, with high area moment of inertia for rigid track guidance. Compatible with roller elements and cross connector QV 2.

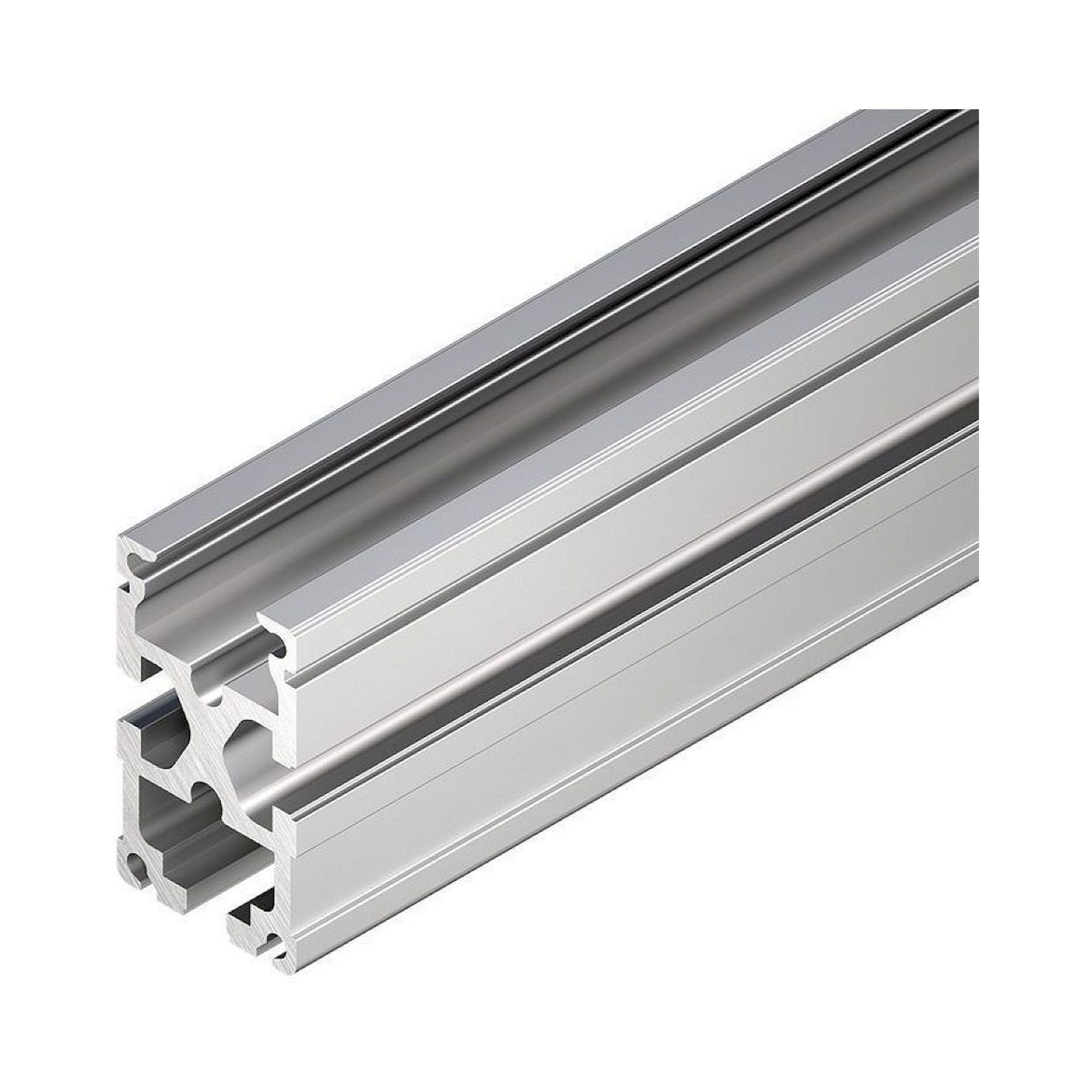

Conveyor Section Profile SP 2/BH, 1000 mm, Anodized Aluminum - Bosch Rexroth 3842990409-1000
BOSCH REXROTH
Original product
Net price (excl. VAT)
€74.55
Item
BRR-3842990409-1000
Manufacturer no.
3842990409-1000
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842990409-1000
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842990409-1000
The conveyor section profile SP 2/BH is an anodized aluminum profile for building transport sections in the TS 2plus transfer system. Supplied in variable lengths, it allows flexible line planning between 60 mm and 6000 mm.
- Variable length from 60 mm to 6000 mm - high planning flexibility
- Anodized aluminum - corrosion-resistant and durable
- Profile slot 10 for straightforward attachment of add-on components
- High area moment of inertia (Ix = 53.7 cm⁴) for rigid, low-deflection track sections
- Recommended accessories: roller elements and cross connector QV 2
Technical data
| Property | Value |
|---|---|
| Article number | 3842990409-1000 |
| Condition on delivery | Variable length |
| Material | Aluminum, anodized |
| Color | Natural |
| Profile slot | 10 |
| Length min. (L min) | 60 mm |
| Length max. (L max) | 6000 mm |
| Mass (m) | 3.3 kg/m |
| Profile surface (A) | 12.4 cm² |
| Area moment of inertia X (Ix) | 53.7 cm⁴ |
| Moment of resistance X (Wx) | 14 cm³ |
| Area moment of inertia Y (Iy) | 28.6 cm⁴ |
| Moment of resistance Y (Wy) | 13.8 cm³ |
| Recommended accessories | Roller elements, cross connector QV 2 |
| ESD version | TEC |
|---|---|
| Hersteller-Nr | 3842990409-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
