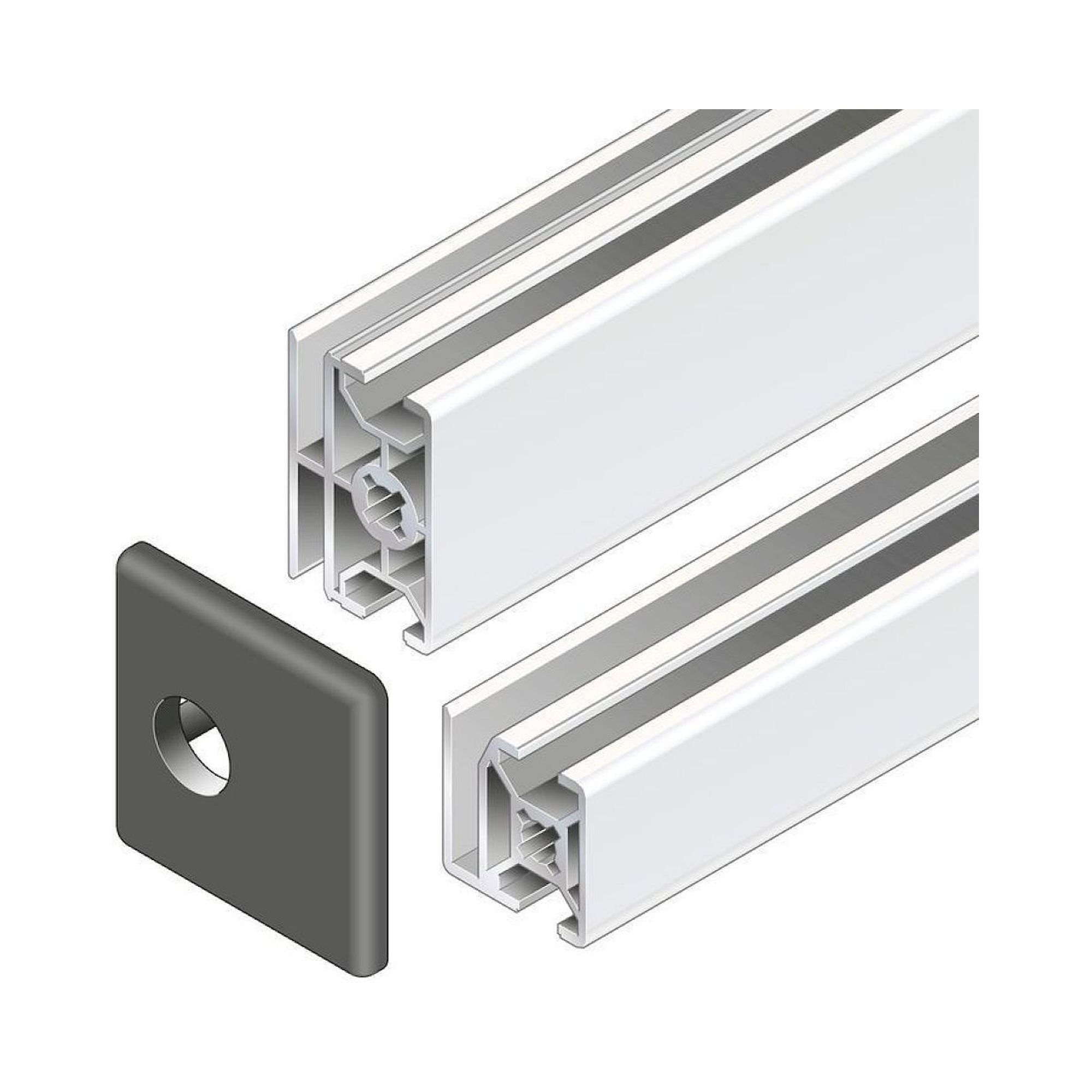

![Rahmenprofil 30x30 WG30 2x[M8+7,8] für EcoSafe-Schutzgitter, 1000 mm - Bosch Rexroth 3842992977-1000](https://boxic24.com/media/catalog/product/d/c/dc_ecommerce_big_jpg_7729.jpg?width=700&height=700&store=english&image-type=image)
The product may differ from the illustration
Anodized aluminum frame profile (30x30 mm, slot 8) for assembling EcoSafe wire guard panels and partitions. Two M8 threads and 7.8 mm through-holes per profile provide a rigid, positive connection to the wire grille and adjacent frame members. Standard delivery length 1000 mm; cut lengths from 100 to 6000 mm available.
Rahmenprofil 30x30 WG30 2x[M8+7,8] für EcoSafe-Schutzgitter, 1000 mm - Bosch Rexroth 3842992977-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€50.81 €42.70
Item BRR-3842992977-1000
Manufacturer no. 3842992977-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842992977-1000
Country of originGermany
Customs tariff number76109090
ConditionNew
Artikel
BRR-3842992977-1000
The 30x30 WG30 frame profile is the structural backbone of EcoSafe safety guard walls and machine partitions in the Bosch Rexroth modular system. Anodized aluminum construction combines low weight with high bending stiffness and accepts standard woven wire grille inserts.
- Two M8 threaded bores and 7.8 mm clearance holes per profile for secure, backlash-free frame joints
- Slot 8 geometry integrates directly with the Bosch Rexroth profile building system - no adapter hardware needed
- Anodized finish: corrosion-resistant, durable and clean in appearance for open production environments
- Flexible lengths from 100 mm to 6000 mm on request; standard length 1000 mm
- 0.9 kg/m linear mass - easy to handle manually and reposition during line layout changes
Technical data
| Parameter | Value |
|---|---|
| Profile cross-section | 30 x 30 mm |
| Profile system | WG30 |
| Profile slot | 8 |
| Threaded bores | 2 x M8 |
| Clearance bores | 2 x 7.8 mm |
| Length (standard delivery) | 1000 mm |
| Length min / max | 100 mm / 6000 mm |
| Delivery unit | 1 piece |
| Material | Aluminum, anodized |
| Mass | 0.9 kg/m |
| Profile surface [A] | 3.2 cm² |
| Area moment of inertia Ix | 2.5 cm⁴ |
| Moment of resistance Wx | 1.6 cm³ |
| Area moment of inertia Iy | 3.0 cm⁴ |
| Moment of resistance Wy | 1.9 cm³ |
| Required accessories | Central bolt, Woven wire grille, Spring clamping elements |
| ESD-Ausführung | TEC |
|---|---|
| Hersteller-Nr | 3842992977-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Zolltarifnummer | 76109090 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
