Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.

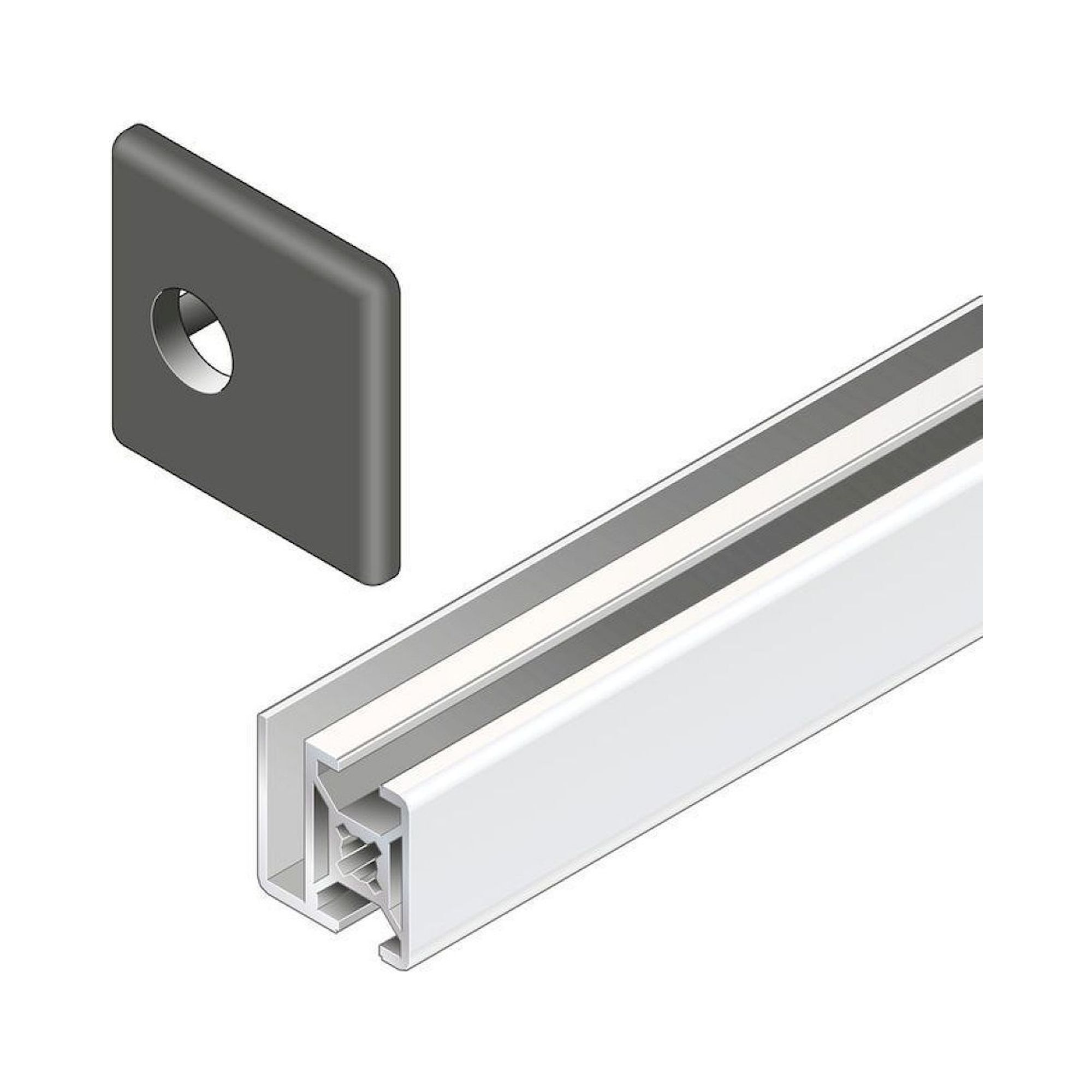

Anodized aluminum frame profile 30x30 mm for the Bosch Rexroth EcoSafe WG40 safety guard system, supplied at 1000 mm and cuttable from 100 to 6000 mm. Two M8 connecting channels with 7.8 mm bore enable rigid frame corners and wall connections; assembly requires central bolt, woven wire grille, and spring clamping elements.
Frame Profile 30x30 WG40 2x[M8+7.8], 1000 mm - Bosch Rexroth 3842992978-1000
BOSCH REXROTH
Original product
Net price (excl. VAT)
€35.32
Item
BRR-3842992978-1000
Manufacturer no.
3842992978-1000
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842992978-1000
Country of originGermany
Customs tariff number76109090
ConditionNew
Artikel
BRR-3842992978-1000
The Frame Profile 30x30 WG40 is the primary structural element for guard panel walls in the Bosch Rexroth EcoSafe system. The anodized aluminum section accepts woven wire grilles securely and assembles tool-efficiently using a central bolt and spring clamping elements.
- 30x30 mm cross-section, slot 8 - fully compatible with all EcoSafe WG40 accessories
- Two M8 connecting channels with 7.8 mm bore for rigid corner joints and wall attachment
- Flexible cut-to-length: available from 100 to 6000 mm, delivered as 1 piece
- Anodized aluminum construction - corrosion-resistant, lightweight and durable
- Area moments of inertia lx 2.4 cm⁴ / ly 2.9 cm⁴ for dimensionally stable frame structures
Technical data
| Property | Value |
|---|---|
| Profile cross-section | 30 x 30 mm |
| Profile slot | 8 |
| Length min. [L min] | 100 mm |
| Length max. [L max] | 6000 mm |
| Delivery unit | 1 piece |
| Material | Aluminum, anodized |
| Mass [m] | 0.9 kg/m |
| Profile surface [A] | 3.2 cm² |
| Area moment of inertia [lx] | 2.4 cm⁴ |
| Moment of resistance [Wx] | 1.5 cm³ |
| Area moment of inertia [ly] | 2.9 cm⁴ |
| Moment of resistance [Wy] | 1.8 cm³ |
| Required accessories | Central bolt, woven wire grille, spring clamping elements |
| ESD version | TEC |
|---|---|
| Hersteller-Nr | 3842992978-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Zolltarifnummer | 76109090 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
