Workstation Material Shuttle, Configurable, 0-4 Shelves, ESD Option - Bosch Rexroth 3842998231
The Bosch Rexroth 3842998231 workstation material shuttle provides flexible material presentation directly at the assembly station, with 0 to 4 adjustable shelves. Shelf height, offset, and tilt are freely configurable to minimise reach distances and support ergonomic workflows. Available fully assembled or as a self-assembly kit, with an optional ESD-conductive version.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

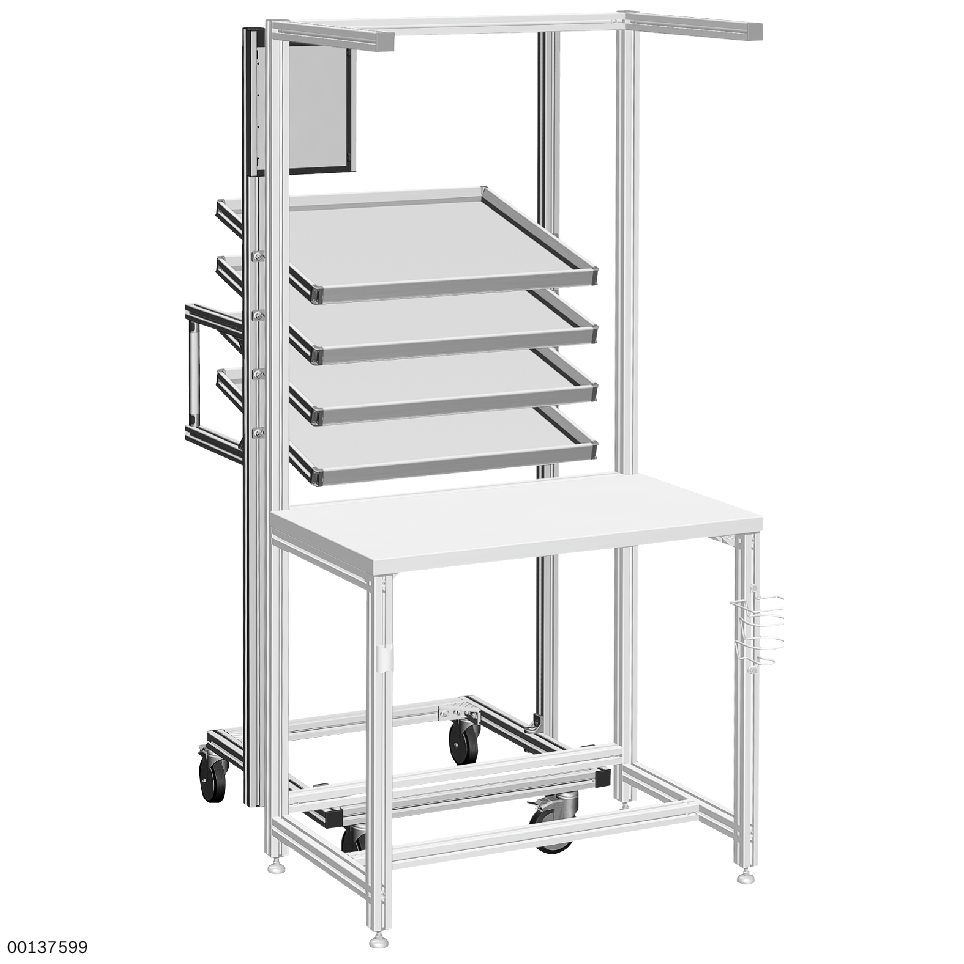

The workstation material shuttle (art. 3842998231) from Bosch Rexroth is a configurable supply trolley designed for direct use at the assembly workstation or in conjunction with the EcoFlow manual linking system. Ball-bearing swivel castors with locking devices allow rapid positioning; quick exchange of pre-commissioned shuttles keeps changeover times short.
- 0 to 4 material shelves in aluminium, polypropylene, or SB board - selectable per application
- Shelf width 250 to 1480 mm, depth 410 to 1220 mm - scalable to workstation dimensions
- Shuttle height 600 to 2200 mm, work surface height 410 to 1500 mm - adjustable
- Shelf height, offset, and tilt adjustable for optimised ergonomic reach
- ESD-conductive version available (max. total load 4000 N vs. 4200 N standard)
- Supplied fully assembled or as a kit for self-assembly
- Basic shelves include lettering clip; 7 optional information board types available
- Profile slot 10 - compatible with the Bosch Rexroth workstation system
Technical data
| Parameter | Value |
|---|---|
| Article number | 3842998231 |
| Version | Disassembled parts, assembled |
| Shuttle height min / max | 600 / 2200 mm |
| Work surface height min / max | 410 / 1500 mm |
| Shelf width min / max | 250 / 1480 mm |
| Shelf depth min / max | 410 / 1220 mm |
| Number of material shelves | 0 - 4 |
| Shelf material | Aluminium, PP, SB (3 variants) |
| Max. load aluminium shelf (1480 x 1220 mm) | 700 N (distributed load) |
| Max. load PP/SB shelf (1000 x 1000 mm) | 250 - 360 N (distributed load) |
| Max. total weight (standard) | 4200 N |
| Max. total weight (ESD) | 4000 N |
| Castors | Ball-bearing swivel, with locking device |
| ESD conductivity | yes / no (configurable) |
| Profile slot | 10 |
| Information boards | 7 different types (optional) |
| Required accessory | Rubber profile (impact protection) |
| Weight | 12.01 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842998231 |
| Zolltarifnummer | 94032080 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
