Belt Section BS 2 with Toothed Belt Drive, ESD-Suitable, up to 6000 mm - Bosch Rexroth 3842999716

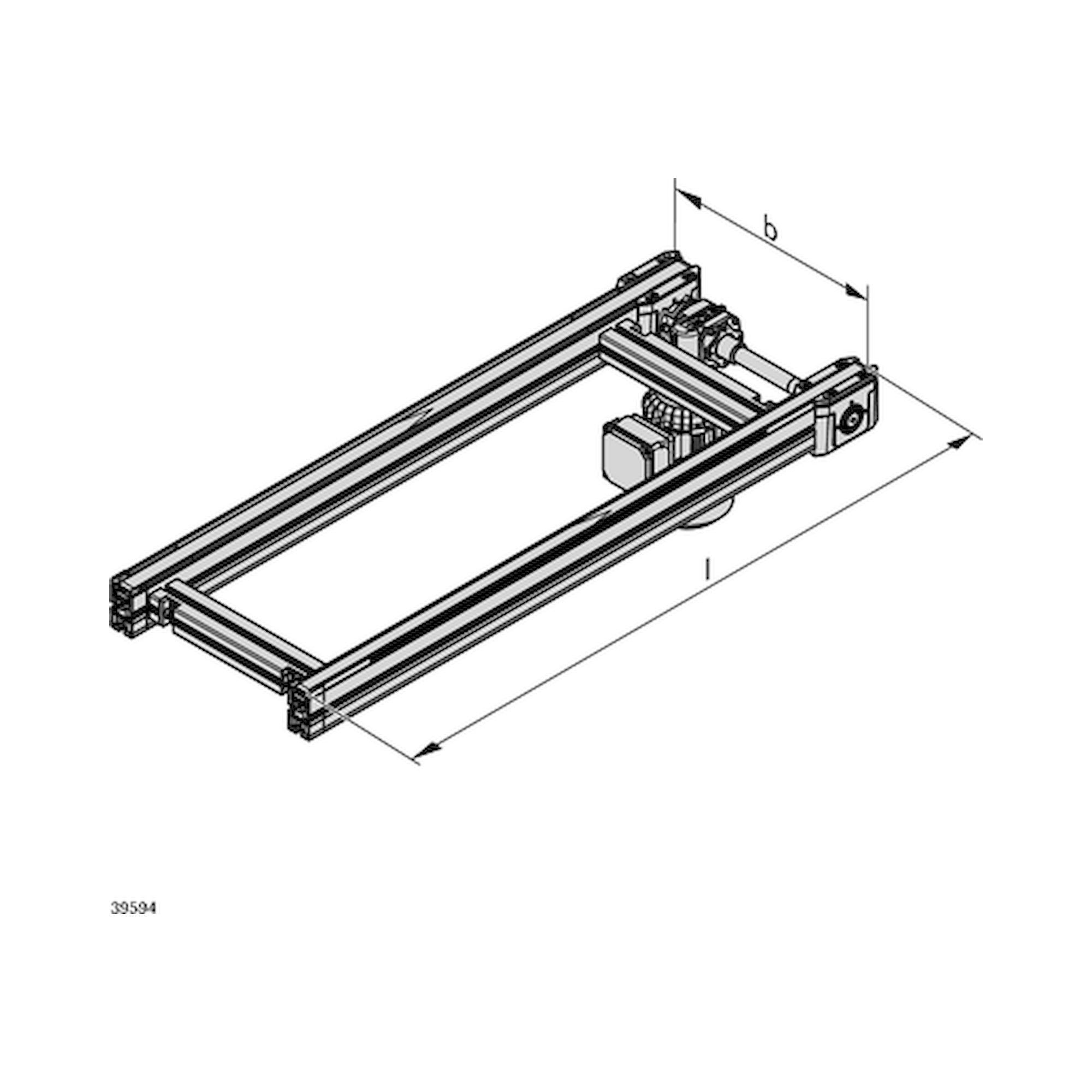

Ready-to-operate conveyor section with built-in toothed belt drive for transporting workpiece pallets longitudinally or transversely in assembly systems. Supports accumulation and reversible operation; motor mounting left, right or central. ESD-suitable, ISO class 7 cleanroom rating, length 240 to 6000 mm, track width 160 to 1200 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The BS 2 belt section is a fully assembled, ready-to-operate conveyor section with its own toothed belt drive for workpiece pallet transport in assembly lines. It handles longitudinal conveying and - combined with two HQ 2 lift transverse units - transverse conveying between parallel conveyor sections. The toothed belt is qualified for use in ESD-protected areas (EPA).
- Accumulation operation possible: section load up to 60 kg (central motor mount MA = M with b = 160 mm: max. 30 kg)
- Reversible operation possible

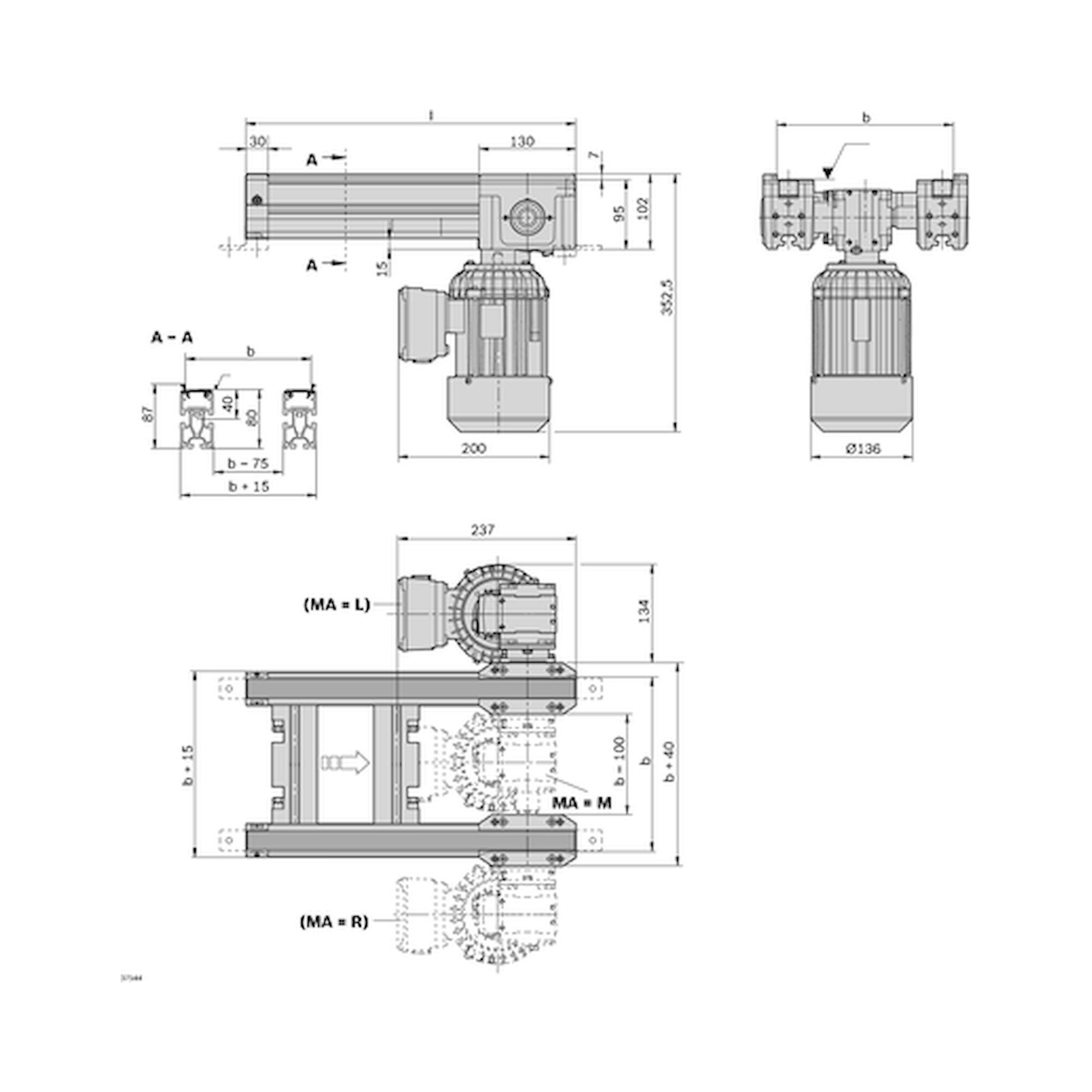

- Motor mounting left, right or central
- Motor connection via cable/plug or terminal box
- Drive side attaches to the input of KE 2/O; when mounted at a curve output, acts as cam drive
- Suitable for mounting between KE 2 and linear section LS 2
- Compatible with WT 2, WT 2/E, WT 2/LS and WT 2/F (wear pad PA)
- Individual width variants available; special versions on request
Technical data
| Property | Value |
|---|---|
| Condition on delivery | Assembled |
| ESD | Yes |
| Length min. / max. | 240 mm / 6000 mm |
| Track width min. / max. | 160 mm / 1200 mm |
| Preferred values length/width [mm] | 160, 240, 320, 400, 480, 640, 800, 1040, 1200 |
| Nominal speed | 6 / 9 / 12 / 15 / 18 m/min (0 m/min without motor and gearbox) |
| Section load in accumulation operation | 60 kg (MA = M, b = 160 mm: max. 30 kg) |
| Conveyor medium | Toothed belt, EPA-suitable |
| Motor connection | Cable/plug (S) or terminal box (K) |
| Guide profile | Polyamide |
| Glide profile | Polyamide |
| Section profile | Aluminum, natural; anodized |
| Dry room | <1 %rF |
| Clean room classification | ISO class 7 |
| Weight | approx. 50 kg |
| Recommended accessories | Section supports SZ 2/..., connection kit |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842999716 |
| Zolltarifnummer | 84283300 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
