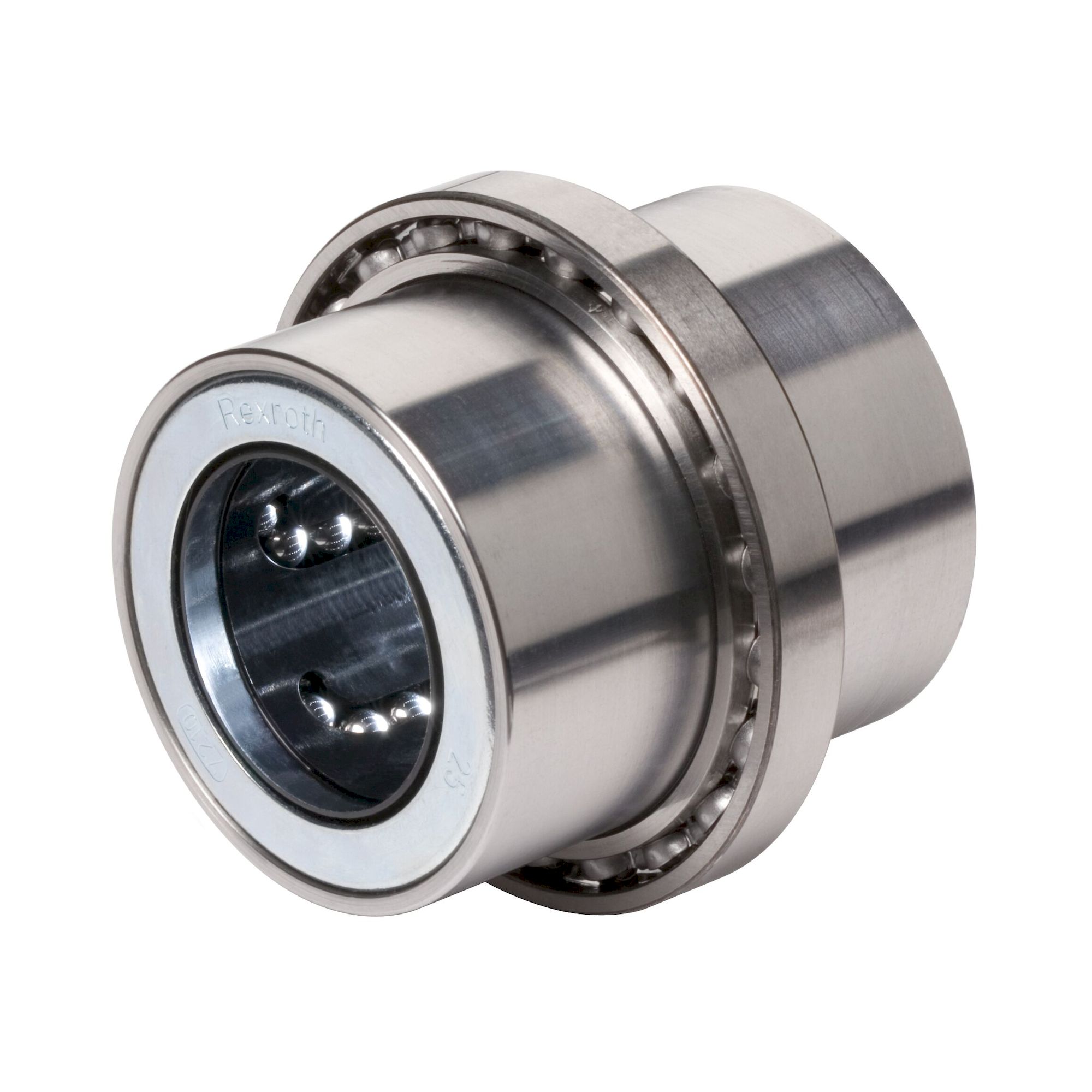

Rotations Kb KBROR-12-DD - Bosch Rexroth R066321200
Rotary motion LB, R-12, with two seals
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Rotary motion linear bushing
With deep-groove ball bearing
Shaft diameter d = 12
With two seals
- Linear bushings with deep-groove ball bearing
- Precise guiding at high load rating
- High speed and low friction
- For linear applications with additional rotary motion
- For grip and swivel functions
- For winding applications
- Maintenance-free sealed shields
- segmental linear bushings (for shaft diameters 12 to 40).
- Steel sleeve (for shaft diameters 12 to 40).
- External seals (for shaft diameters 12 to 40)
- Pressed-on deep-groove ball bearing
- standard linear bushing (for shaft diameters 5, 8, 50, 60 and 80)
- Integrated wiper seals (for shaft diameters 5, 8, 50, 60 and 80)
Technical data
| Product attributes | |
|---|---|
| Shaft diameter d [mm] | 12 |
| Version | Standard |
| Format of linear bushings | R - With deep-groove ball bearing (series 618) |
| Series | Combined linear and rotary motion (rotation) |
| Seal | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 480 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150 |
| Maximum permissible linear speed vmax [m/s] | 3 |
| Length of linear bushing [mm] | 30 |
| Outer diameter D [mm] | 37 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.09 |
| Static load capacity C0 [N] | 420 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Type | Linear bushing |
| Dimension A (profiled rail systems) [mm] | 7 |
| Dimension B (profiled rail systems) [mm] | 30 |
| Dimension D [mm] | 37 |
| Dimension D1 [mm] | 25 |
| Weight | 0.1 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | R066321200 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
