Glamox 3073553. Architectural Lighting O79-R125 LED 70 HF 832 BLACK

Name: Glamox 3073553. Architectural Lighting O79-R125 LED 70 HF 832 BLACK
Brand: Glamox
SKU: GL-3073553
Price: 166.5 EUR
Availability: InStock

Lead time

4 weeks

€166.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-3073553

Manufacturer Nr.

3073553

O79-R125 LED 70 HF 832 BLACK

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox 3073553. Architectural Lighting O79-R125 LED 70 HF 832 BLACK
€166.50

Excl. 19% VAT , excl. Shipping Cost
Glamox O34700116. Bollard O34 LED 1400 HF 840 500MM 360° ANTHRACITE
€807.00

Excl. 19% VAT , excl. Shipping Cost
Glamox 514045254. Pole O52-380 LED 13000 DALI 840 WBA
€912.75

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Square
Technical Data
1. Minimum ambient temperature (ºC)
  -40
2. Maximum ambient temperature (°C)
  25
3. IK classification
  07
4. IP classification
  65
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  65
3. Lumen per Watt (lm/W)
  16
4. Lamp colour temp (K)
  3200
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  E
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L70 Median useful life LED MaxTa (hr)
  50 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  4
6. Number of luminaires on a 10A MCB type B (80% load)
  31
7. Number of luminaires on a 10A MCB type C (80% load)
  63
8. Number of luminaires on a 16A MCB type B (80% load)
  50
9. Number of luminaires on a 16A MCB type C (80% load)
  100

Optic
1. Material of diffuser
  Tempered glass
2. Diffuser material design
  Frosted
Housing
1. Main body material
  Aluminium
2. Body colour
  Black
3. Main body colour name
  Black

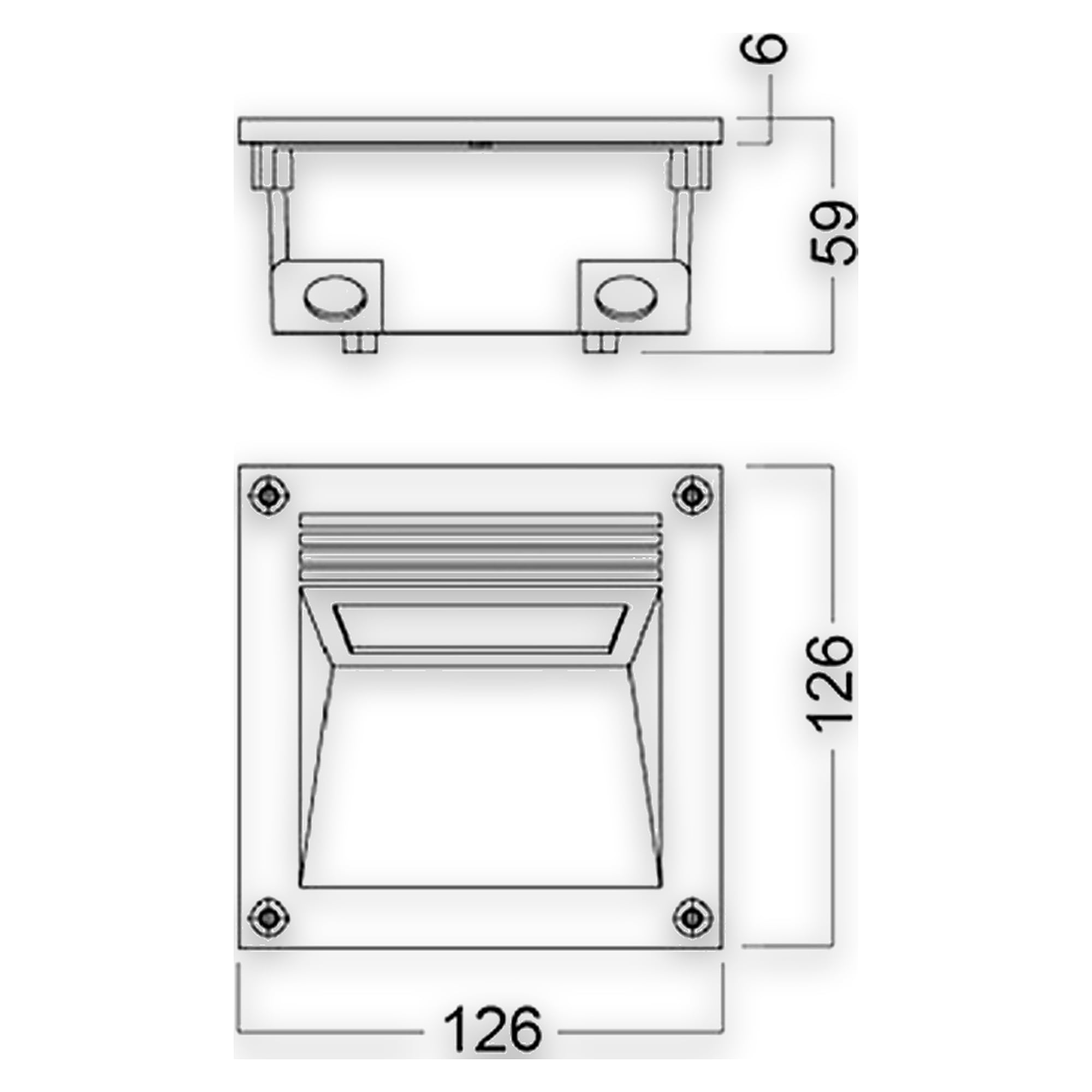

Dimensions
1. Length (mm)
  126
2. Width (mm)
  59
3. Height (mm)
  126
4. Net weight (kg)
  0.70
Termination
1. Termination
  3x2.5mm2 Screw Terminal
Mounting
1. Product mounting
  Wall Recessed
Logistic Data
1. Item gross weight (kg)
  0.76
