Glamox A90212127. Architectural Lighting A90-P2 LED 10000 HF 840 F/OP C4

Name: Glamox A90212127. Architectural Lighting A90-P2 LED 10000 HF 840 F/OP C4
Brand: Glamox
SKU: GL-A90212127
Price: 702.75 EUR
Availability: InStock

Lead time

3 weeks

€702.75

Excl. 19% VAT , excl. Shipping Cost

Article

GL-A90212127

Manufacturer Nr.

A90212127

A90-P2 LED 10000 HF 840 F/OP C4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox A90212127. Architectural Lighting A90-P2 LED 10000 HF 840 F/OP C4
€702.75

Excl. 19% VAT , excl. Shipping Cost
Glamox I50504573. A90-P/i50/i75/i90-P/i95-P SUSPENSION wire 4 M
€15.00

Excl. 19% VAT , excl. Shipping Cost
Glamox A90212129. Architectural Lighting A90-P2 LED 15000 HF 840 F/OP C4
€711.00

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Round
Electrical Data
1. Leakage current (mA)
  0.23
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  81
7. Number of luminaires on a 10A MCB type B (80% load)
  5
8. Number of luminaires on a 10A MCB type C (80% load)
  8
9. Number of luminaires on a 16A MCB type B (80% load)
  8
10. Number of luminaires on a 16A MCB type C (80% load)
  13
Completeness
1. Item is not complete, missing
  Mounting kit for suspension,Optic
Technical Data
1. Minimum ambient temperature (ºC)
  -20
2. Maximum ambient temperature (°C)
  40
3. IP classification
  65
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  10,839
3. Lumen per Watt (lm/W)
  134
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Opal
Housing
1. Body colour
  Black
2. Main body colour name
  Black

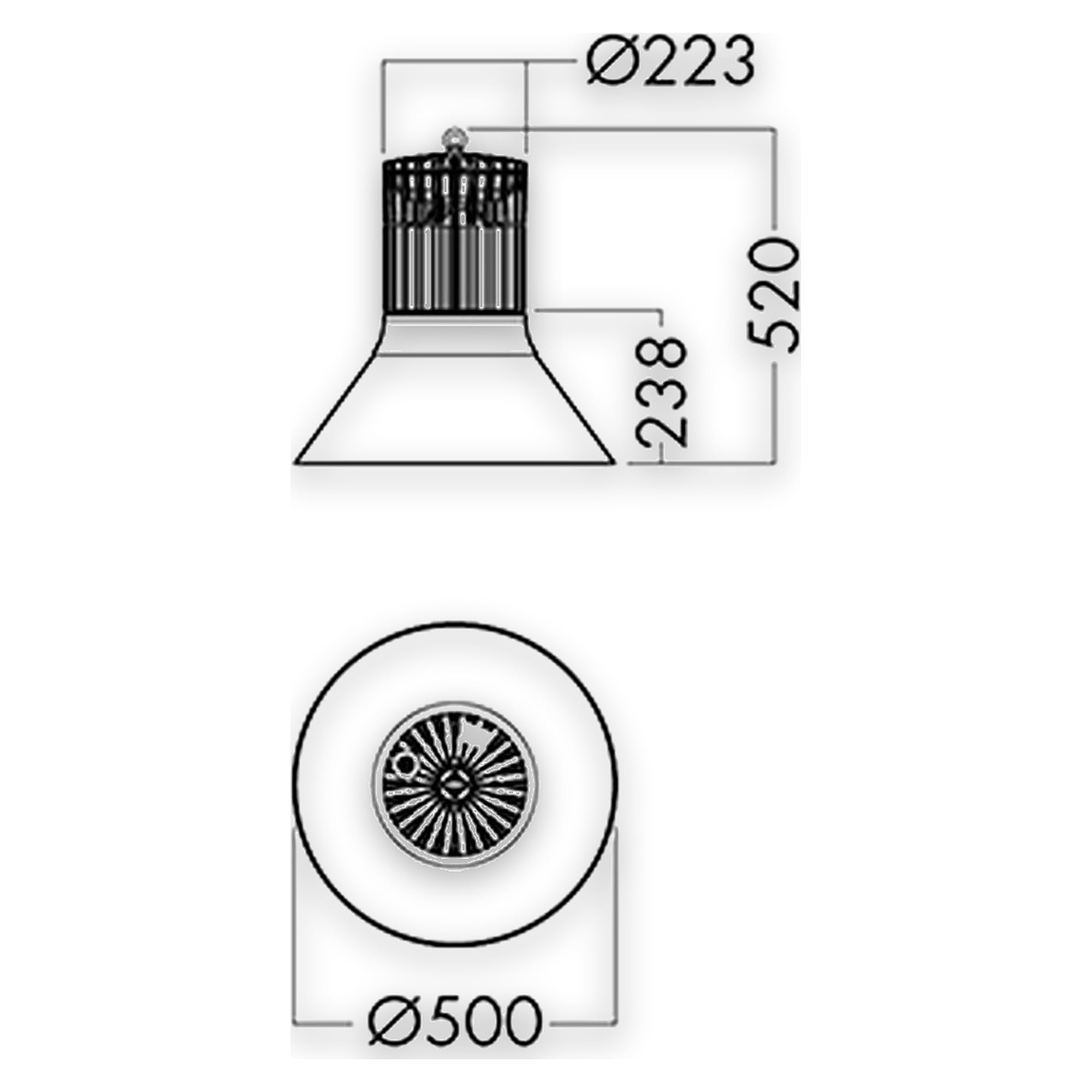

Dimensions
1. Height (mm)
  520
2. Diameter (mm)
  500
3. Net weight (kg)
  7.75
Cable
1. Cable Cross section (mm²)
  1.50
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  4
4. Cable material
  RUBBER
5. No of leads
  3
Mounting
1. Product mounting
  Pendant
Logistic Data
1. Item gross weight (kg)
  8.42
