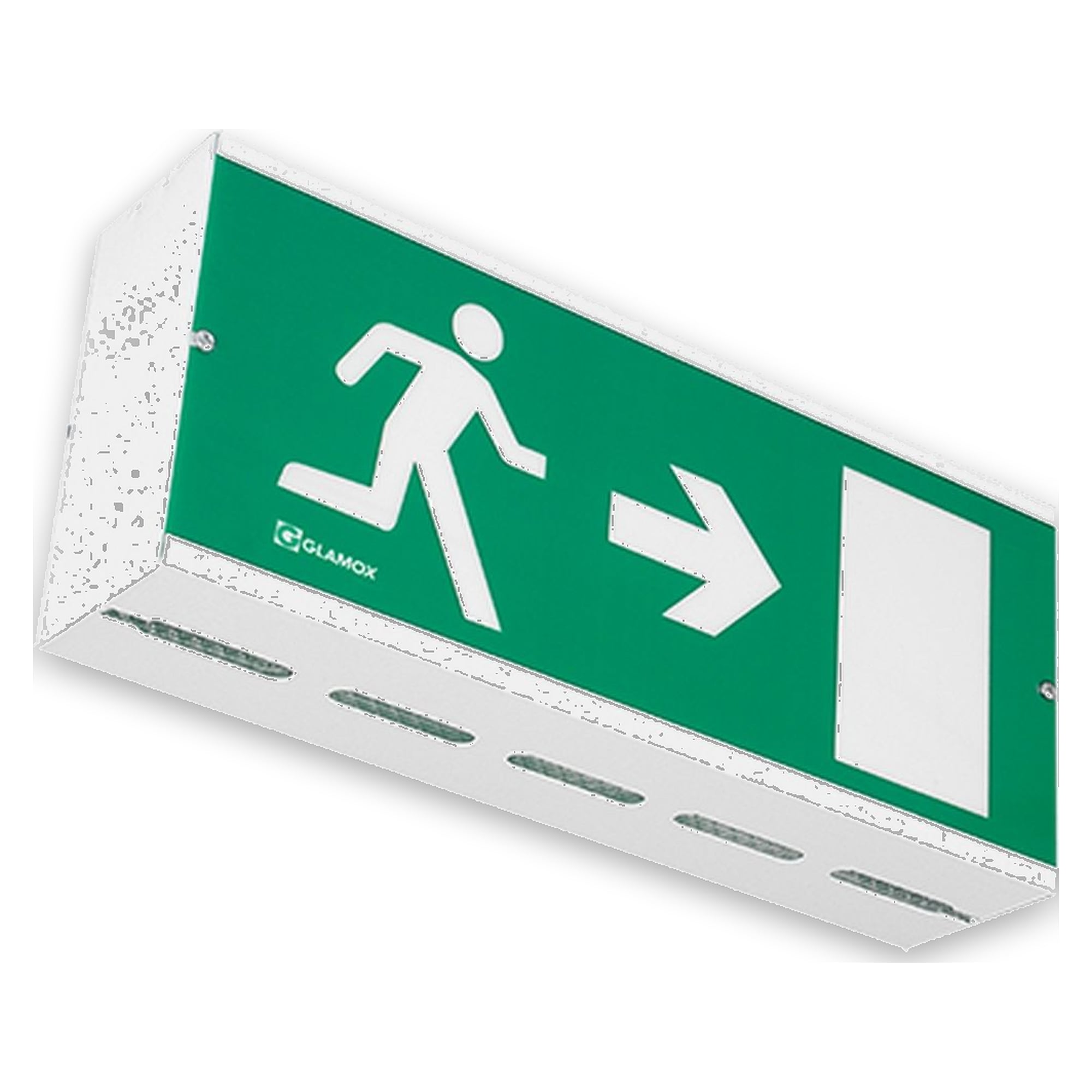

Glamox E30601002. Emergency Lighting E30 30X60 LED E3/S WO SIGN

Name: Glamox E30601002. Emergency Lighting E30 30X60 LED E3/S WO SIGN
Brand: Glamox
SKU: GL-E30601002
Price: 292.5 EUR
Availability: InStock

Lead time

4 weeks

€292.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-E30601002

Manufacturer Nr.

E30601002

E30 30X60 LED E3/S WO SIGN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox E30601002. Emergency Lighting E30 30X60 LED E3/S WO SIGN
€292.50

Excl. 19% VAT , excl. Shipping Cost
Glamox ORT120766. Notlichtleuchten ORTUS-S WH 650 E1/ST CR
€205.50

Excl. 19% VAT , excl. Shipping Cost
Glamox E80110120. E80-S 15x26 L/R LED E/Z
€205.50

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Rectangular
Electrical Data
1. Leakage current (mA)
  0.30
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  13
7. IEC Protection Class
  I
8. Number of luminaires on a 10A MCB type B (80% load)
  12
9. Number of luminaires on a 10A MCB type C (80% load)
  20
10. Number of luminaires on a 16A MCB type B (80% load)
  19
11. Number of luminaires on a 16A MCB type C (80% load)
  31
Completeness
1. Item is not complete, missing
  Legends
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  45
3. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  2
3. Lumen per Watt (lm/W)
  8
4. MacAdam step
  3
5. Energy class light source
  C
Driver / Ballast
1. Number of Driver
  1
Lifetime
1. L70 Median useful life LED MaxTa (hr)
  50 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.70

Emergency
1. Type of emergency
  S = Standard
2. Duration in battery mode (hrs)
  3
3. Charging power consumption (Emg) (W)
  1.50
4. Output in battery mode (%)
  100
5. Reading distance sign (m)
  60
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  White

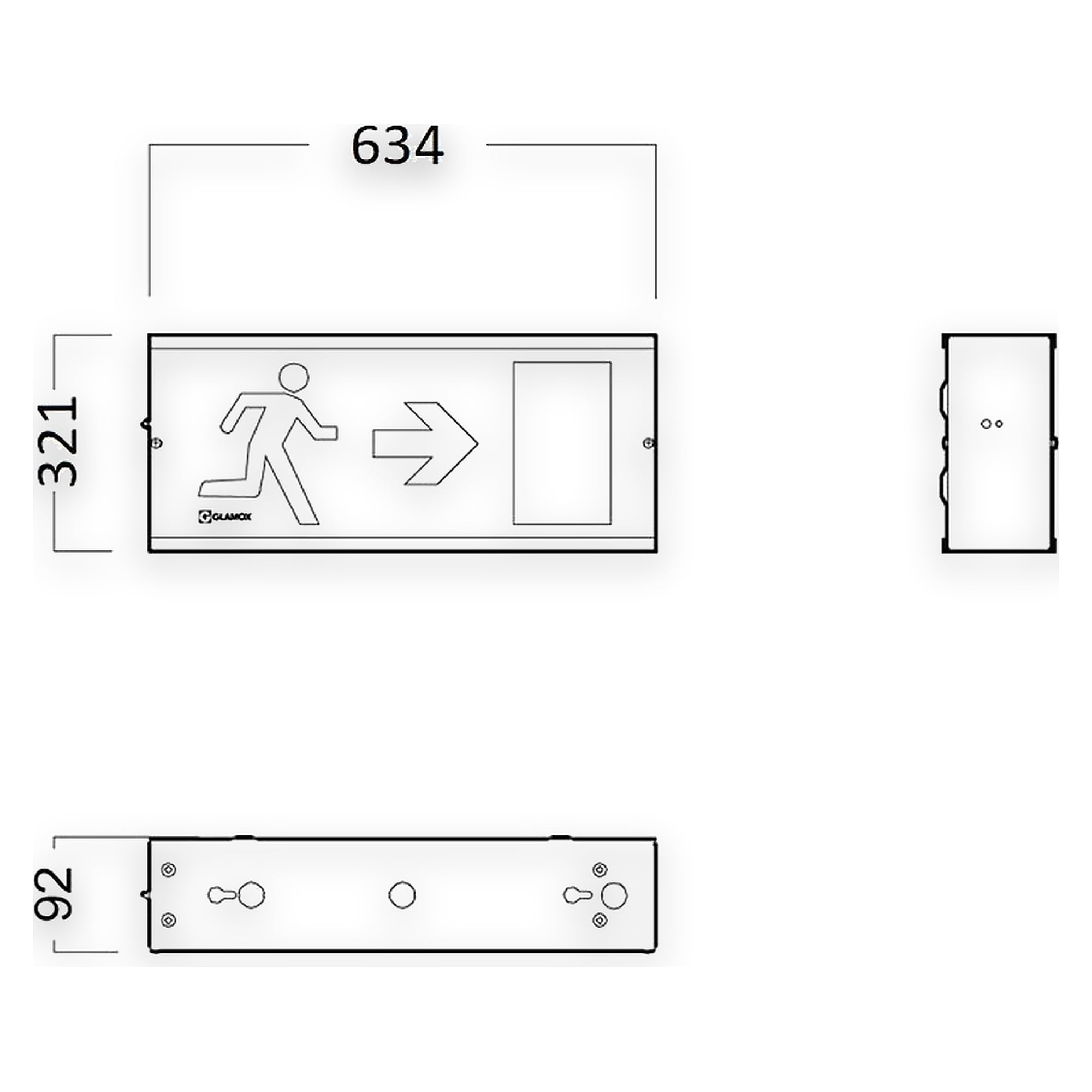

Dimensions
1. Length (mm)
  634
2. Width (mm)
  92
3. Height (mm)
  321
4. Net weight (kg)
  3.99
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface,Wall Surface
Logistic Data
1. Item gross weight (kg)
  4.34
