Lead time
4 weeks
€360.75
Excl. 19% VAT , excl. Shipping Cost
Article
GL-O10114108
Manufacturer Nr.
O10114108

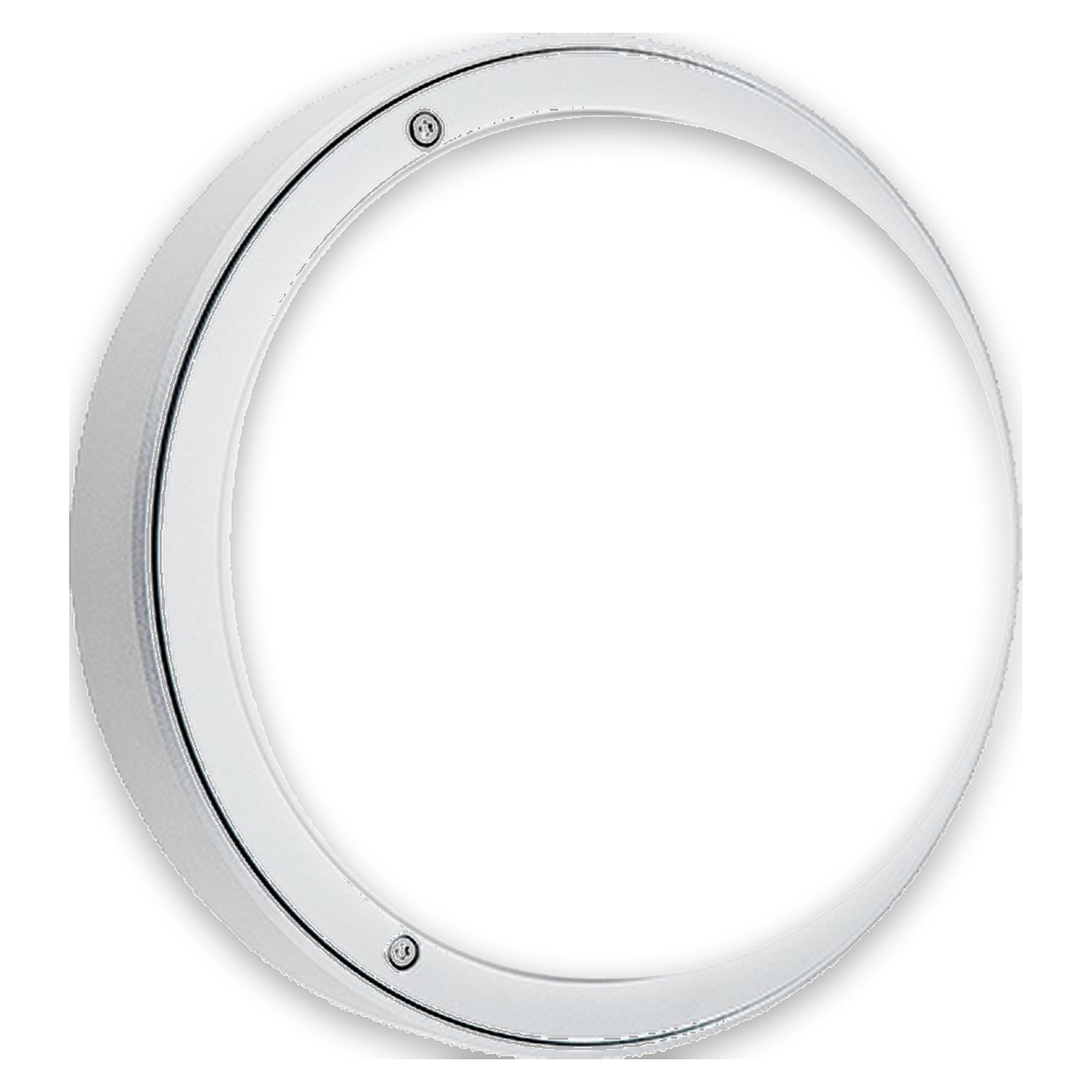

O10-S290 LED 1000 AC E3/ST 840 AL
Frequently Bought Together
- This Item: €360.75Excl. 19% VAT , excl. Shipping Cost
- Glamox 601838-185. O35 ROOT COLUMN €100.50Excl. 19% VAT , excl. Shipping Cost
- Glamox 514034745. Flächige Strahler NEXT 8 LED 45000 DALI 830 ASY €2,140.50Excl. 19% VAT , excl. Shipping Cost
Total price
General
- Product shapeRound
- Product shape
Electrical Data
- Leakage current (mA)0.40
- Voltage from (V)220
- Maximum voltage (V)240
- Minimum frequency (Hz)50
- Maximum frequency (Hz)60
- Main Feed DC (V) Min180
- Main Feed DC (V) Max270
- Total consumption (W)13
- Number of luminaires on a 10A MCB type B (80% load)81
- Number of luminaires on a 10A MCB type C (80% load)110
- Number of luminaires on a 16A MCB type B (80% load)130
- Number of luminaires on a 16A MCB type C (80% load)176
- Leakage current (mA)
Technical Data
- Minimum ambient temperature (ºC)-10
- Maximum ambient temperature (°C)30
- IK classification10
- IP classification66
- Corrosion classC4
- Minimum ambient temperature (ºC)

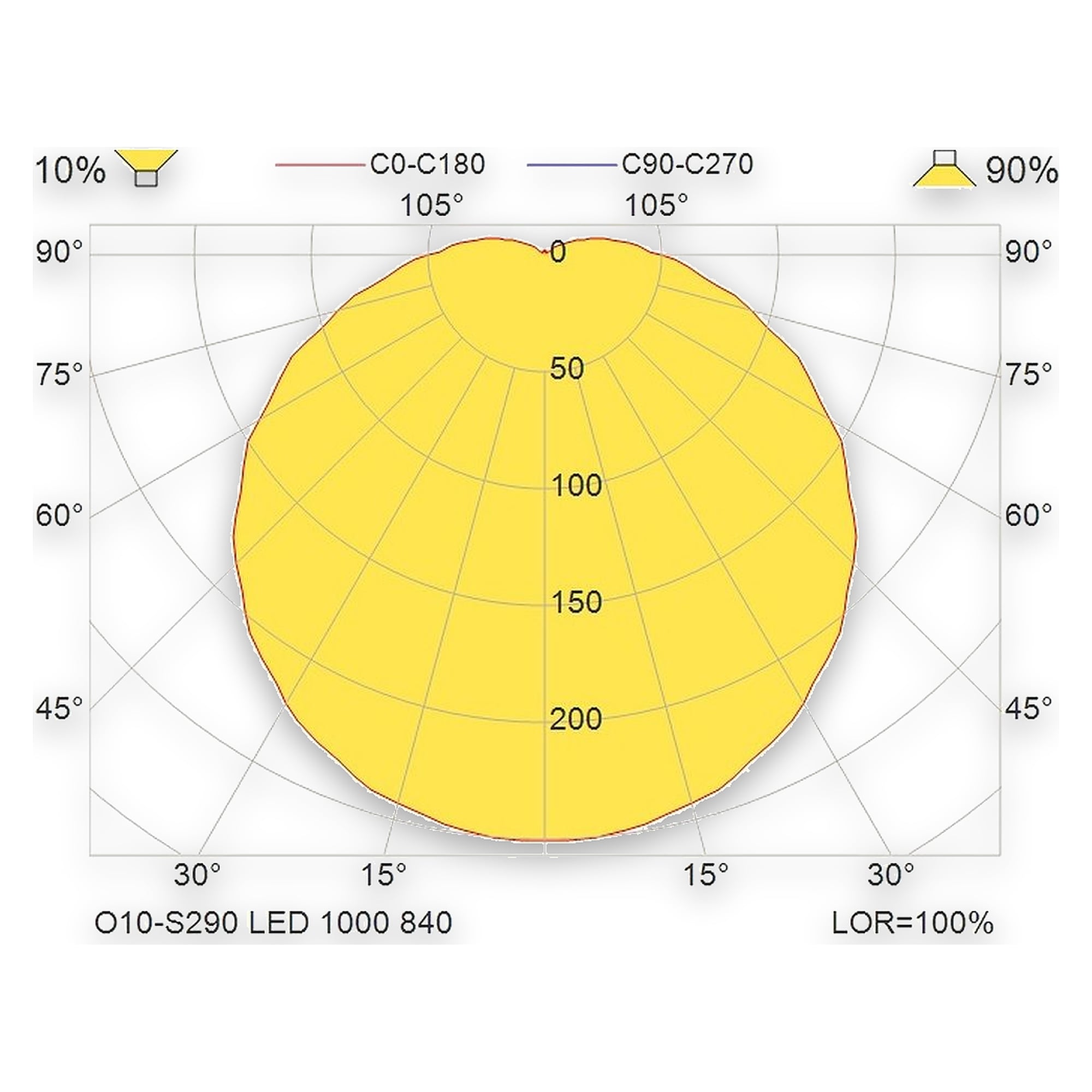

Light Technical Data
- Light sourceLED
- Lumen out (lm)955
- Lumen per Watt (lm/W)80
- Lamp colour temp (K)4000
- CRI Colour rendering index80
- MacAdam step3
- Energy class light sourceE
- Light source
Driver / Ballast
- Type of LED DriverAC: Alternating Current
- Number of Driver1
- Type of LED Driver
Lifetime
- L70 Median useful life LED Ta25 (hr)100 000
- L70 Median useful life LED MaxTa (hr)50 000
- Luminous flux decline (LLMF) 50.000h Ta250.85
- L70 Median useful life LED Ta25 (hr)
Emergency
- Type of emergencyST = Self test
- Duration in battery mode (hrs)3
- Charging power consumption (Emg) (W)1.50
- Output in battery mode (%)13
- Type of emergency
Optic
- Material of diffuserPolycarbonate
- Diffuser material designOpal
- Material of diffuser
Housing
- Main body materialAluminium
- Body colourGrey
- Main body colour nameAluminium grey
- Main body material

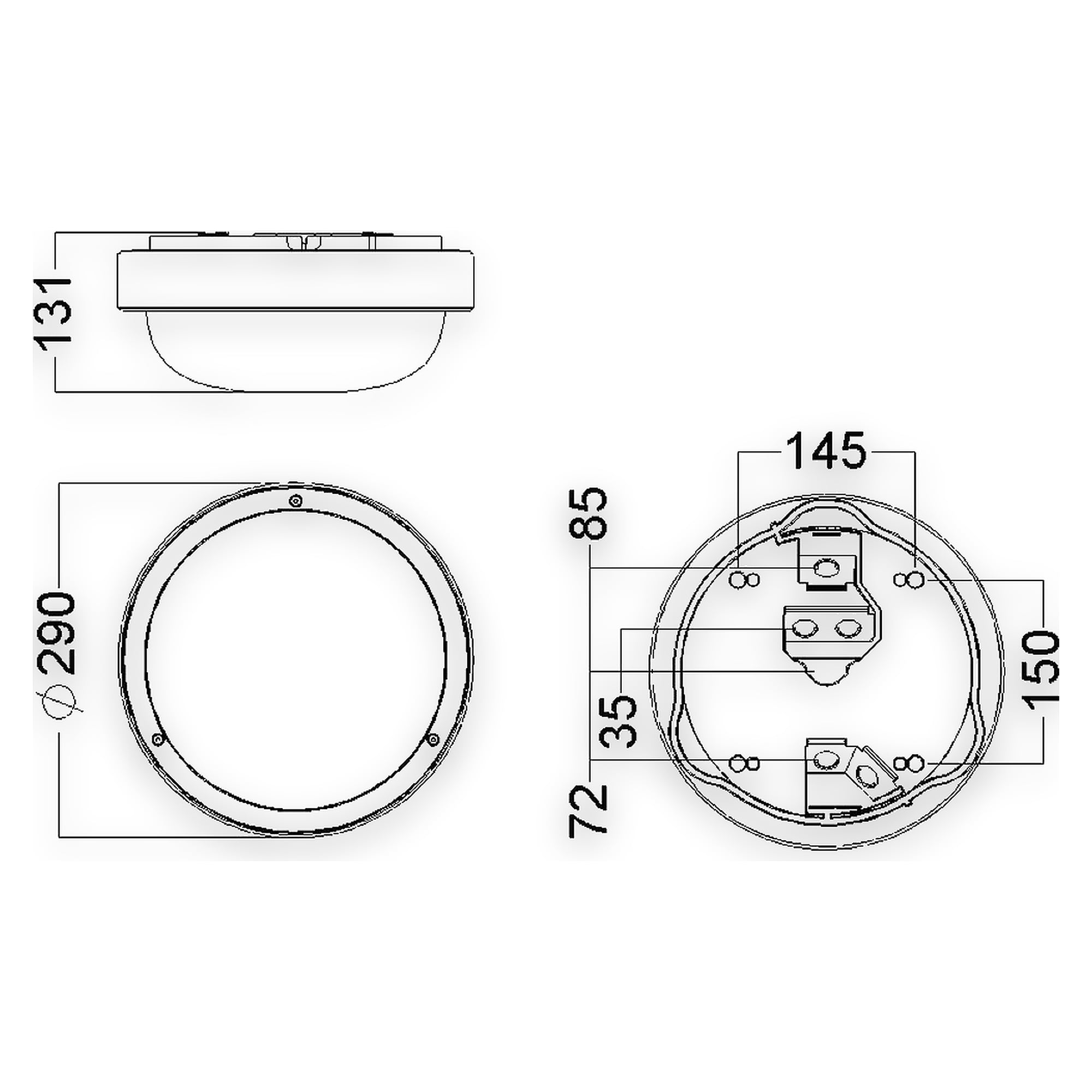

Dimensions
- Height (mm)131
- Diameter (mm)290
- Net weight (kg)2.80
- Height (mm)
Termination
- Termination5x2x2.5mm2 Push In
- Termination
Mounting
- Product mountingCeiling Surface,Wall Surface
- Product mounting
Logistic Data
- Item gross weight (kg)3.04
- Item gross weight (kg)
Execution | TEC |
---|---|
Manufacturer Nr. | O10114108 |
Manufacturer | Glamox |
Country of Manufacture | Germany |
EAN | 4741145301466 |
Lead time | 4 weeks |
Weight | 3.040000 |
Color | 4000K |
