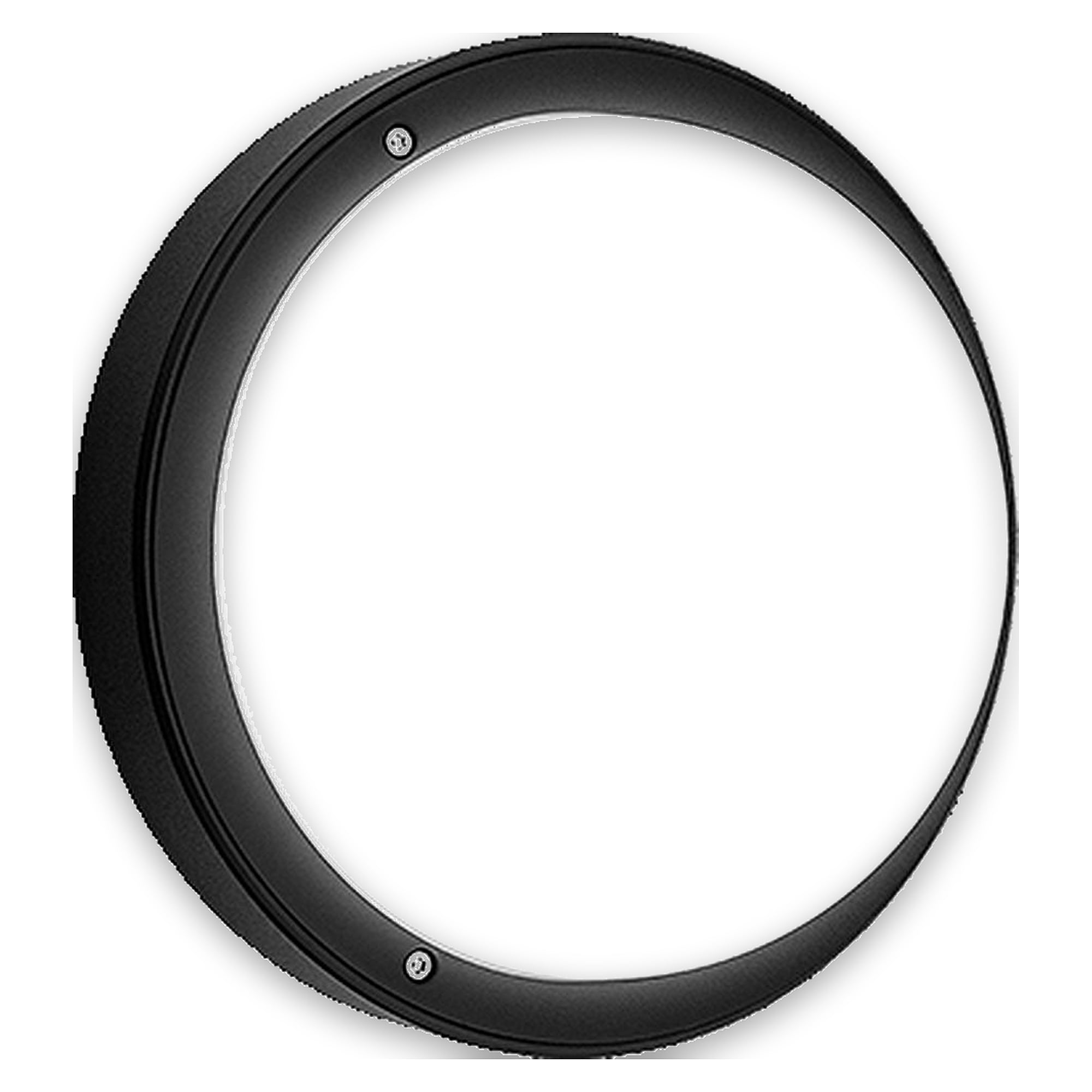

Glamox O10114301. Architectural Lighting O10-S290 LED 1000 AC STA-SEN 840 BL

Name: Glamox O10114301. Architectural Lighting O10-S290 LED 1000 AC STA-SEN 840 BL
Brand: Glamox
SKU: GL-O10114301
Price: 259.5 EUR
Availability: InStock

Lead time

4 weeks

€259.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O10114301

Manufacturer Nr.

O10114301

O10-S290 LED 1000 AC STA-SEN 840 BL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O10114301. Architectural Lighting O10-S290 LED 1000 AC STA-SEN 840 BL
€259.50

Excl. 19% VAT , excl. Shipping Cost
Glamox O3669188412. Bollard O36 LED 1700 HF 840 710MM BL
€1,131.00

Excl. 19% VAT , excl. Shipping Cost
Glamox O34711016. O34/O37 BASE PLATE ANTHRACITE
€47.25

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Round
Electrical Data
1. Leakage current (mA)
  0.40
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Main Feed DC (V) Min
  180
7. Main Feed DC (V) Max
  250
8. Total consumption (W)
  13
9. Number of luminaires on a 10A MCB type B (80% load)
  81
10. Number of luminaires on a 10A MCB type C (80% load)
  110
11. Number of luminaires on a 16A MCB type B (80% load)
  130
12. Number of luminaires on a 16A MCB type C (80% load)
  176
Technical Data
1. Minimum ambient temperature (ºC)
  -20
2. Maximum ambient temperature (°C)
  40
3. IK classification
  10
4. IP classification
  66
5. Corrosion class
  C4

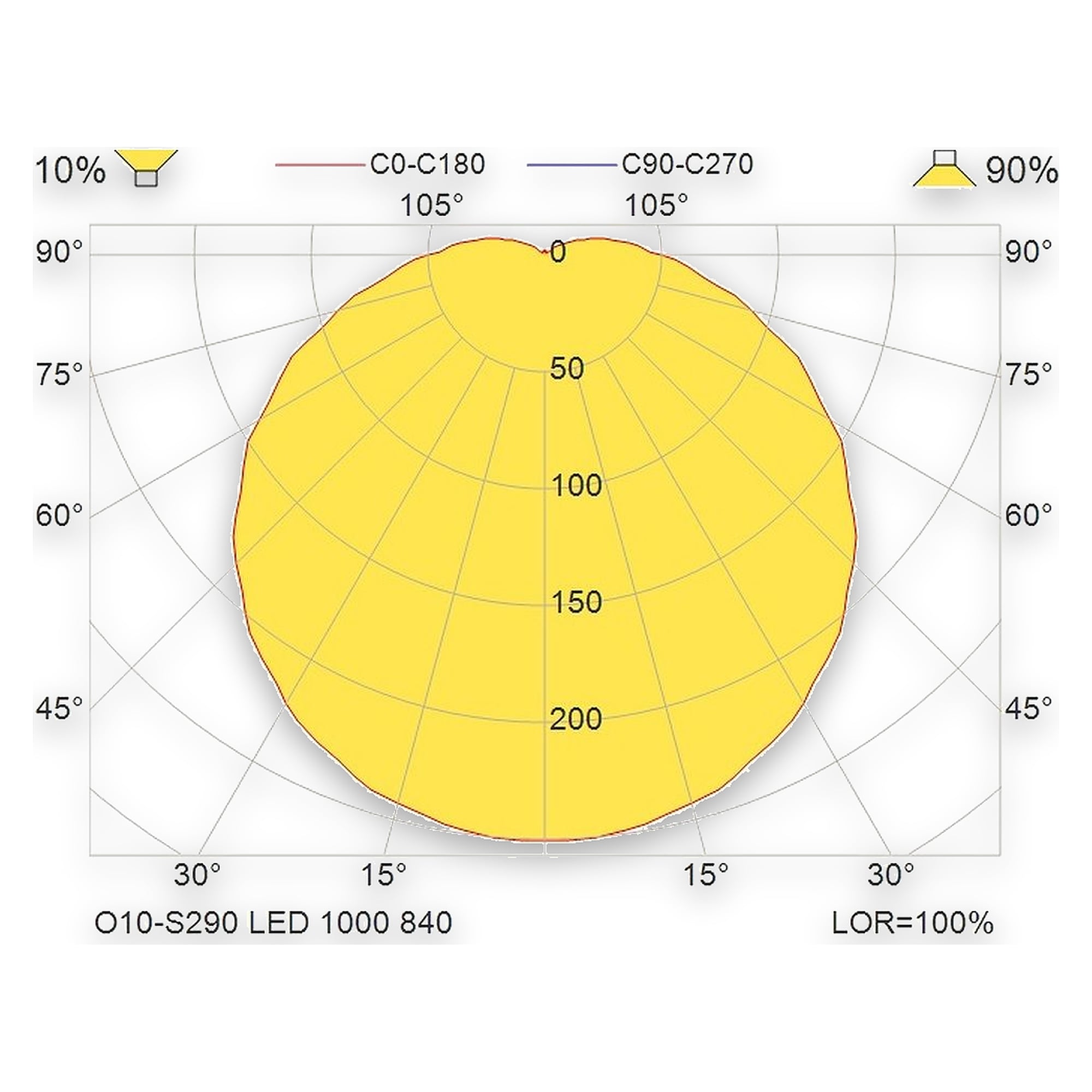

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  955
3. Lumen per Watt (lm/W)
  80
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  E
Driver / Ballast
1. Type of LED Driver
  AC: Alternating Current
2. Number of Driver
  1
Lifetime
1. L70 Median useful life LED Ta25 (hr)
  100 000
2. L70 Median useful life LED MaxTa (hr)
  50 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.85
Sensor
1. Sensor type
  LIGHT
2. Daylight functionality
  ON/OFF
3. Light sensor max lux
  5
4. Light sensor min lux
  5

Optic
1. Material of diffuser
  Polycarbonate
2. Diffuser material design
  Opal
Housing
1. Main body material
  Aluminium
2. Body colour
  Black
3. Main body colour name
  Black

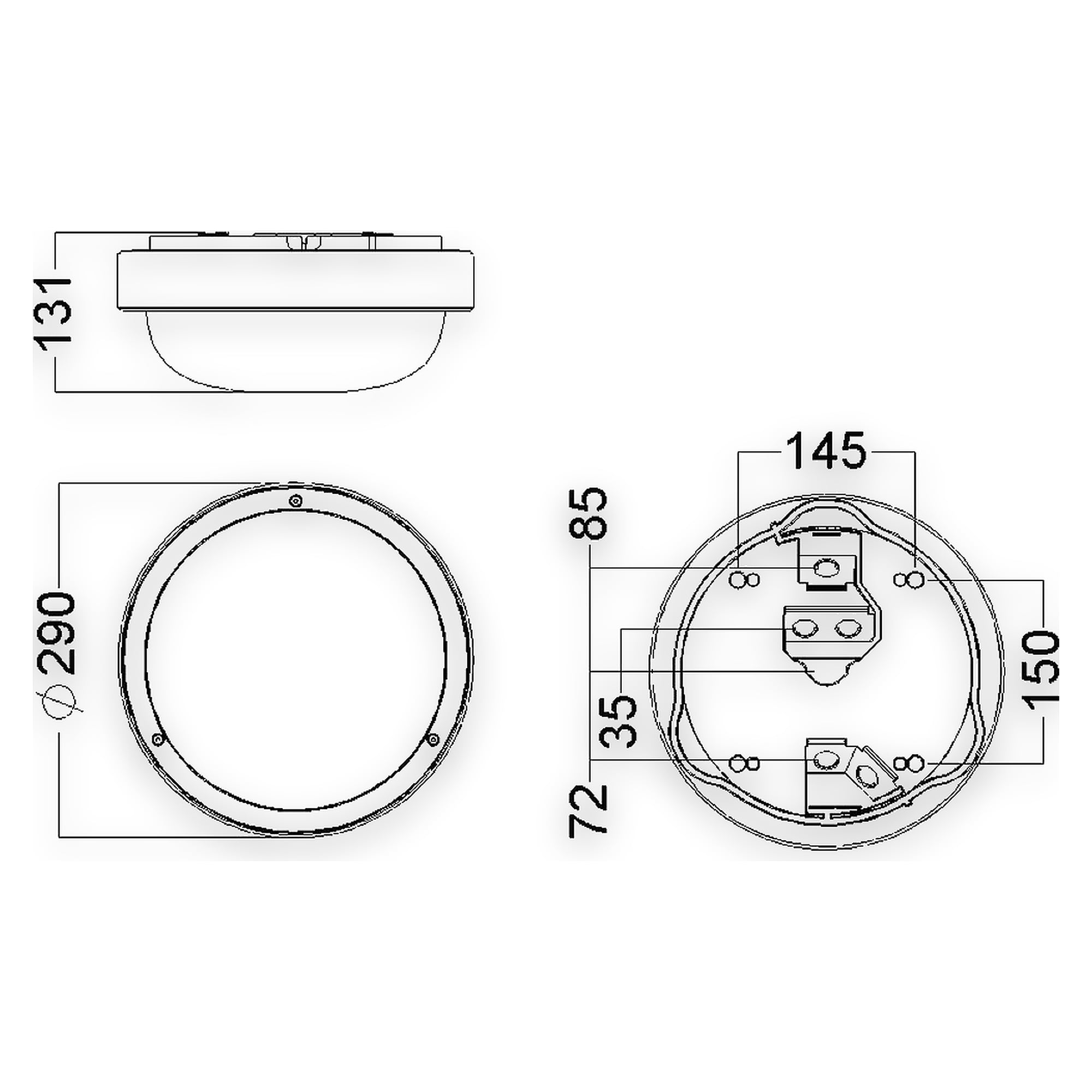

Dimensions
1. Height (mm)
  131
2. Diameter (mm)
  290
3. Net weight (kg)
  2.52
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface,Wall Surface
Logistic Data
1. Item gross weight (kg)
  2.74
