F+B Sensorkabel TPE 5 m, M12-Buchse auf M12-Stecker, 4-polig, FDA - LED2WORK 201100-01

Safely connect LED2WORK 24V DC luminaires in food and beverage production. The grey TPE sensor cable is built entirely from FDA-approved materials over 5 m and withstands intensive wet cleaning in hygiene-sensitive areas.

Key benefits

• Built entirely from FDA-approved materials, suitable for food and beverage
• V4A stainless steel coupling nut and EPDM seal for IP65, IP67 and IP68 protection
• Gold-plated CuSn contacts for low contact resistance below 0.005 ohm
• Wide temperature range from -40 C to +105 C
• Plug-and-play with M12 socket and M12 plug, A-coded

Technical data

• Model: sensor cable, M12 sockets 4-pin F&B
• Design: sensor cable, TPE, grey
• Coding: A-coded
• Cable length: 5 m
• Connection to luminaire: M12 socket connector, straight, EPDM seal, V4A coupling nut

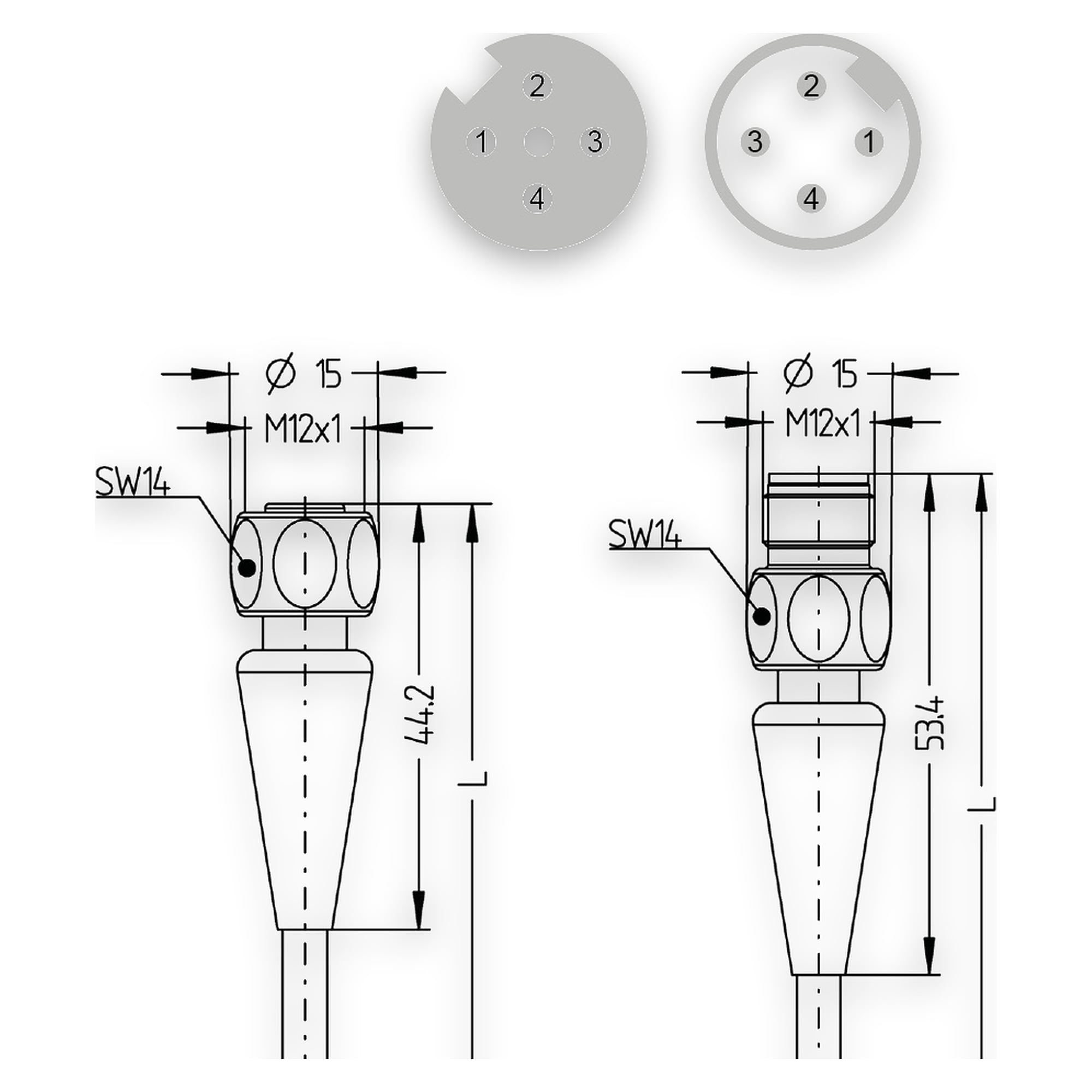

• Cable ends: M12 plug, straight / M12 socket, straight
• Number of pins: 4
• Rated voltage: 250V
• Current load per pin: 4000 mA
• Operating temperature: -40 C to +105 C
• Contact resistance: < 0.005 ohm
• Insulation resistance: >= 100 million ohm
• Protection rating (mounted): IP65, IP67, IP68
• Cable material: TPE
• Coupling nut material: stainless steel, V4A
• Seal material: EPDM
• Contact material: metal, CuSn, gold-plated
• Standards: IEC 61076-2-101
• RoHS / UL: yes
• Weight: 200 g
• Certifications: CE
• Special feature: food and beverage suitable, FDA-approved
• Made in: Germany

Applications

Connecting LED2WORK 24V DC luminaires with an M12-A connection in the food and beverage industry and other areas with wet cleaning. RGB and RGB-W luminaires require a 5-core sensor cable for the signal function.
