DIMMbox external M12 A-coded for T-slot, max. 144 W, 24V DC - LED2WORK 210700-04

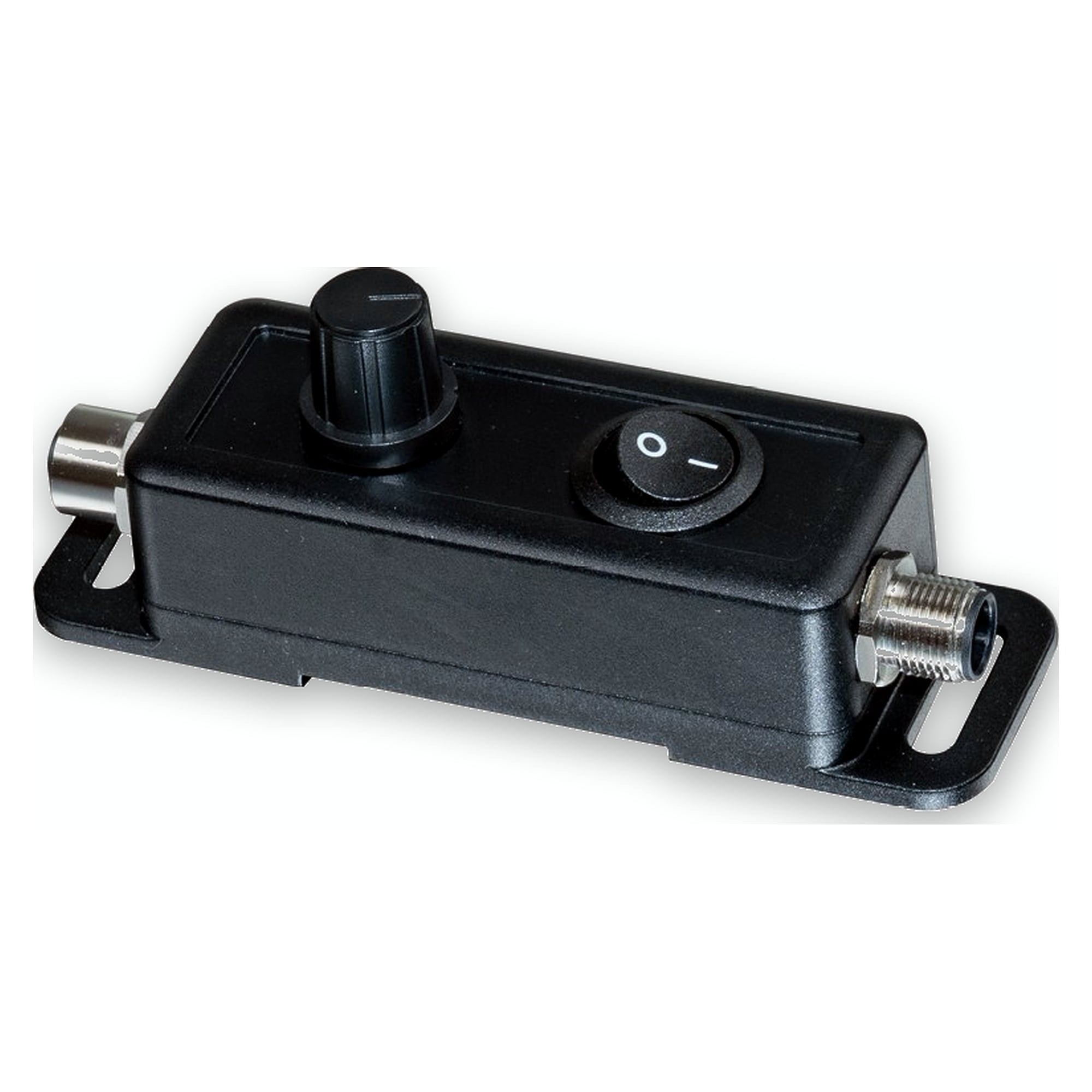

External DIMMbox with rotary control and on/off switch for stepless dimming of LED2WORK 24V DC lights up to 144 W. A-coded M12 input and output, mounts straight onto T-slot profiles via fixing tabs.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For stepless dimming of LED2WORK 24V DC lights, the DIMMbox sets brightness with a rotary potentiometer and switches the light with its built-in on/off switch, for a connected load up to 144 W.
Key benefits
- Stepless brightness control via rotary potentiometer
- Built-in on/off switch on the module
- M12 input (socket) and M12 output (plug), both A-coded
- Mounts directly onto T-slot profiles via fixing tabs
- Connected load up to 144 W, current rating up to 6000 mA
- IP54 rating for use on the machine
Applications
Universal DIMMbox for all LED2WORK 24V DC lights with an A-coded M12 connection, except RGB models. Suited to machine and plant lighting with T-slot profiles.
Technical data
| Model | LED2WORK DIMMbox |
|---|---|
| Design | surface module with slot mounting |
| Power | max. 144 W |
| Input/output voltage | 24V DC |
| Max. current rating | 6000 mA |
| Brightness control | rotary potentiometer |
| Input/output connection | plug M12A / socket M12A |
| On/off switch | yes |
| Driver | external |
| Protection rating | IP54 |
| Protection class | III |
| Operating temperature | -20 °C to +50 °C |
| Storage temperature | -20 °C to +80 °C |
| Material | ABS housing |
| PWM frequency | ~4.9 kHz |
| Dimensions | 122 mm x 38 mm x 45 mm |
| Weight | 100 g |
| Certifications | CE, UKCA |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 210700-04 |
| Zolltarifnummer | 85365005 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Abstrahlwinkel | 20° |
| Montageart | T-Nut / Profil |
| Operating voltage | 24 V |
