Ball bushing guides
Linear guides
Bosch Rexroth ball bushing guides carry motion through a ball bushing on a round precision steel shaft. This category groups ball bushings, ready-to-install linear sets, precision steel shafts with and without shaft support rails, and the related accessories. It holds bushing types KBC, KBDR2 and KBRON (Compact KBC-16-RT, torque KBDR2-25, rotary KBRON-60), WU30 shaft supports, WBA-12 shaft blocks and sealing rings.

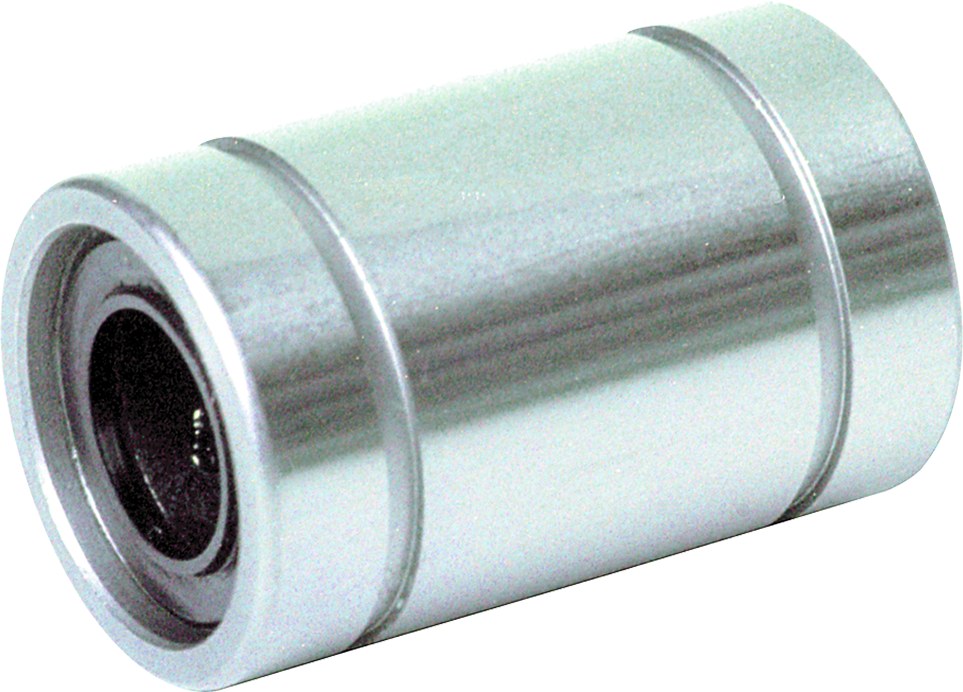

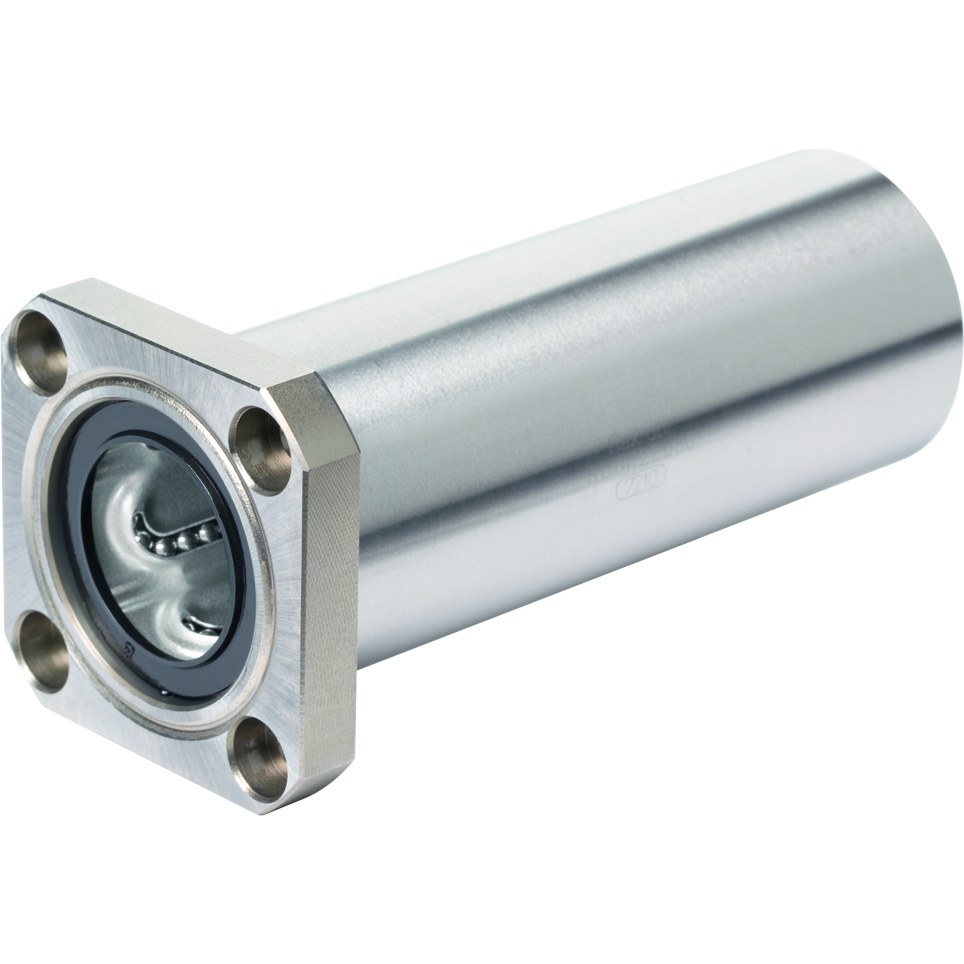

Ball bushingsBosch Rexroth ball bushings are the rolling elements of the ball bushing guide: they run on recirculating ball rows along a...

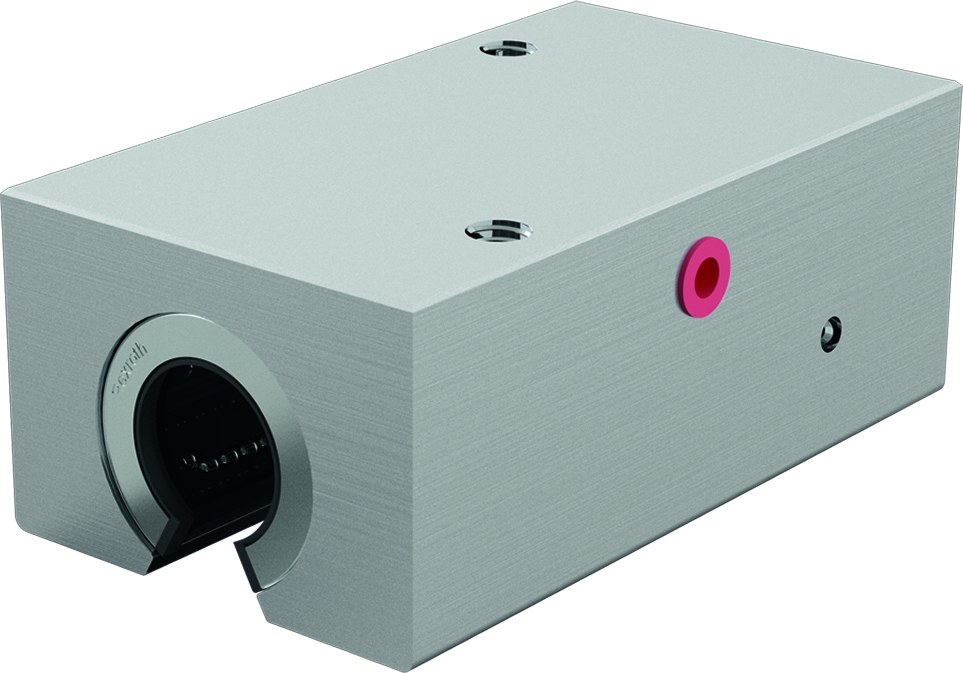

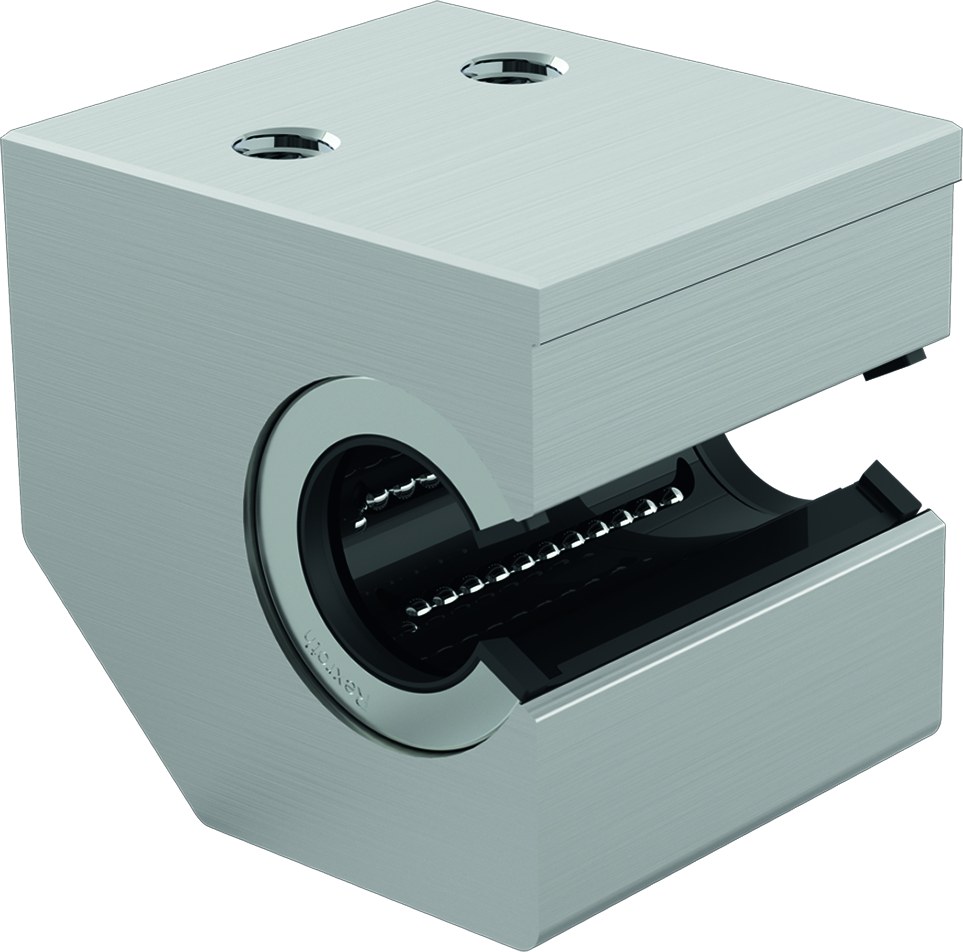

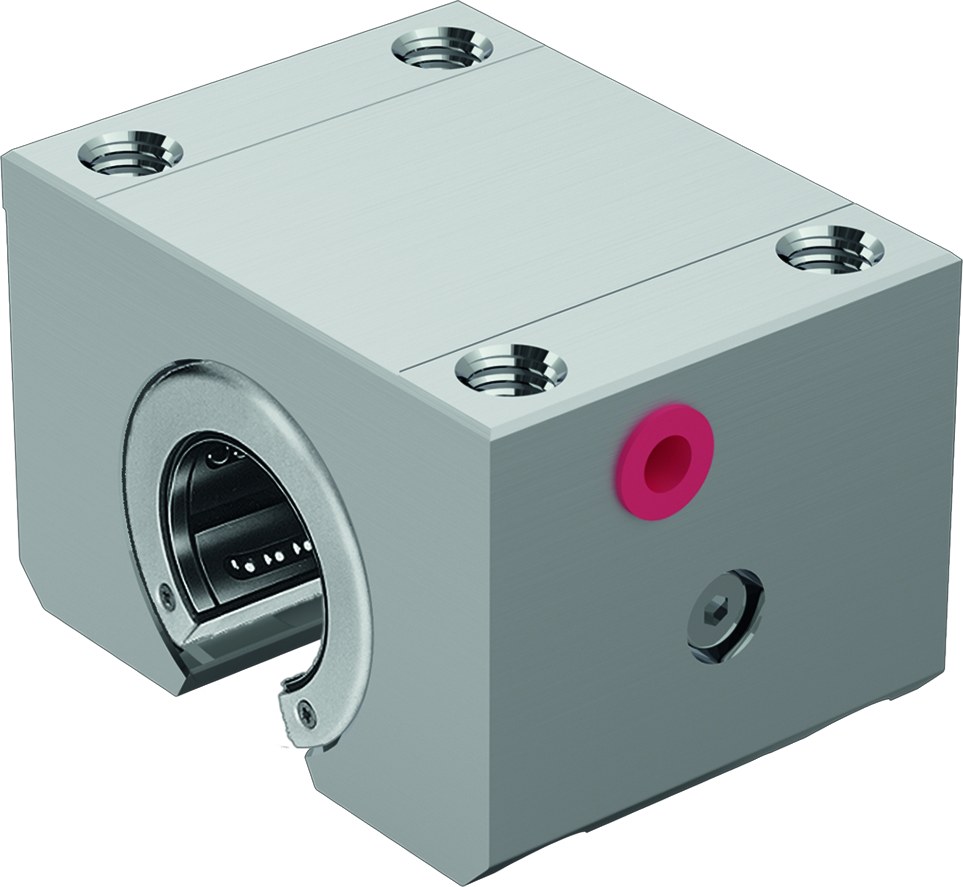

Linear sets with ball bushingsBosch Rexroth linear sets with ball bushings are ready-to-install guide units of ball bushing, housing and precision steel shaft.
Precision steel shafts with shaft support railsBosch Rexroth precision steel shafts with shaft support rails are continuously supported shafts for ball bushing guides.
Precision steel shaftsPrecision steel shafts from Bosch Rexroth form the raceway for ball bushing guides.
Accessories for ball bushing guidesThese accessories complete Bosch Rexroth ball bushing guides into a full shaft axis.
Typical applications: Ball bushing guides suit linear and combined rotary-linear motion in fixture and special machine building, handling and feeding equipment. Selection follows shaft diameter, bushing type (straight, torque, rotary) and shaft support (unsupported on shaft blocks or continuous on support rails). The subcategories let bushing, shaft, support and seal be matched together.
