LED pivoting-head luminaire ABL ABLL 1, spot 15°, 200 lm, ball joint, IP67 - Waldmann 112353000-00041201

Some spots in machines and fixtures cannot be reached by a standard luminaire. The ABL ABLL 1 screws into a 1.5xM18 threaded hole and is aimed via its ball joint. With a 15° beam angle and approx. 200 lm, the spot version creates a tightly defined point of light, at only 2 W and UGR ≤ 16.

Benefits

• Spot optic with 15° for a clearly defined point of light, max. luminance ≤ 100 cd/m²
• Integrated ball joint: light direction freely adjustable after installation
• Screws into a 1.5xM18 threaded hole, no bracket needed
• IP67, protection class III, jet black anodised aluminium housing with borosilicate glass
• Approx. 200 lm at 2 W, 5000 K, CRI ≥ 80, colour tolerance < 3 SDCM
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Targeted lighting of individual measuring or check points
• Hard-to-reach places in machines and systems
• Marking operating or intervention points

Installation and accessories

• Fixing in 1.5xM18 threaded hole, max. ambient temperature 25 °C
• Approx. 1.5 m cable with free stranded wire ends

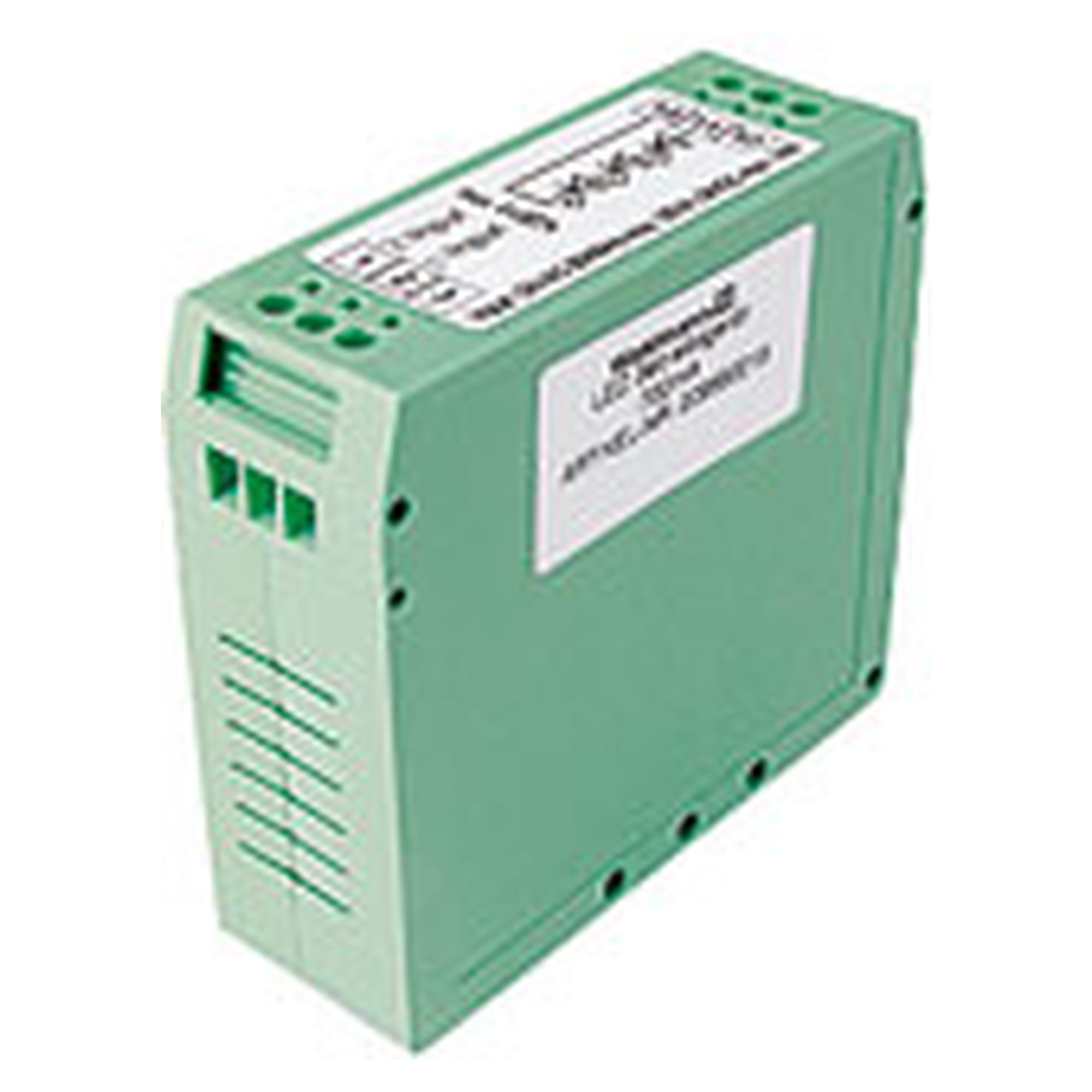

• Operation on 700 mA constant current control gear with DIN rail clip, available as accessory for 110-230 V (10 W) or 24 V AC/DC (14 W)
