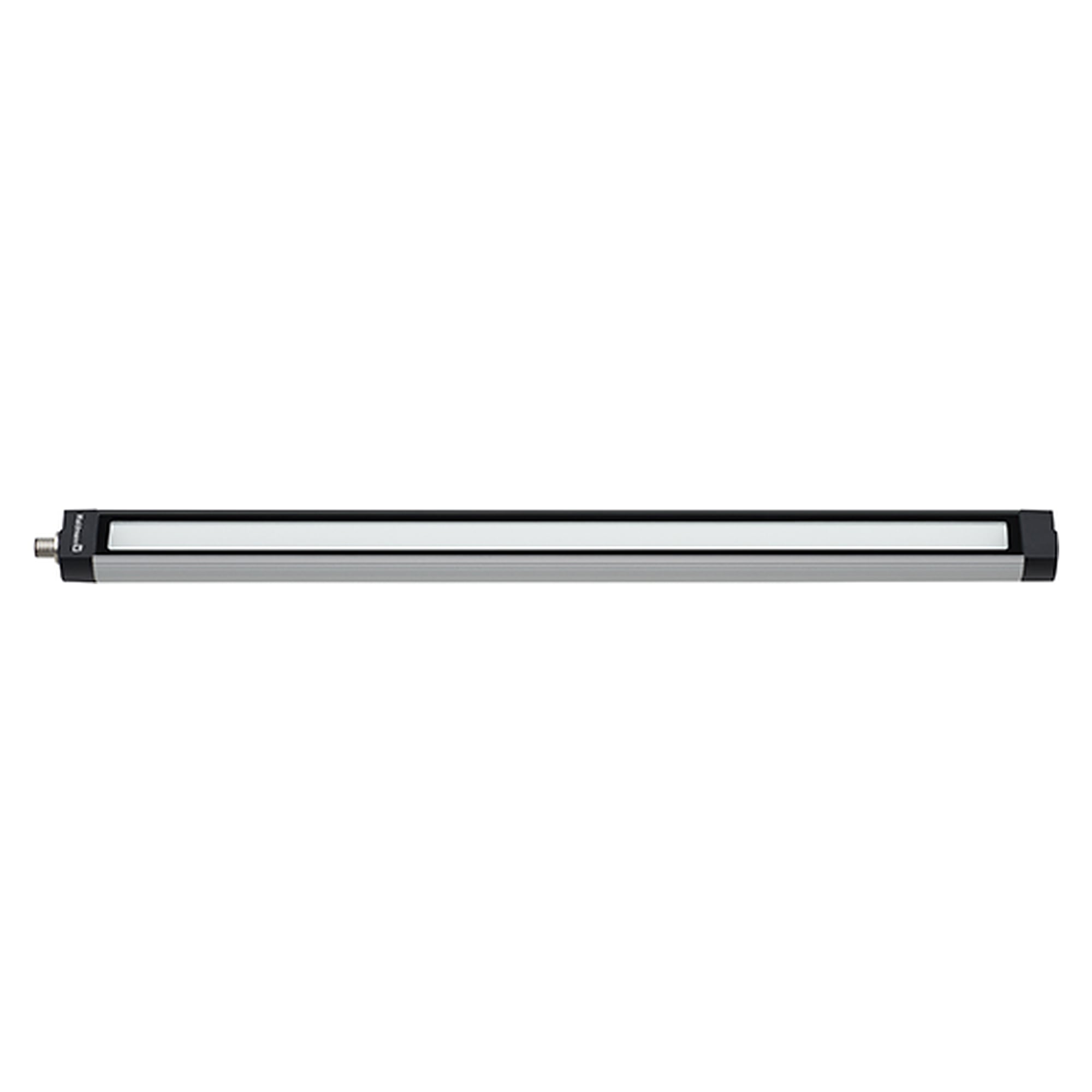

LED machine luminaire MACH LED PLUS.forty MLAL 42 S, 16 W, 1680 lm, 540 mm, 90° reflector - Waldmann 113163000-00662717

For even lighting of a machine tool's working area, the MLAL 42 S is a medium-length surface-mounted luminaire of 540 mm: it delivers approx. 1680 lm at approx. 16 W, and its reflector spreads the light in a 90° wide beam across workpiece, clamping fixture and tool.

Benefits

• Reflector with 90° beam angle: wide, uniform lighting of the working area without hard light cones
• Approx. 105 lm/W luminous efficiency at approx. 16 W power consumption
• IP67 and protection class III: sealed against dust, coolant and temporary immersion
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Medium-sized lathes and milling machines
• Grinding machines and machining centres
• Automated assembly cells

Installation and accessories

• Mounted with L-angle or clamp, matching luminaire bracket +/-20° and luminaire bracket set +/-90°
• Connection via built-in plug RSFM 4/0,05 P25-1 (M12, A-coded), accessories: M12 connection cables 3 m and 7 m, sockets, plugs, protective cap
• Mains operation via operating device 100-240 V / 24 V DC, 30 W or 100 W
