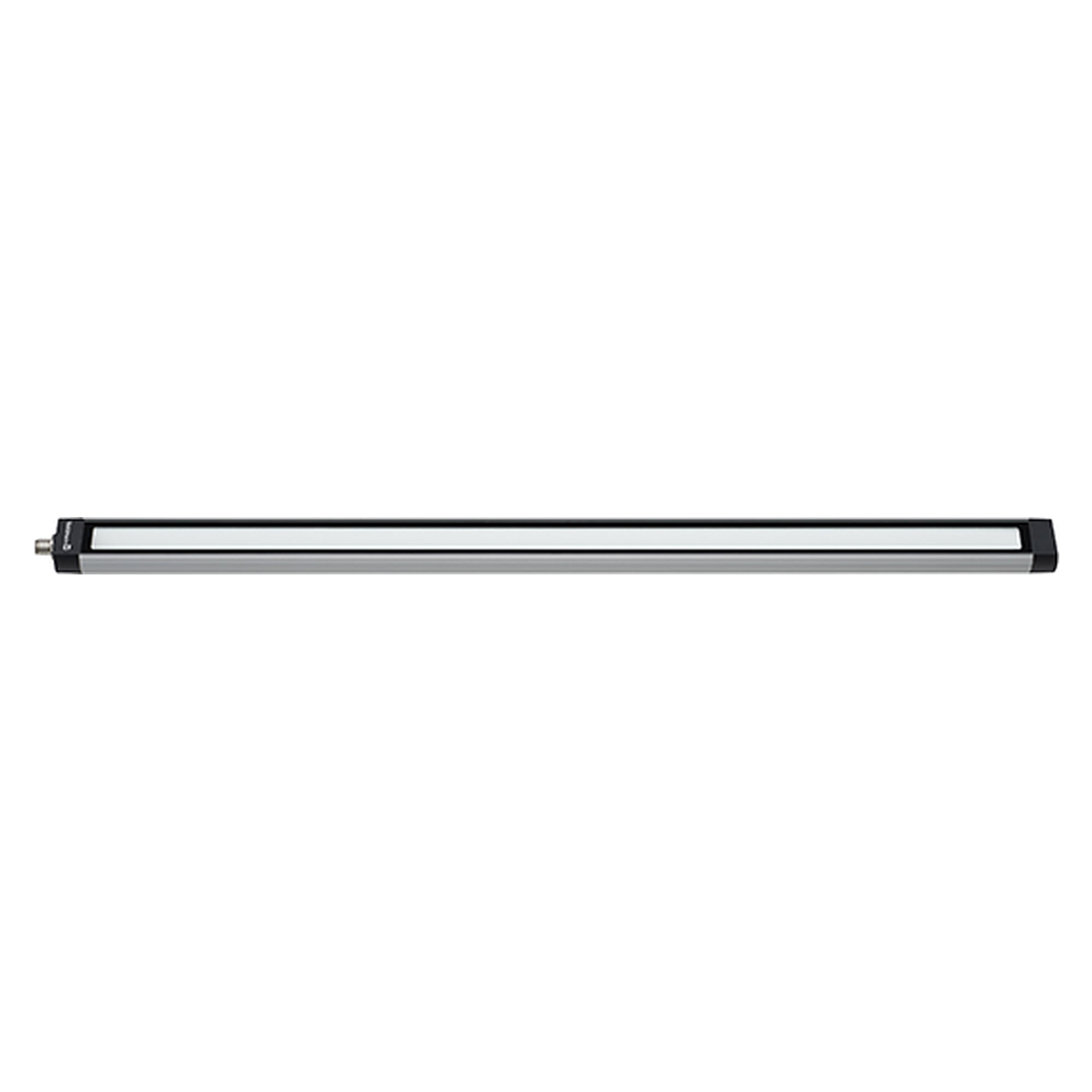

LED machine luminaire MACH LED PLUS.forty MLAL 57 S, 21.5 W, 2280 lm, 715 mm, PWM dimmable - Waldmann 113164000-00662821

If the machine control should not only switch the light but also dim it or make it flash, the MLAL 57 S offers a PWM interface and a digital switching input. Over 715 mm it delivers approx. 2280 lm at approx. 21.5 W.

Benefits

• PWM signal for dimming and flashing: adapt brightness to the process step or use the light as a signal
• Digital input for switching directly from the machine control
• Approx. 2280 lm at approx. 103 lm/W, wide beam with 90° reflector
• IP67 and protection class III: sealed against dust, coolant and temporary immersion
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Machines whose control system sets brightness or flashing signals
• Machining centres and milling machines
• Grinding machines using coolant

Installation and accessories

• Mounted with L-angle or clamp, matching luminaire bracket +/-20° and luminaire bracket set +/-90°
• Connection via built-in plug RSFM 4/0,05 P25-1 (M12, A-coded), accessories: M12 connection cables 3 m and 7 m, sockets, plugs, protective cap
• Mains operation via operating device 100-240 V / 24 V DC, 30 W or 100 W
