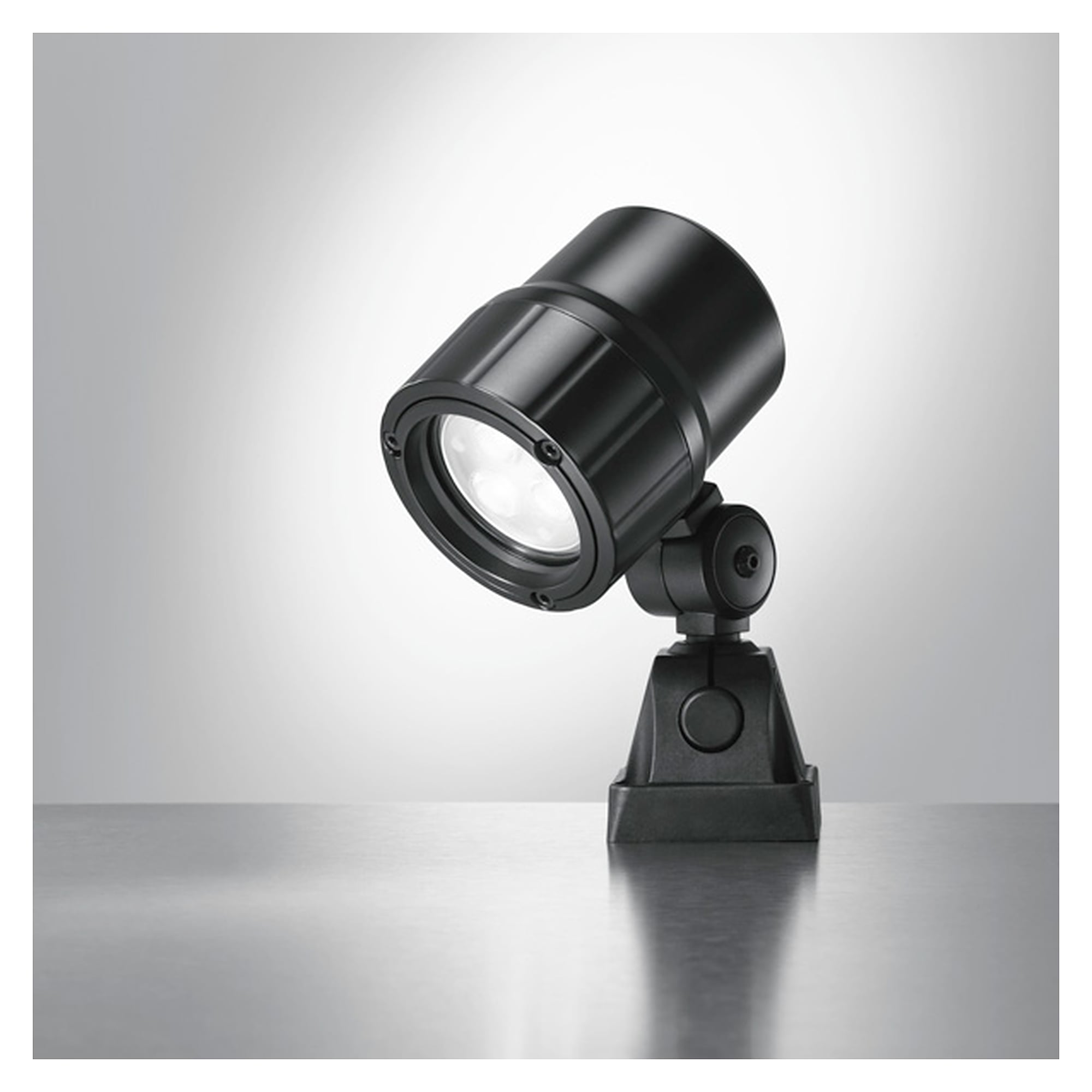

LED pivoting-head luminaire SL SLJ 500/750/S, Spot 10°, 490 lm, 24 V DC - Waldmann 113259000-00641127

Inside a machine's working area, the light should fall precisely on the tool, clamping device or measuring point rather than scattering into the room. The SL SLJ with 10° spot concentrates 490 lm at 5 W, i.e. 98 lm/W, onto a small area. The pivoting head is screwed onto a flange and can be aimed, and the housing and cover are protected to IP67 against coolant and chips.

Benefits

• Spot 10°, narrow beam: 490 lm at approx. 5 W, 98 lm/W.
• Compact pivoting head on screw-down flange, adjustable, only approx. 0.9 kg.
• IP67 protection, black painted aluminium housing, borosilicate glass cover.
• Neutral white 5000 K, CRI ≥ 70, risk group RG0/1.
• Designed for ambient temperatures up to 40 °C.
• Protection class III for 24 V DC, approx. 3 m cable with free stranded wires.

Applications

• Machine tools: drilling, milling and turning
• Pinpoint lighting of measuring and inspection points
• Woodworking machines

Installation and accessories

• Mounting via screw-down flange on the machine wall or housing
• Connection to 24 V DC (22-26 V) via approx. 3 m cable with free stranded wires
• Further fastenings available as accessories
• Operating devices 100-240 V to 24 V DC (30 W or 100 W) or 220-240 V to 24 V DC constant voltage available as accessories
