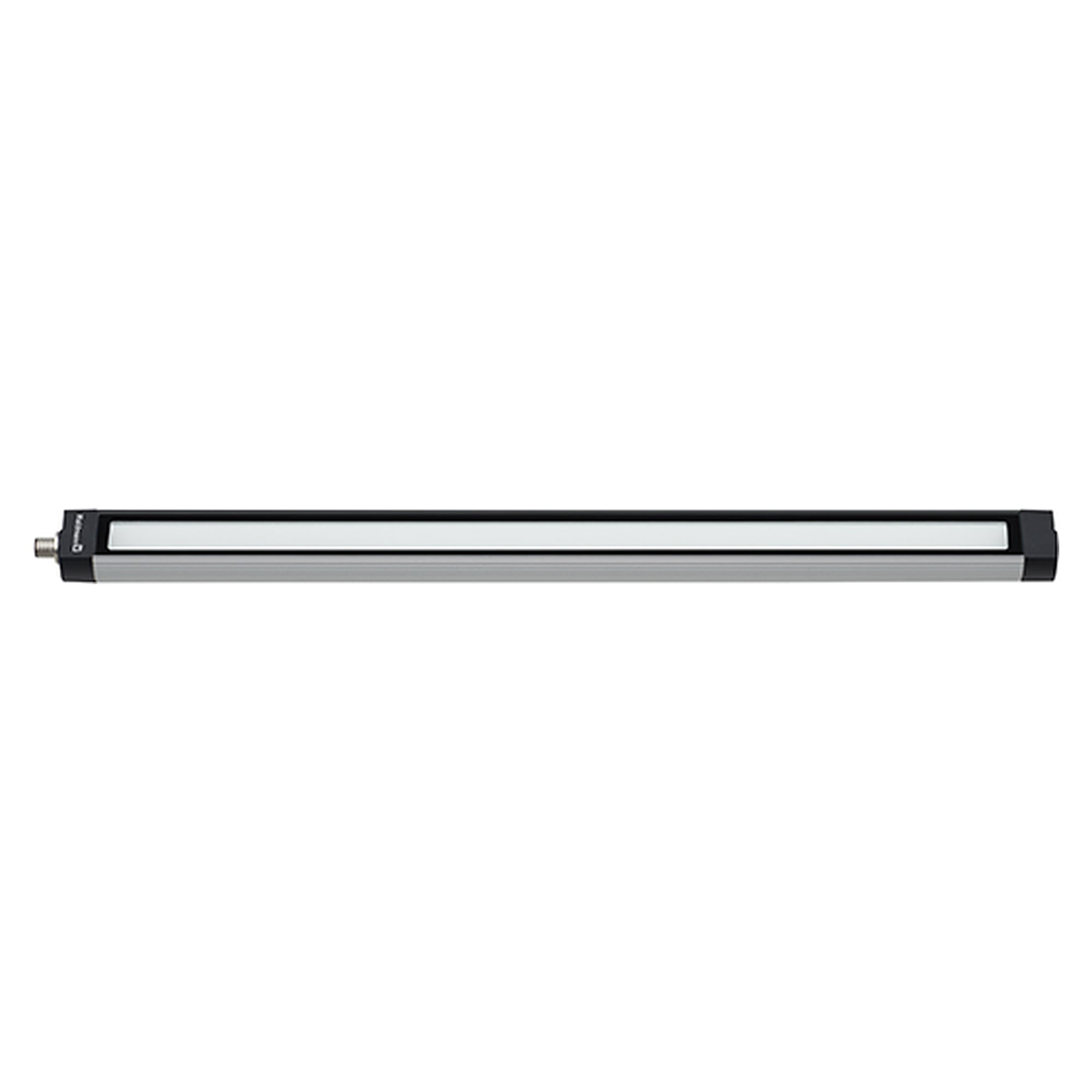

LED machine luminaire MACH LED PLUS.forty MLAL 42 S, 14 W, 1450 lm, 90°, 60 °C - Waldmann 113691000-00801359

Inside hot machines a standard luminaire reaches its limit at 50 °C. The MLAL 42 S is designed for ambient temperatures up to 60 °C and still delivers 1450 lm at 14 W.

Benefits

• 1450 lm at 14 W (103 lm/W), length 540 mm
• This high-temperature version is rated for up to 60 °C ambient, compared with 50 °C for the standard version.
• IP67 and protection class III, housing of colourless anodised aluminium with borosilicate glass cover
• According to the manufacturer vibration-resistant at 10-55 Hz (amplitude 0.35 mm) and shock-proof up to 50 g
• 24 V DC supply (20-28 V) via M12 connector (4-pole), no driver inside the luminaire
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Working area of machine tools and machining centres
• Machines and systems with higher internal temperature up to 60 °C
• Assembly and test systems in production

Installation and accessories

• Mounting with L-angle or clamp from the accessory range, plus luminaire bracket adjustable ±20° and luminaire bracket set adjustable ±90°
• Connection via built-in plug RSFM 4/0,05 P25-1, with matching M12 connection cable 3 m or 7 m, M12 connection socket and protective cap
• For mains voltage an operating device 100-240 V or 220-240 V to 24 V DC is available as an accessory
