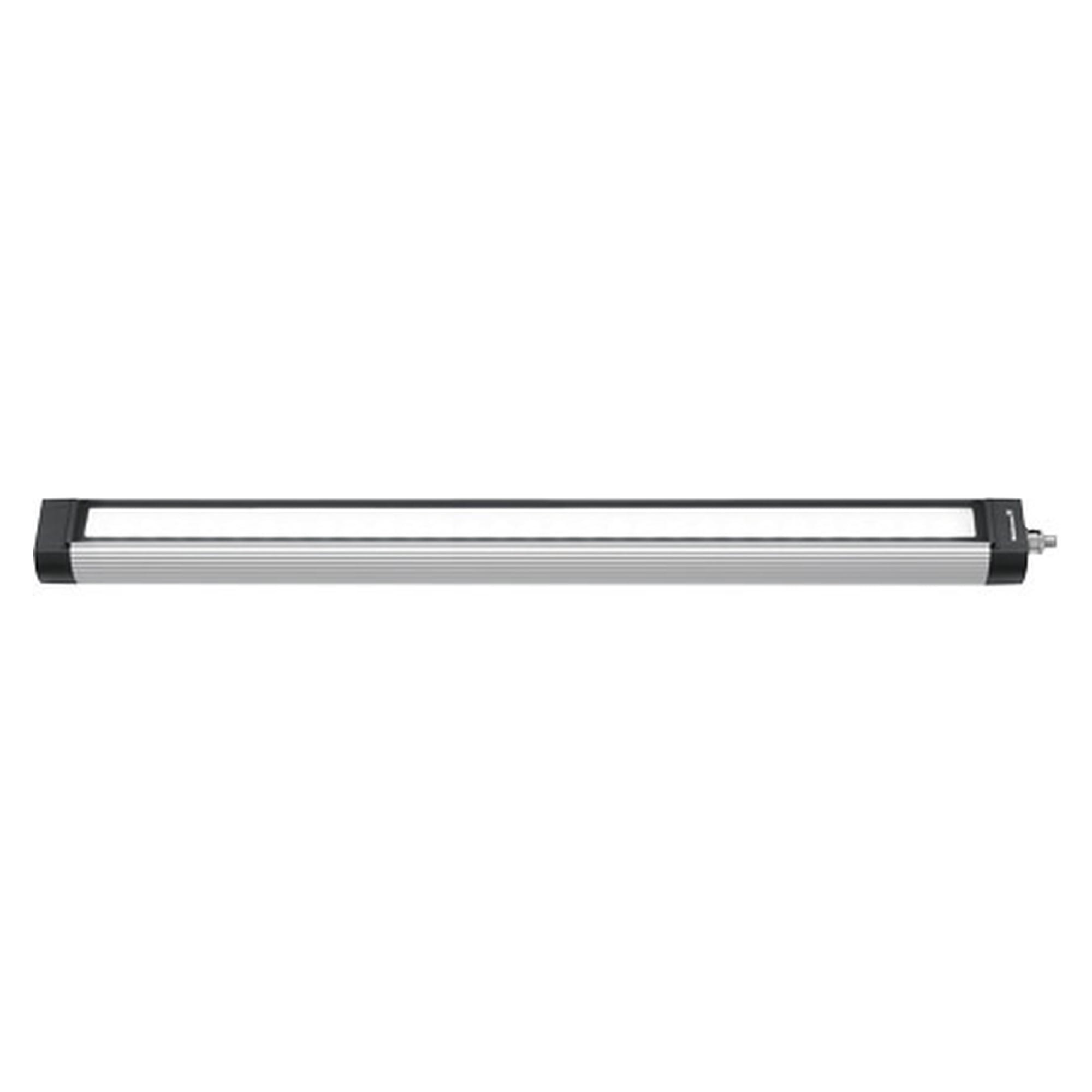

LED machine luminaire MACH LED PLUS.seventy MQAL 60 N, 31 W, 2700 lm, 790 mm, 100/120/220-240 V AC - Waldmann 113700000-00802563

Machines with high lighting demands need more light in the work area. With power fitting, meaning twice the number of LEDs, the MQAL 60 N delivers approx. 2700 lm over a luminaire length of 790 mm. The electronic ballast accepts 100 V, 120 V and 220-240 V at 50 or 60 Hz, so one luminaire fits machines built for different grids.

Benefits

• Power fitting with twice the number of LEDs: approx. 2700 lm for machines with higher lighting demands
• IP67 with Viton seal, resistant to many oils and cooling lubricants according to the manufacturer
• One item for 100 V, 120 V and 220-240 V at 50/60 Hz: fewer variants to keep as spare parts
• Glare control via optical film, UGR ≤ 25 and luminance L65 ≤ 27,000 cd/m²
• Clear anodised aluminium housing with a clear borosilicate glass cover, shock and vibration resistant (up to 50 g according to the manufacturer)
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Machine tools and medium-sized machining centres
• Woodworking machines
• Machines exported to 100 V or 120 V grids

Installation and accessories

• Mounting with L-angle or clamp from the accessory range
• Luminaire brackets adjustable ±30° or ±65° as accessories
• Mains connection via built-in plug (series 814)
• M12 connection sockets, plugs and 3 m or 7 m connection cables as accessories
