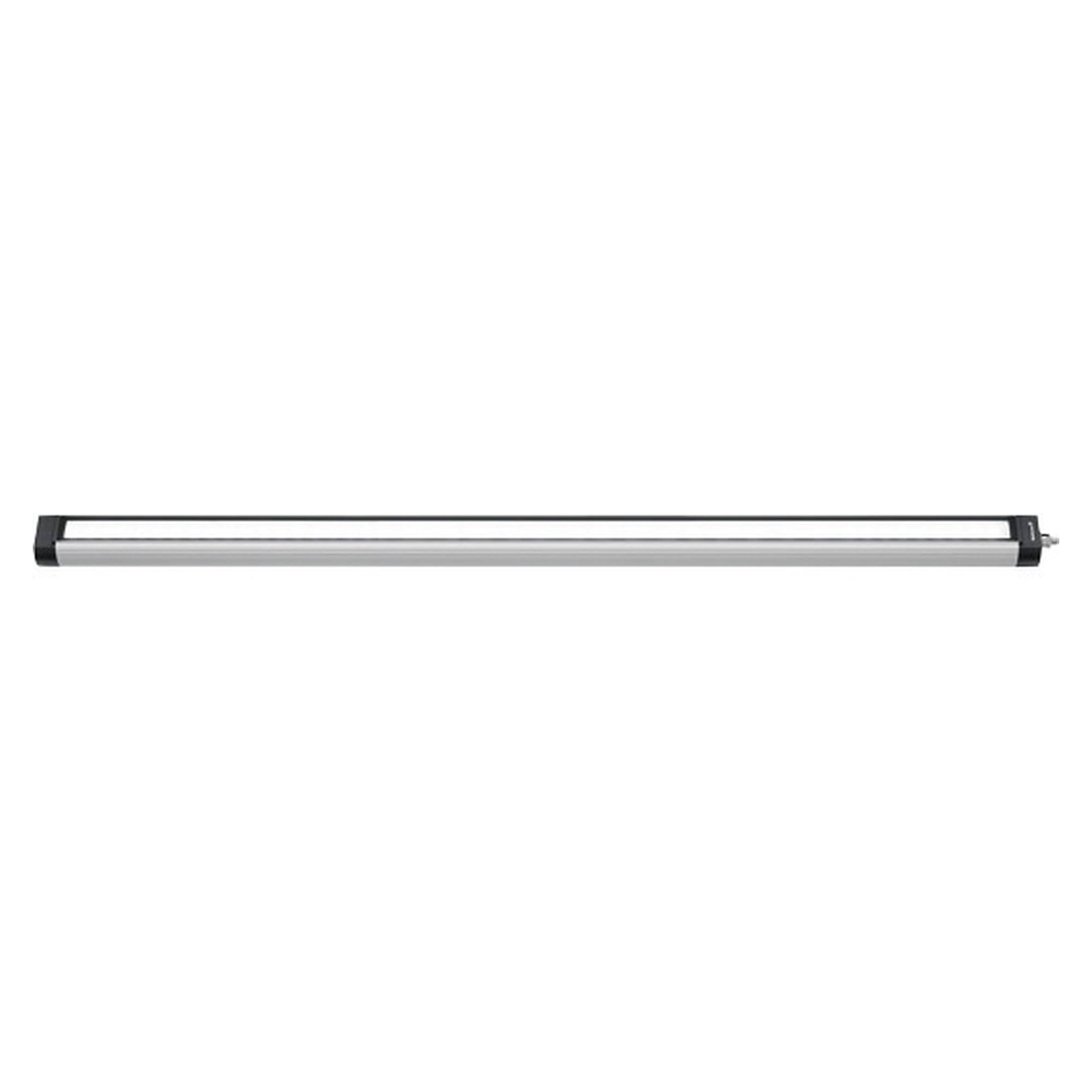

LED machine luminaire MACH LED PLUS.seventy MQAL 120 N, 220-240 V AC, 5300 lm, 1490 mm - Waldmann 113706000-00802575

Large machining centres and long machine enclosures need light along their full width. The MACH LED PLUS.seventy MQAL 120 N delivers around 5300 lm at 61 W over a length of 1490 mm. The Power fitting with twice the number of LEDs is designed for machines with higher lighting demands, at a luminous efficiency of 86 lm/W. The integrated electronic ballast is rated for 220-240 V AC at 50/60 Hz, protection class I.

Benefits

• Plenty of light in the working area: around 5300 lm at 61 W, neutral white 5000 K, CRI ≥ 80
• IP67 protection with Viton seal, chemically resistant to many oils and cooling lubricants
• Optical film for glare control and 80° beam angle for homogeneous light with soft transitions
• Housing of clear anodised aluminium with borosilicate glass, vibration-proof at 10-55 Hz and shock-proof up to 50 g
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Initial equipment of large machining centres and systems with high lighting demands
• Machine tools such as lathes, milling and grinding machines
• Woodworking machines
• Integrated manufacturing and test systems

Installation and accessories

• Mounting with L-angle, clamp or luminaire bracket (adjustable +/-30°, as a set +/-65°, with rubber profile) from the accessories
• Mains connection via built-in plug series 814
• Matching accessories: connection sockets, connecting plugs, connection cables 3 m or 7 m (5 x 0.5 mm²) and protective cap set
