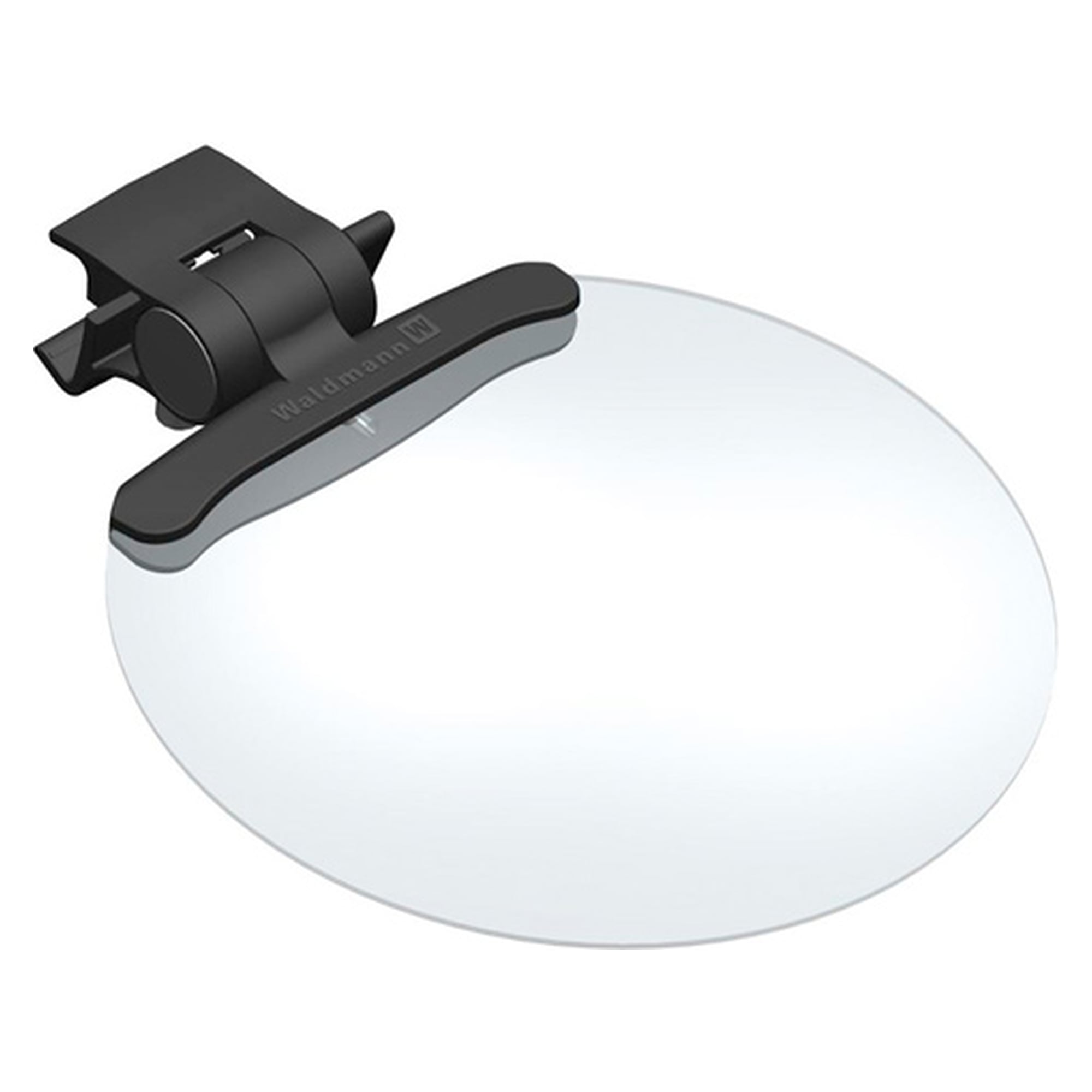

Magnifier for TANEO, 3.5 dioptres, ø 132 mm, plastic lens - Waldmann 190207019-00575900
Item WAL-190207019-00575900
€142.63
Images are examples, some edited with AI. The technical data are authoritative. AI notice
LED arm-mounted luminaire TANEO TND 1400/D50/D, 1300 lm, D50 standard light, CRI 95, spigot - Waldmann 113735000-00810083
Waldmann
✓ Original product Brand new Made in Germany
TANEO LED arm-mounted luminaire with D50 standard light, CRI ≥ 95, R9 ≥ 85 and approx. 1300 lm. Mounted via Ø 16 mm spigot with screw-down flange or table clamp. For colour inspection and surface checks in quality assurance. Waldmann grants a 20-year manufacturer's warranty on this luminaire.
Net
excl. VAT
€620.15
Item
WAL-113735000-00810083
Manufacturer no.
113735000-00810083
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Quality assurance has to spot colour deviations reliably, even on larger parts. The TANEO TND 1400/D50/D combines D50 standard light with CRI ≥ 95 and approx. 1300 lm with a spring-balanced arm that is fixed firmly to the workbench via a spigot.
Benefits
- D50 standard light at approx. 5000 K with CRI ≥ 95 and R9 ≥ 85 renders hues and reds reliably for colour matching and visual inspection.
- Approx. 1300 lm at approx. 27 W and approx. 54 lm/W, enough light for detailed work right under the head.
- Matt cover and 110° beam angle give a wide, even light field, also on larger workpieces.
- Spring-balanced arm: the head can be positioned with one hand and stays where it is set.
- 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)
Applications
- Surface and paint inspection
- Printing, textile and plastics processing
- Colour matching and sample checks
Installation and accessories
- Fastening: spigot Ø 16 mm, screw-down flange, table clamp as accessory
- Mains 100-240 V, 50/60 Hz via power supply (24 V secondary), lead approx. 3.4 m with mains plug CEE 7/VII
- Matching table clamps: TK 1/45 (0-45 mm), TK 1/65 (0-65 mm), TK 1/165 (95-165 mm), table clamp 65-135 mm
- Series accessories: TANEO wall bracket, magnifier 3.5 dpt (ø 132 mm, plastic lens), magnifier 4 dpt (100 x 50 mm, glass lens)
Technical data
| Manufacturer part no. | 113735000-00810083 |
|---|---|
| Order number | 00810083 |
| EAN | 4013330131579 |
| Connected load | 100-240 V, AC, 50 Hz, 60 Hz |
| Work equipment | Electronic transformer |
| Secondary tension | 24 V |
| Power consumption | approx. 27 W |
| Sec. power consumption | approx. 21 W |
| Luminous flux | approx. 1300 lm |
| Luminous efficiency | approx. 54 lm/W |
| Light type/-color | D50 standard light, Neutral white |
| Colour temperature | approx. 5000 K |
| Color rendering index | CRI ≥ 95, R9 ≥ 85 |
| Light distribution | Direct, approx. 100 % |
| Beam angle | 110° |
| Glare control | Without |
| Light source | LED |
| Chromaticity tolerance LED | < 3 SDCM |
| At-risk group | RG0/1 |
| Luminance (L65) | ≤ 23,000 cd/m² |
| UGR class (4H 8H, EN 12464-1) | ≤ 28 |
| System of protection/Class | IP 20, I with plug-in power supply, III without plug-in power supply |
| Technology | Touch DIM |
| Operation | Multi-function switch |
| Housing | Aluminium coloured anodised |
| Light source cover | Milky, Plastic |
| Arm | Aluminium coloured anodised |
| Balance of articulation joints | Spring |
| Mains lead | approx. 3.4 m, Mains plug, CEE 7/VII |
| Fastening | Spigot Ø 16 mm, Table clamp (accessory), Screw-down flange |
| Decorative contrast side parts | Black |
| Weight without/incl. packaging | 1.9 kg / approx. 3.7 kg |
| Packaging dimensions | 865 mm, approx. 420 mm, 102 mm |
| Manufacturer's warranty | 20 years (Waldmann general warranty terms) |
| Weight | 3.7 kg |
| Manufacturer | Waldmann |
| Hersteller-Nr | 113735000-00810083 |
| Zolltarifnummer | 94052140 |
| GPSR manufacturer information | WALDMANN Lichttechnik Peter-Henlein-Straße 5 DE-78056 Villingen-Schwenningen |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Verkaufseinheit | 1 Stück |
| Colour | Silver |
| Farbe | Aluminiumfarben |
| Lichtstrom (Lumen) | 1300 lm |
| Power | 27 W |
| Farbwiedergabe (Ra) | Ra 95 |
| Abstrahlwinkel | 110° |
| Montageart | Tischklemme |
| Operating voltage | 100-240 V |
| Series | TANEO |
| Protection rating | IP20 |
Downloads
Accessories
Waldmann

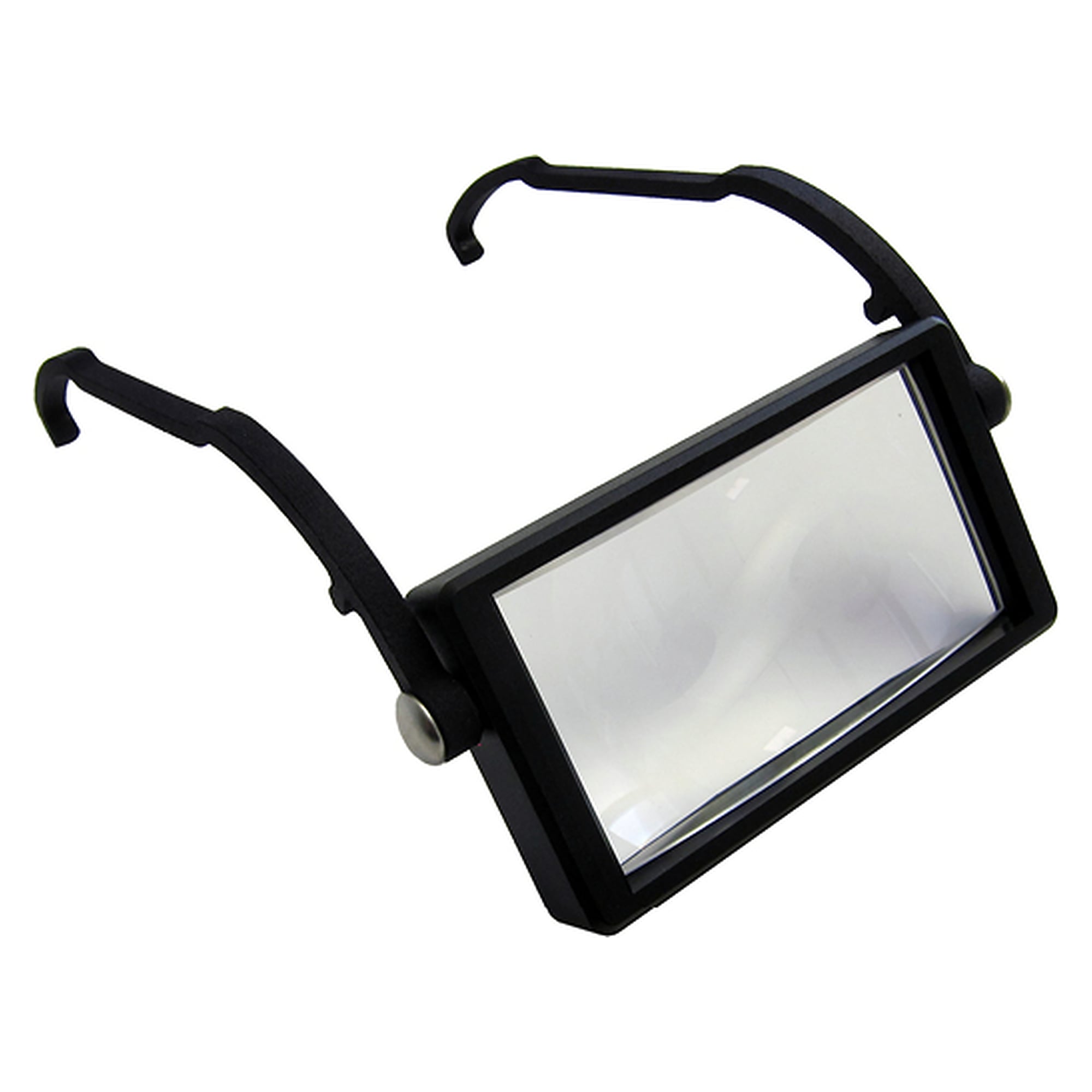

Magnifier for TANEO, 4 dioptres, 100 x 50 mm, glass lens - Waldmann 190211019-00645199
