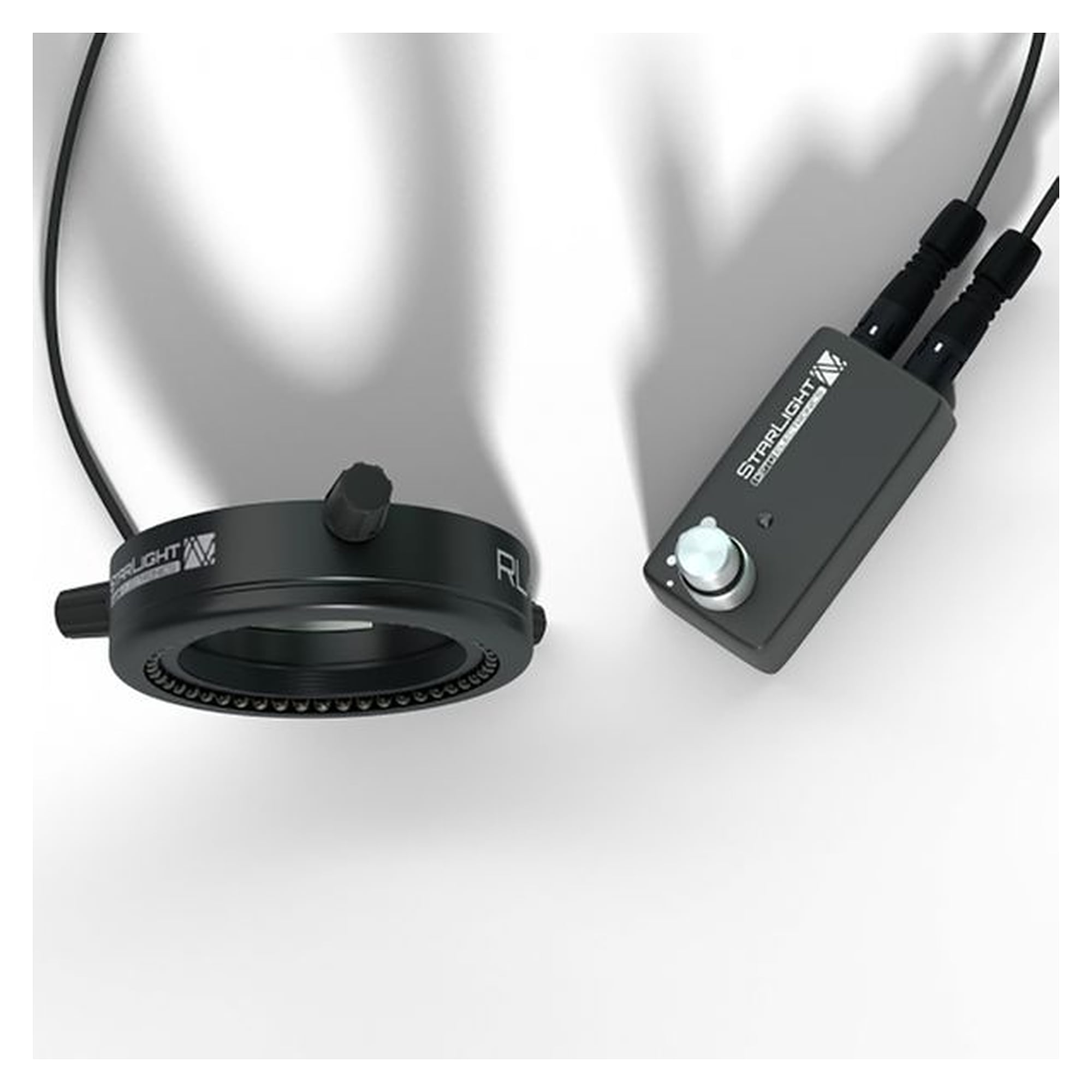

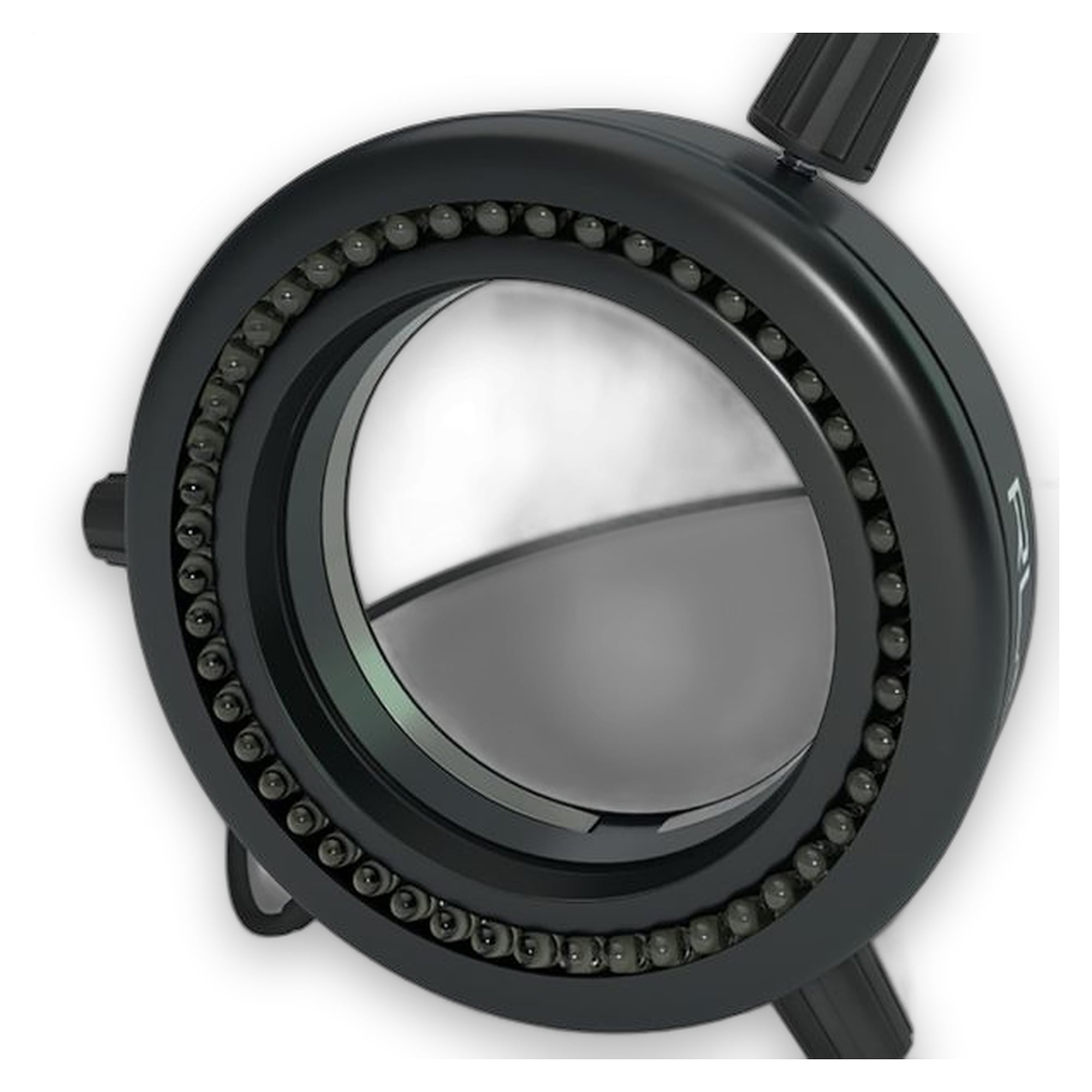

LED ring light RL4-66 UV405 with 48 UV LEDs (405 nm) for special inspection and fluorescence applications at the microscope. It mounts easily on the objective via the M67 x 0.75 internal thread, with a clamping diameter of max. 66 mm.
LED Ring Light UV and IR RL4-66 UV405, UV 405 nm, 48 LEDs, clamping diameter max. 66 mm - Starlight RL4-66 UV405
STARLIGHT
Original product
Net price (excl. VAT)
€429.00
Item
STL-100-010132
Manufacturer no.
100-010132
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.100-010132
ConditionNew
Artikel
STL-100-010132
The RL4-66 UV405 LED ring light from Starlight illuminates the work area with 48 UV LEDs (405 nm) and suits UV and IR applications such as fluorescence and material inspection. It mounts as incident light on the objective and covers a working distance from 50 mm to 150 mm.
Benefits
- UV light (405 nm) for fluorescence and special inspection
- 48 LEDs for even illumination
- M67 x 0.75 internal thread for easy mounting
- Working distance 50 mm - 150 mm (optimal 80 mm)
- Rugged anodised aluminium housing
Technical data
| Model | RL4-66 UV405 |
| Light colour | UV (405 nm), IR |
| Number of LEDs | 48 |
| Working distance | 50 mm - 150 mm |
| Optimal working distance | 80 mm |
| Outer diameter | 99 mm |
| Inner diameter | 66 mm |
| Clamping diameter | max. 66 mm |
| Height | 25.5 mm |
| Internal thread | M67 x 0.75 |
| Supply lead length | 0.85 m |
| Cable length | 1.4 m |
| Power consumption | 7 W |
| Material | anodised aluminium |
| Manufacturer part no. | 100-010132 |
| ESD safe | No |
Applications
For UV and IR assisted inspection, fluorescence testing, material control and microscopy in the laboratory and quality assurance.
| Hersteller-Nr | 100-010132 |
|---|---|
| Manufacturer | Starlight |
| Weight | 0.100000 |
| GPSR manufacturer information | STARLIGHT Opto-Electronics Flachslander Straße 8 DE-90431 Nürnberg www.starlight-sl.de |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
