Bracket 100x100 ESD, Diecast Aluminum, Slot 10 - Bosch Rexroth 3842530361
Bosch Rexroth
✓ Original product Brand new Made in Germany
Bracket for joining aluminum profiles with slot 10 at right angles. ESD-capable diecast aluminum, vibratory ground, rated for high bending and torsional loads. Fastening material included for direct mounting.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Bosch Rexroth bracket 100x100 connects slot 10 aluminum profiles at a rigid right angle and is suited to load-bearing frames and structures in machine and fixture construction. The ESD version dissipates electrostatic charges, making it suitable for areas with electrostatic discharge sensitive components.
- High rigidity from diecast aluminum, vibratory ground
- ESD-capable for use at EPA workstations
- Load rated up to 1100 Nm bending moment
- Fastening material included, no extra parts required
Technical data
| Profile slot | 10 |
|---|---|

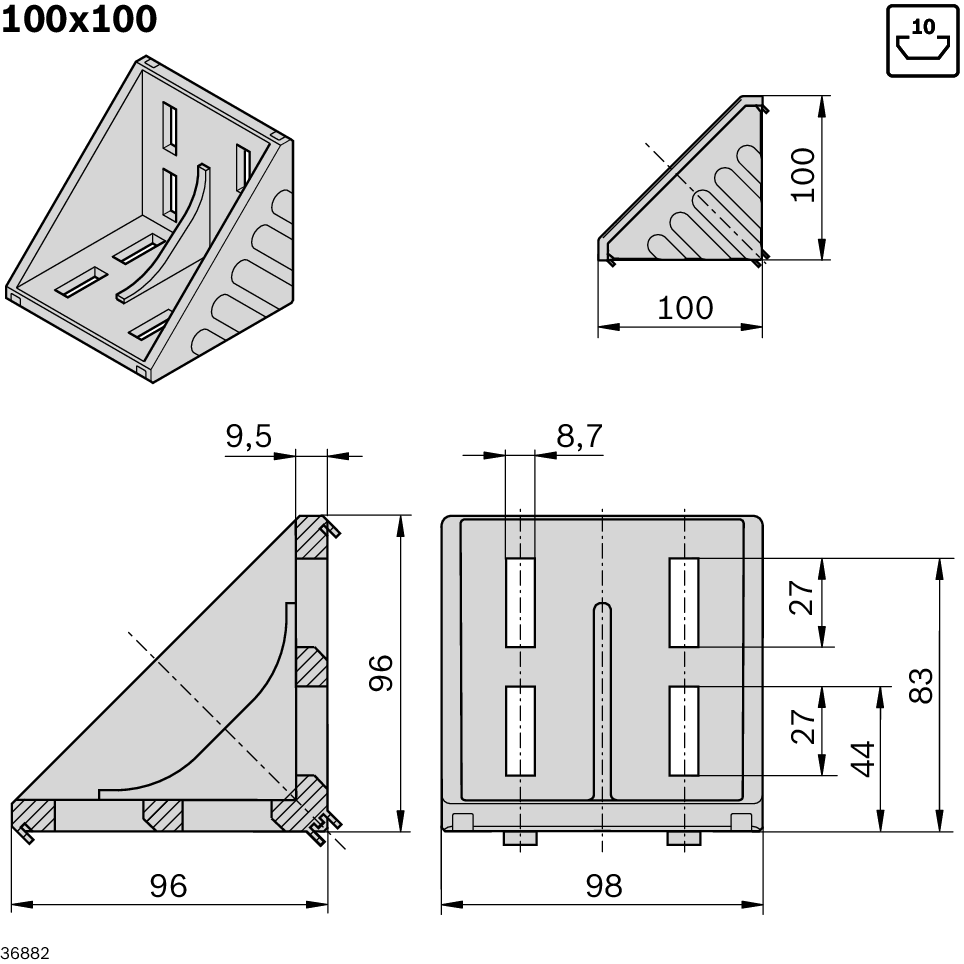

| Dimensions | 100x100 |
| ESD | yes |
| Torsional moment | 480 Nm |
| Bending moment 1 | 550 Nm |
| Bending moment 2 | 1100 Nm |
| Fastening material | 8x T-bolt M8x25, 8x flange nut M8 |
| Material | Diecast aluminum, vibratory ground |
| Scope of delivery | incl. fastening material (FS), bracket (standard) |
| Recommended accessories | Cover cap for bracket 100x100, signal gray (3842548874), black (3842548875) |
| Weight | 0.633 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842530361 |
| Zolltarifnummer | 76169910 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
