The product may differ from the illustration
Anodized aluminum frame profile with a 22.5 x 30 mm cross-section and slot 8, cut to variable length (50 mm to 6070 mm) for Bosch Rexroth workstation and manual assembly systems. Compatible with the full range of Rexroth system accessories including bracket set M6. Mass: 0.9 kg/m, profile surface area 3.2 cm².
Rahmenprofil 22,5x30, Aluminium eloxiert, Nut 8, variable Länge - Bosch Rexroth 3842992493-1000
BOSCH REXROTH Original product
Net price (excl. VAT)
€21.90 €18.40
Item BRR-3842992493-1000
Manufacturer no. 3842992493-1000
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842992493-1000
Country of originGermany
Customs tariff number76042100
ConditionNew
Artikel
BRR-3842992493-1000
Frequently Bought Together
- This Item: €21.90 €18.40

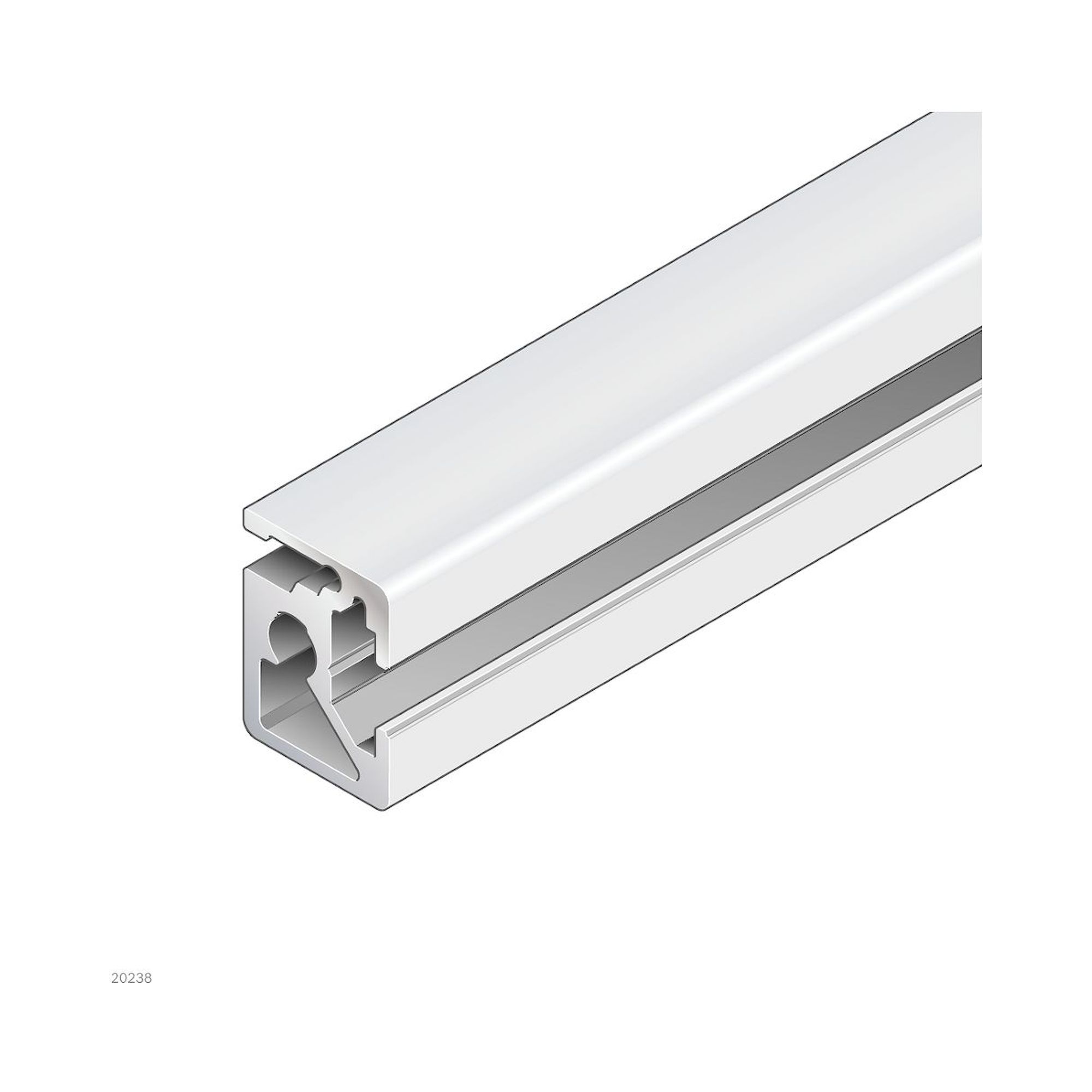

- Eckstück 22,5x30 Signalgrau, PA, Profilnut 8 - Bosch Rexroth 3842554708 €3.88 €3.26
The Frame Profile 22.5x30 in anodized aluminum serves as a structural building block for workstations and manual production systems in the Bosch Rexroth assembly technology range. Slot 8 accepts all system-compatible connectors, brackets and attachments without modification. Profiles are supplied cut to length on order (50 mm to 6070 mm), eliminating offcut waste.
- Variable cut length 50-6070 mm - delivered to exact dimension
- Slot 8 compatible with the complete Bosch Rexroth system accessory range
- Anodized aluminum - corrosion-resistant for long service life in production environments
- Area moments of inertia Ix 1.7 cm⁴ / Iy 3.0 cm⁴ for rigid frame structures
- Recommended accessories: bracket set M6, swivel fastening, lettering clip for 8 mm slot, cover caps 22.5x30 in black or signal gray
Technical data
| Property | Value |
|---|---|
| Cross-section | 22.5 x 30 mm |
| Material | Aluminum, anodized |
| Profile slot | 8 |
| Length min. [L min] | 50 mm |
| Length max. [L max] | 6070 mm |
| Condition on delivery | Variable length |
| Delivery unit | 1 |
| Profile surface [A] | 3.2 cm² |
| Mass [m] | 0.9 kg/m |
| Area moment of inertia X [Ix] | 1.7 cm⁴ |
| Moment of resistance X [Wx] | 1.5 cm³ |
| Area moment of inertia Y [Iy] | 3.0 cm⁴ |
| Moment of resistance Y [Wy] | 2.0 cm³ |
| ESD-Ausführung | TEC |
|---|---|
| Hersteller-Nr | 3842992493-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Hinweis | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| Zolltarifnummer | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
