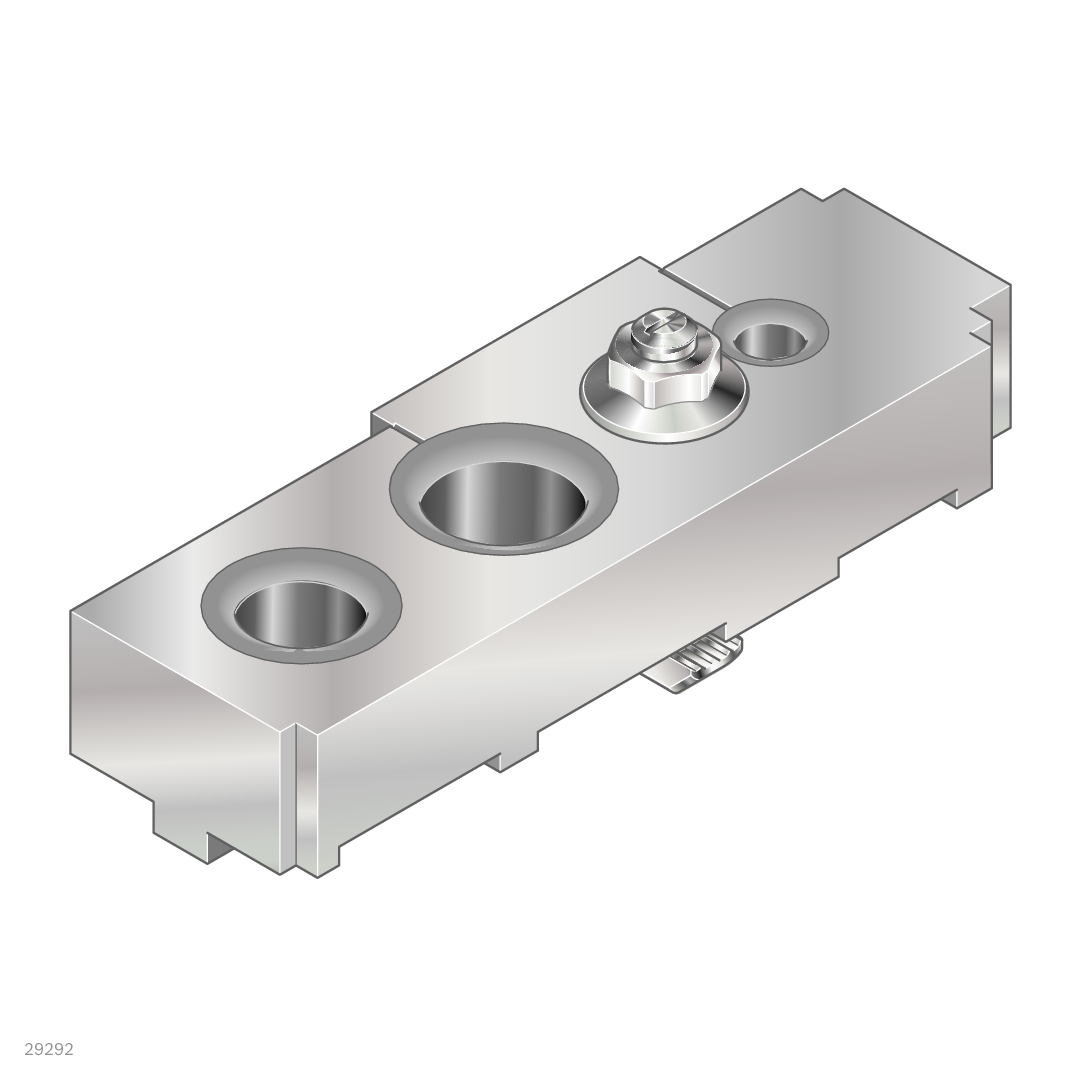

This drilling jig positions the through-holes and fastening holes when joining aluminium profiles with slot 10. Designed for 40 and 50 mm grid dimensions with T50 hexagonal-star access. Supplied with fastening material for mounting in the profile slot.
Bohrvorrichtung T50 für Nut 10, Rastermaß 40/50, Stahl verzinkt - Bosch Rexroth 3842530400
BOSCH REXROTH Original product
Net price (excl. VAT)
€215.84 €181.38
excl. Shipping Cost
Item BRR-3842530400
Manufacturer no. 3842530400
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842530400
Country of originGermany
Customs tariff number90178090
ConditionNew
Artikel
BRR-3842530400
Frequently Bought Together
- This Item: €215.84 €181.38excl. Shipping Cost
- Schwenklager 40x40 designLINE, ESD, Aluminium lackiert, Nut 10 - Bosch Rexroth 3842554412 €38.01 €31.94excl. Shipping Cost
- Verbindungselement für Schutzgitterprofil, PA schwarz - Bosch Rexroth 3842305768 €3.27 €2.75excl. Shipping Cost
The Bosch Rexroth drilling jig is used to accurately mark and drill the through-holes and fastening holes when joining aluminium profiles with slot 10. It supports grid dimensions of 40 mm and 50 mm and is intended for users in profile construction and assembly technology.
- Through-holes ø 9.8 mm for T50 hexagonal-star socket screwdrivers
- Fastening holes ø 17 mm for bolt connectors, quick connectors and threaded sleeves
- Secured in the profile slot with the supplied fastening material
- Galvanized steel for lasting corrosion protection
Technical data
| Material | Steel, galvanized |
| Profile slot | 10 |
| Modular dimension | 40 mm |
| Modular dimension 02 | 50 mm |
| Through-hole | ø 9.8 mm (T50) |
| Fastening hole | ø 17 mm |
| Fastening material | 1x T-bolt HS10-M8x50, 1x flange nut 10 M8 |
| Scope of delivery | Incl. fastening material |
| Packaging unit | 1 |
| Weight | 0.085 kg |
| Hersteller-Nr | 3842530400 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.085000 |
| Zolltarifnummer | 90178090 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
