Drilling jig T25 for slot 8, galvanized steel - Bosch Rexroth 3842528577

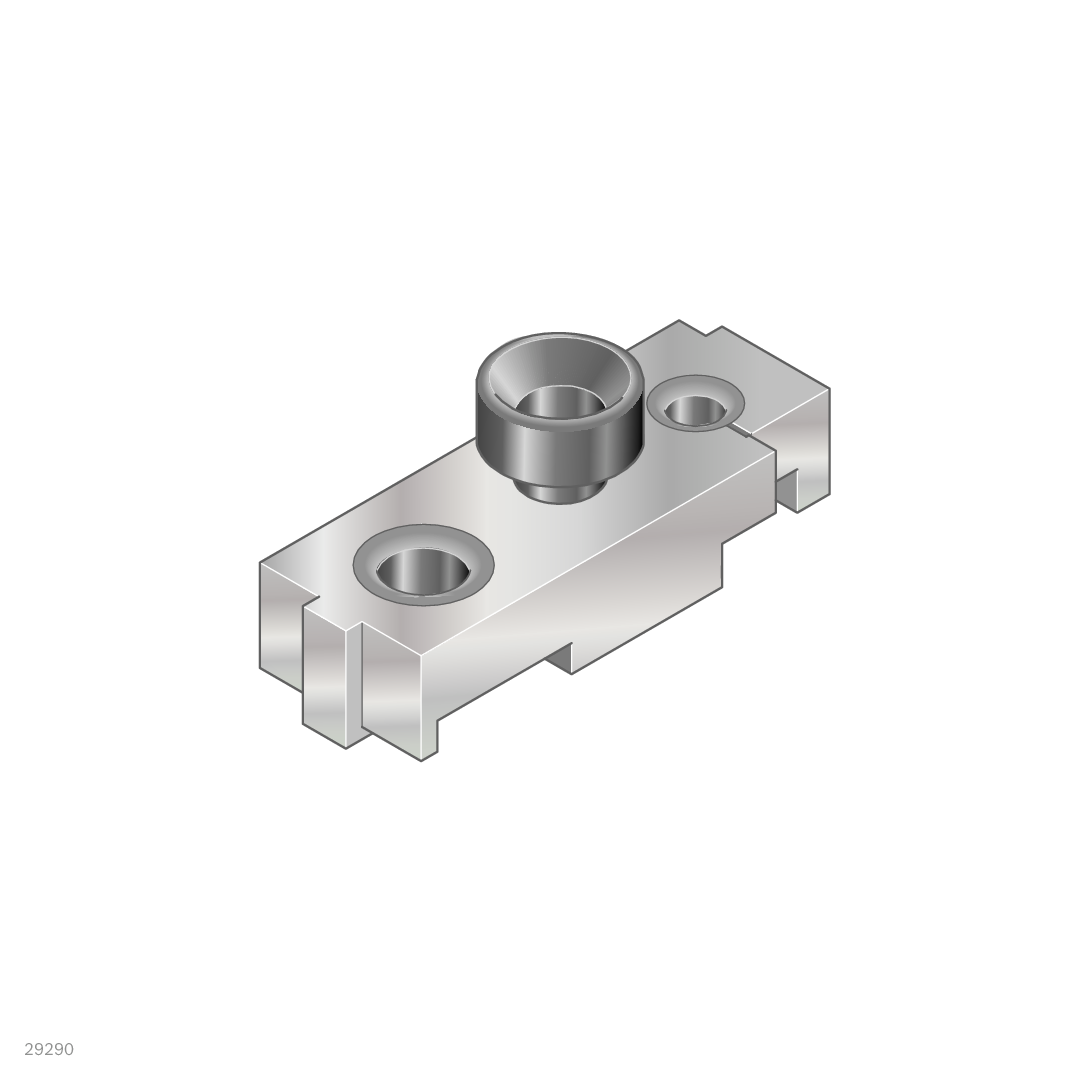

Drilling jig T25 for slot 8, galvanized steel - Bosch Rexroth 3842528577 Dimensional drawing 3842528577

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Drilling jig T25 for slot 8, galvanized steel - Bosch Rexroth 3842528577

Bosch Rexroth ✓ Original product Brand new Made in Germany

The T25 drilling jig positions holes accurately on aluminum profiles with slot 8. It guides the drill for through-holes ø 7.8 mm and fastening holes ø 11 mm. It is secured tool-free in the profile groove using the supplied clamping lever.

Net
€168.96
excl. VAT
Item BRR-3842528577
Manufacturer no. 3842528577
Save Compare
Question about this item
Datasheet (PDF) 2 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Bosch Rexroth T25 drilling jig enables accurate and repeatable placement of through-holes and fastening holes on aluminum profiles with slot 8. It is intended for users in machine and fixture construction who need to mount connecting and connection elements with process reliability.

  • Repeatable hole patterns for connecting and connection elements
  • Tool-free fixing in profile slot 8 via clamping lever
  • Through-holes ø 7.8 mm for T40 screwdrivers
  • Fastening holes ø 11 mm for quick connectors
  • Galvanized steel for corrosion protection

Technical data

MaterialSteel, galvanized
Profile slot8
Through-holesø 7.8 mm (for T40 screwdrivers)
Fastening holesø 11 mm (for quick connectors)
Scope of deliveryincl. fastening material (FS)
Fastening material1x clamping lever M6x25, 1x T-nut slot 8 M6
Packaging unit1
Weight0.282 kg
ManufacturerBosch Rexroth
Hersteller-Nr3842528577
Zolltarifnummer82055980
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
