Drilling Jig Slot 10 for Miter-Cut Profiles, ø 17 - Bosch Rexroth 3842516731

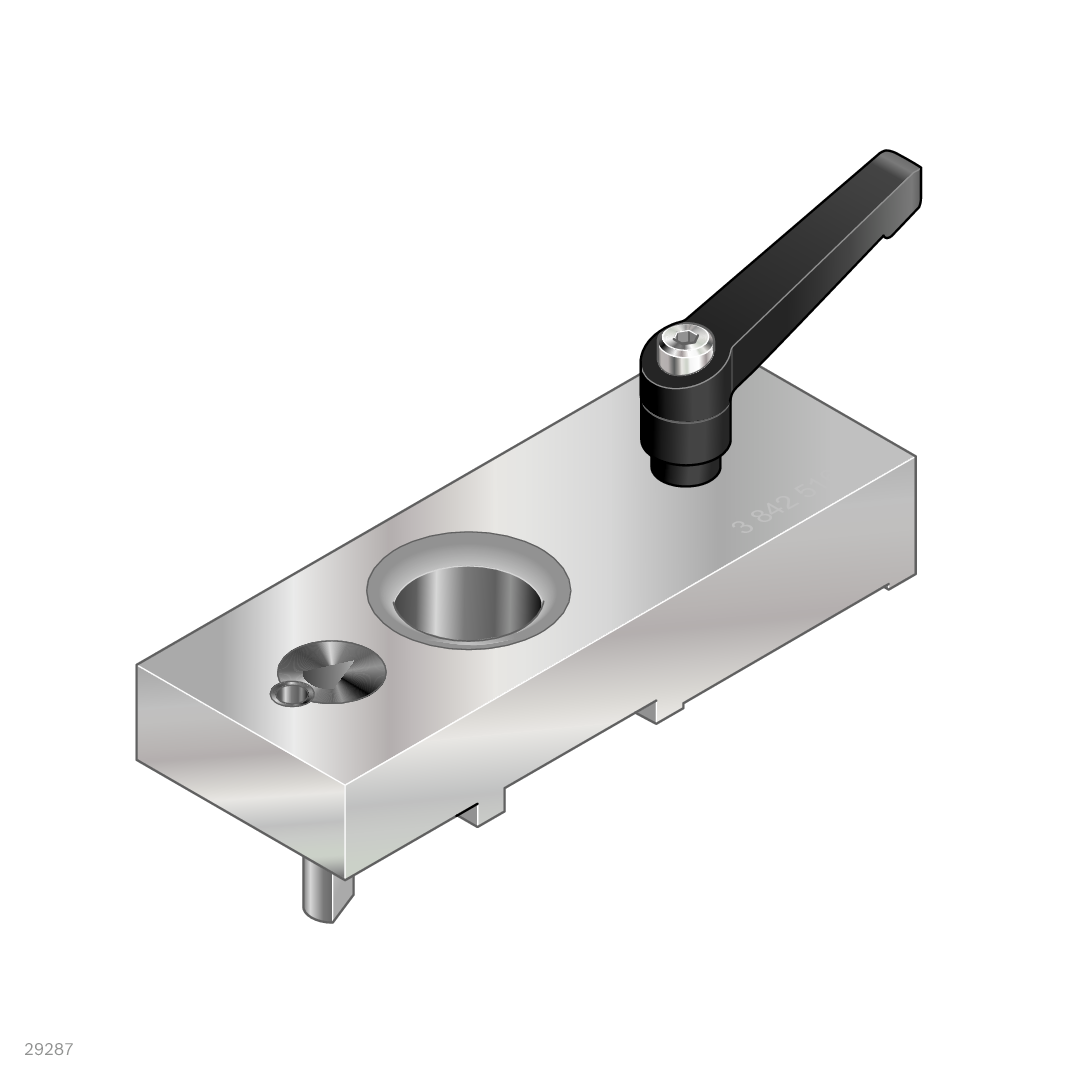

Drilling Jig Slot 10 for Miter-Cut Profiles, ø 17 - Bosch Rexroth 3842516731 Dimensional drawing 3842516731

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Drilling Jig Slot 10 for Miter-Cut Profiles, ø 17 - Bosch Rexroth 3842516731

Bosch Rexroth ✓ Original product Brand new Made in Germany

This aluminum drilling jig sets the fastening holes (ø 17) precisely on miter-cut profiles with slot 10. It positions the bore exactly for bendable quick connectors. Supplied with clamping lever and T-nut.

Net
€131.96
excl. VAT
Item BRR-3842516731
Manufacturer no. 3842516731
Save Compare
Question about this item
Datasheet (PDF) 2 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

This aluminum drilling jig sets the fastening holes (ø 17) precisely on miter-cut profiles with slot 10. It is aimed at assembly and fixture builders who need a reliable mount for bendable quick connectors.

  • Accurate positioning of the ø 17 bore for bendable quick connectors
  • Designed specifically for miter-cut profiles with slot 10
  • Includes fastening material for immediate use

Technical data

MaterialAluminum
Profile slot10
Hole diameterø 17 mm
Scope of deliveryIncl. fastening material
Fastening material1x clamping lever GN300-45-M6, 1x T-nut groove 10 M6
Packaging unit1
Weight0.334 kg
ManufacturerBosch Rexroth
Hersteller-Nr3842516731
Zolltarifnummer90178090
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
