Extruded anodized aluminum strut profile D28 for manual assembly systems and workstation structures. Symmetric area moments of inertia (Ix = Iy = 1.5 cm⁴), supplied cut to variable length from 50 mm to 6070 mm. Compatible with Lettering Clip accessory.

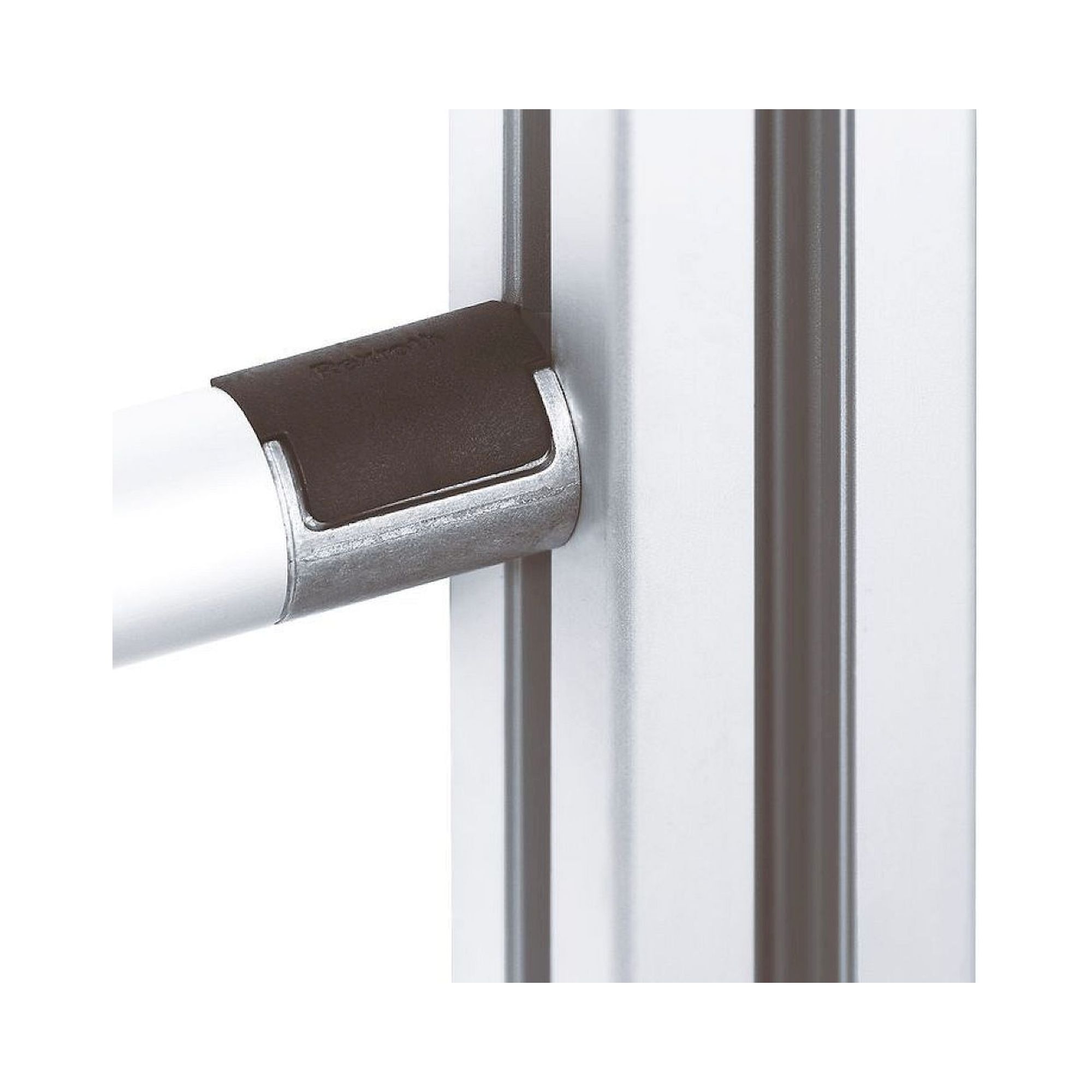

Strut Profile D28, Variable Length 50-6070 mm, Anodized Aluminum - Bosch Rexroth 3842993317-1000
BOSCH REXROTH
Original product
Net price (excl. VAT)
€17.77
Item
BRR-3842993317-1000
Manufacturer no.
3842993317-1000
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842993317-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842993317-1000
The Bosch Rexroth Strut Profile D28 is an anodized aluminum profile for building manual production systems, workstations, and lean-assembly structures. Supplied cut to the required length, it eliminates fixed-length waste and simplifies adaptation to individual workstation dimensions.
- Variable cut length: 50 mm to 6070 mm - ordered to exact length, ready for direct installation.
- Symmetric cross-section: Ix = Iy = 1.5 cm⁴ and Wx = Wy = 1.1 cm³ deliver equal bending stiffness in both principal axes.
- Low linear mass: 0.7 kg/m - keeps overall workstation weight low without compromising structural rigidity.
- Anodized surface: Corrosion-resistant finish suited to industrial assembly environments.
- Lettering Clip compatible: Recommended accessory enables clear, tool-free labeling directly on the profile.
Technical data
| Property | Value |
|---|---|
| Material | Aluminum, anodized |
| Condition on delivery | Variable length |
| Length min [L min] | 50 mm |
| Length max [L max] | 6070 mm |
| Profile surface [A] | 2.4 cm² |
| Mass [m] | 0.7 kg/m |
| Area moment of inertia X [Ix] | 1.5 cm⁴ |
| Area moment of inertia Y [Iy] | 1.5 cm⁴ |
| Moment of resistance X [Wx] | 1.1 cm³ |
| Moment of resistance Y [Wy] | 1.1 cm³ |
| Delivery unit | 1 |
| Recommended accessories | Lettering Clip |
| ESD version | TEC |
|---|---|
| Hersteller-Nr | 3842993317-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
