Strut Profile D28, Variable Length 50-6070 mm, Anodized Aluminum - Bosch Rexroth 3842993317-1000
Item BRR-3842993317-1000
€17.77
Images are examples, some edited with AI. The technical data are authoritative. AI notice
Strut Profile D28, Anodized Aluminum, 50-6070 mm Cut-to-Length - Bosch Rexroth 3842993317
Bosch Rexroth
✓ Original product Brand new Made in Germany
Round anodized aluminum strut profile D28 for manual assembly systems, cut to any length between 50 mm and 6070 mm. The anodized finish provides lasting corrosion resistance at a linear mass of 0.7 kg/m. Recommended accessory: Lettering Clip.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Strut Profile D28 is a round aluminum profile for use in manual assembly systems and workstation structures within the Bosch Rexroth assembly technology range. Supplied as variable-length stock, it is cut to the required dimension between 50 mm and 6070 mm.
- Cut to order: any length from 50 mm to 6070 mm
- Anodized aluminum: permanent corrosion protection, no surface treatment needed on site

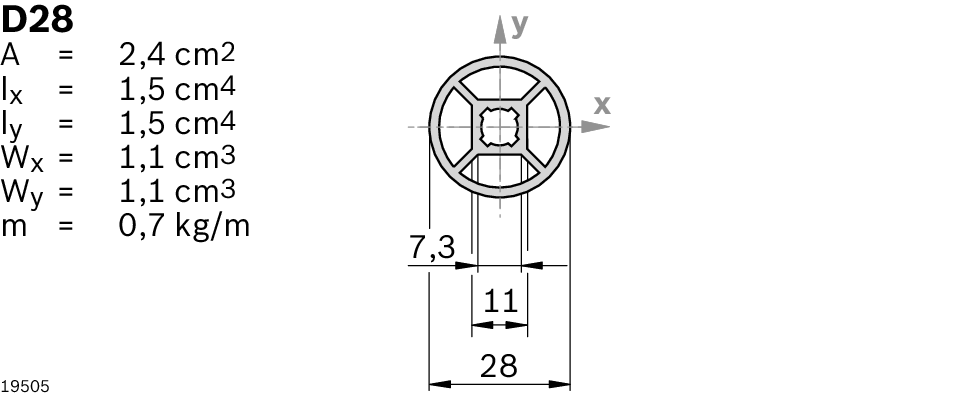

- Symmetrical cross-section: equal bending stiffness in both x and y directions (Ix = Iy = 1.5 cm⁴)
- Low linear mass of 0.7 kg/m for easy handling and integration
Technical data
| Property | Value |
|---|---|
| Material | Aluminum, anodized |
| Condition on delivery | Variable length |
| Length min [L min] | 50 mm |
| Length max [L max] | 6070 mm |
| Profile surface [A] | 2.4 cm² |
| Area moment of inertia in x-direction [Ix] | 1.5 cm⁴ |
| Area moment of inertia in y-direction [Iy] | 1.5 cm⁴ |
| Moment of resistance in x-direction [Wx] | 1.1 cm³ |
| Moment of resistance in y-direction [Wy] | 1.1 cm³ |
| Mass [m] | 0.7 kg/m |
| Delivery unit | 1 |
| Recommended accessories | Lettering Clip |
| Weight | 0.7 kg |
| Manufacturer | Bosch Rexroth |
| Hersteller-Nr | 3842993317 |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
