Anodized aluminum strut profile D28x55 for manual assembly systems and shelving structures. Available in variable lengths from 100 to 6070 mm, with a unit mass of 1.6 kg/m. Designed for use as a crossbeam or structural strut within the Bosch Rexroth assembly technology system.

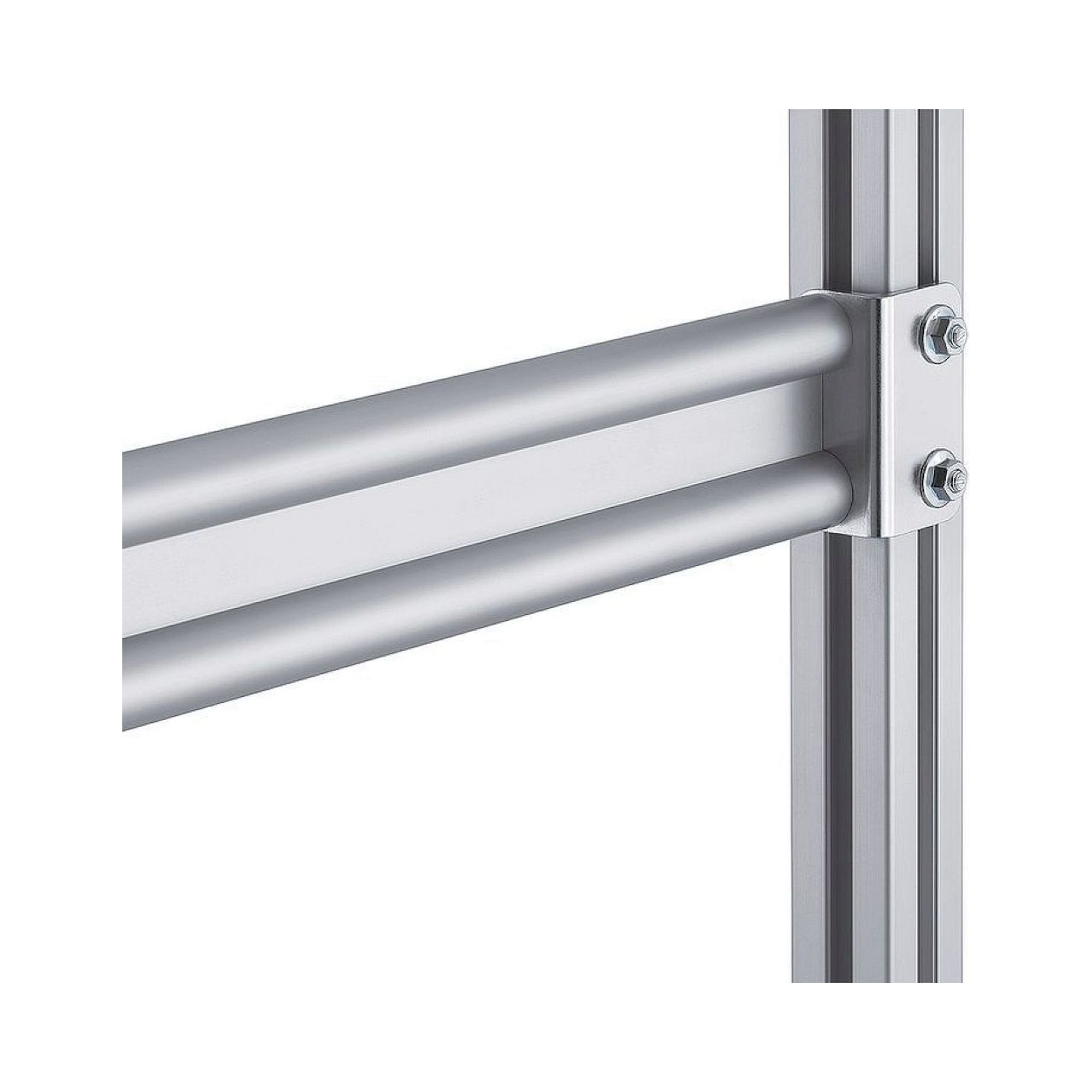

Strut Profile D28x55, Variable Length 100-6070 mm - Bosch Rexroth 3842993489-1000
BOSCH REXROTH
Original product
Net price (excl. VAT)
€38.10
Item
BRR-3842993489-1000
Manufacturer no.
3842993489-1000
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842993489-1000
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842993489-1000
The strut profile D28x55 is an aluminum structural profile for manual production and shelving systems in the Bosch Rexroth assembly technology range. It serves as a crossbeam or diagonal strut and can be ordered in variable lengths to match exact assembly dimensions.
- Variable length from 100 to 6070 mm - cut to size on order
- Anodized aluminum finish: corrosion-resistant and surface-protected
- High bending stiffness in the y-direction: area moment of inertia ly = 88.3 cm⁴, moment of resistance Wy = 23.1 cm³
- Profile cross-section area 5.9 cm², mass 1.6 kg per meter
- Recommended accessory: Lettering Clip for labeling
Technical data
| Parameter | Value |
|---|---|
| Material | Aluminum, anodized |
| Condition on delivery | Variable length |
| Length min [L min] | 100 mm |
| Length max [L max] | 6070 mm |
| Mass [m] | 1.6 kg |
| Profile surface [A] | 5.9 cm² |
| Area moment of inertia in x-direction [lx] | 3.2 cm⁴ |
| Moment of resistance in x-direction [Wx] | 2.3 cm³ |
| Area moment of inertia in y-direction [ly] | 88.3 cm⁴ |
| Moment of resistance in y-direction [Wy] | 23.1 cm³ |
| Delivery unit | 1 |
| Recommended accessories | Lettering Clip |
| ESD version | TEC |
|---|---|
| Hersteller-Nr | 3842993489-1000 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
