Extruded anodized aluminum strut profile D28x55 for shelving systems and manual assembly workstations. Available cut-to-length between 100 mm and 6070 mm, with a moment of resistance of 23.1 cm³ in the y-direction for high bending stiffness. The anodized surface provides lasting corrosion and wear resistance.
Strut Profile D28x55, Anodized Aluminum, 100-6070 mm Cut-to-Length - Bosch Rexroth 3842993489
BOSCH REXROTH
Original product
Net price (excl. VAT)
€38.10
Item
BRR-3842993489
Manufacturer no.
3842993489
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842993489
Country of originGermany
Customs tariff number76169990
ConditionNew
Artikel
BRR-3842993489
The Bosch Rexroth strut profile D28x55 is an extruded aluminum profile for shelving systems and manual assembly workstations. It is supplied cut-to-length at any dimension between 100 mm and 6070 mm, eliminating on-site trimming and material waste. The anodized surface ensures long-term corrosion resistance in industrial environments.
- High bending stiffness in the y-direction: area moment of inertia ly = 88.3 cm⁴, moment of resistance Wy = 23.1 cm³
- Freely selectable cut length from 100 mm to 6070 mm - no offcut waste
- Anodized aluminum: corrosion-resistant, lightweight and maintenance-free
- Compatible with lettering clip for fast labeling of shelf sections

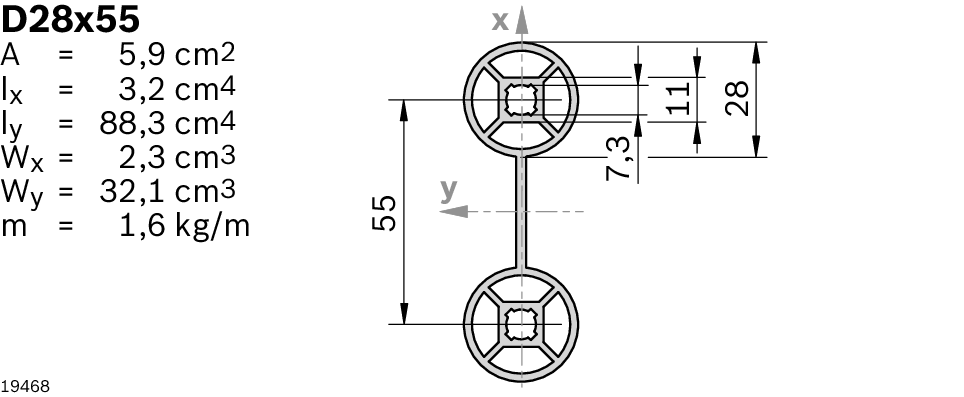

Technical data
| Property | Value |
|---|---|
| Material | Aluminum, anodized |
| Condition on delivery | Variable length |
| Length min [L min] | 100 mm |
| Length max [L max] | 6070 mm |
| Mass [m] | 1.6 kg/m |
| Profile surface [A] | 5.9 cm² |
| Area moment of inertia x-direction [lx] | 3.2 cm⁴ |
| Area moment of inertia y-direction [ly] | 88.3 cm⁴ |
| Moment of resistance x-direction [Wx] | 2.3 cm³ |
| Moment of resistance y-direction [Wy] | 23.1 cm³ |
| Delivery unit | 1 |
| Recommended accessories | Lettering Clip |
| Hersteller-Nr | 3842993489 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 1.600000 |
| Zolltarifnummer | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
