INROLED_70 LED tube light 354 mm 24V DC, Borosilikat protective tube, IP69K, cascadable - LED2WORK 115010-01

Images are examples, some edited with AI. The technical data are authoritative. AI notice

INROLED_70 LED tube light 354 mm 24V DC, Borosilikat protective tube, IP69K, cascadable - LED2WORK 115010-01

Name: INROLED_70 LED tube light 354 mm 24V DC, Borosilikat protective tube, IP69K, cascadable - LED2WORK 115010-01
Brand: LED2WORK
SKU: L2W-115010-01
Price: 115.37 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

Industrial-grade LED tube light with a borosilicate glass protective tube (Ø 70 mm) and micro-prisms glare control for bright, even illumination. IP67/IP69K rated, 24V DC, daisy-chainable, delivering 1000 lm.

Net

€115.37

excl. VAT

Item L2W-115010-01

Manufacturer no. 115010-01

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

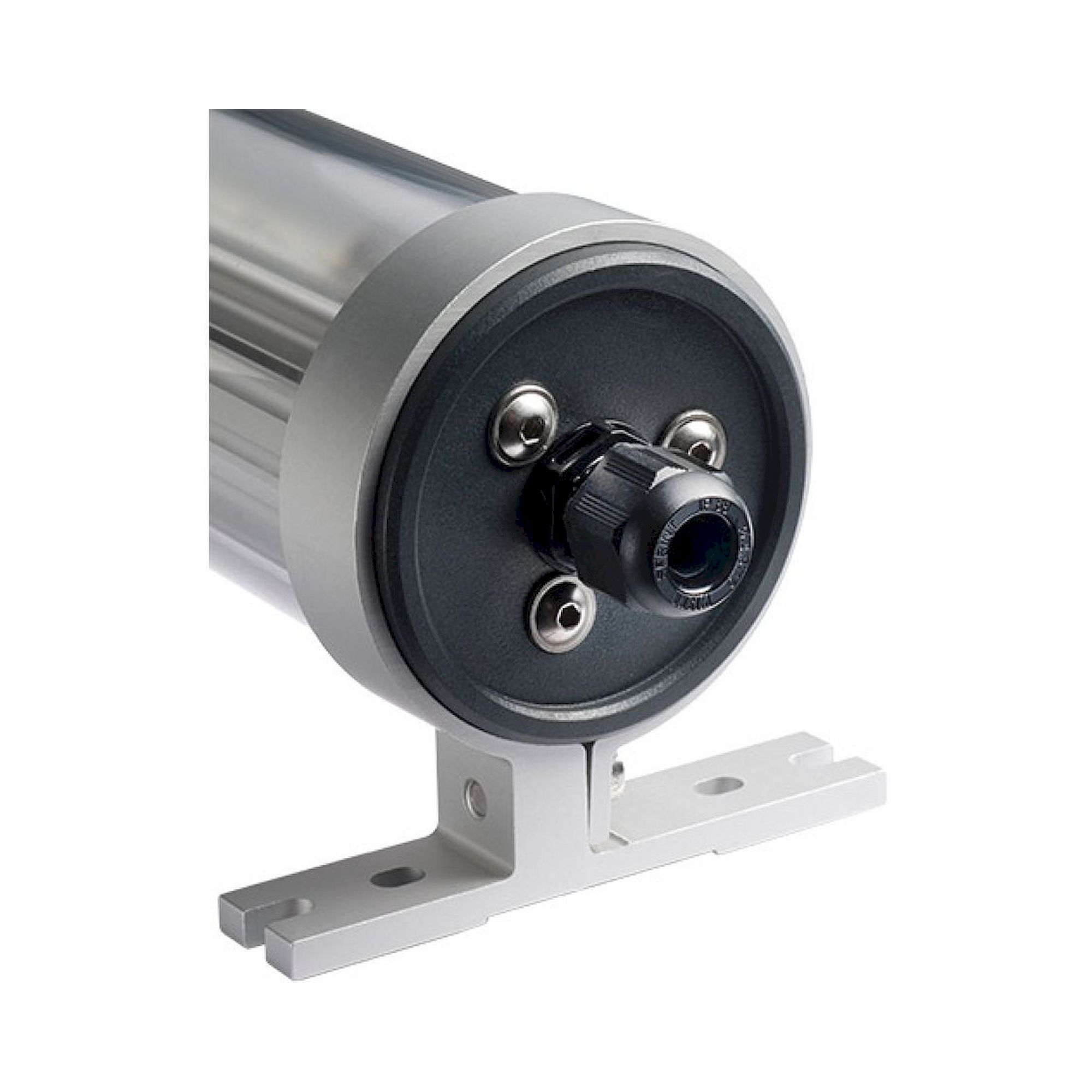

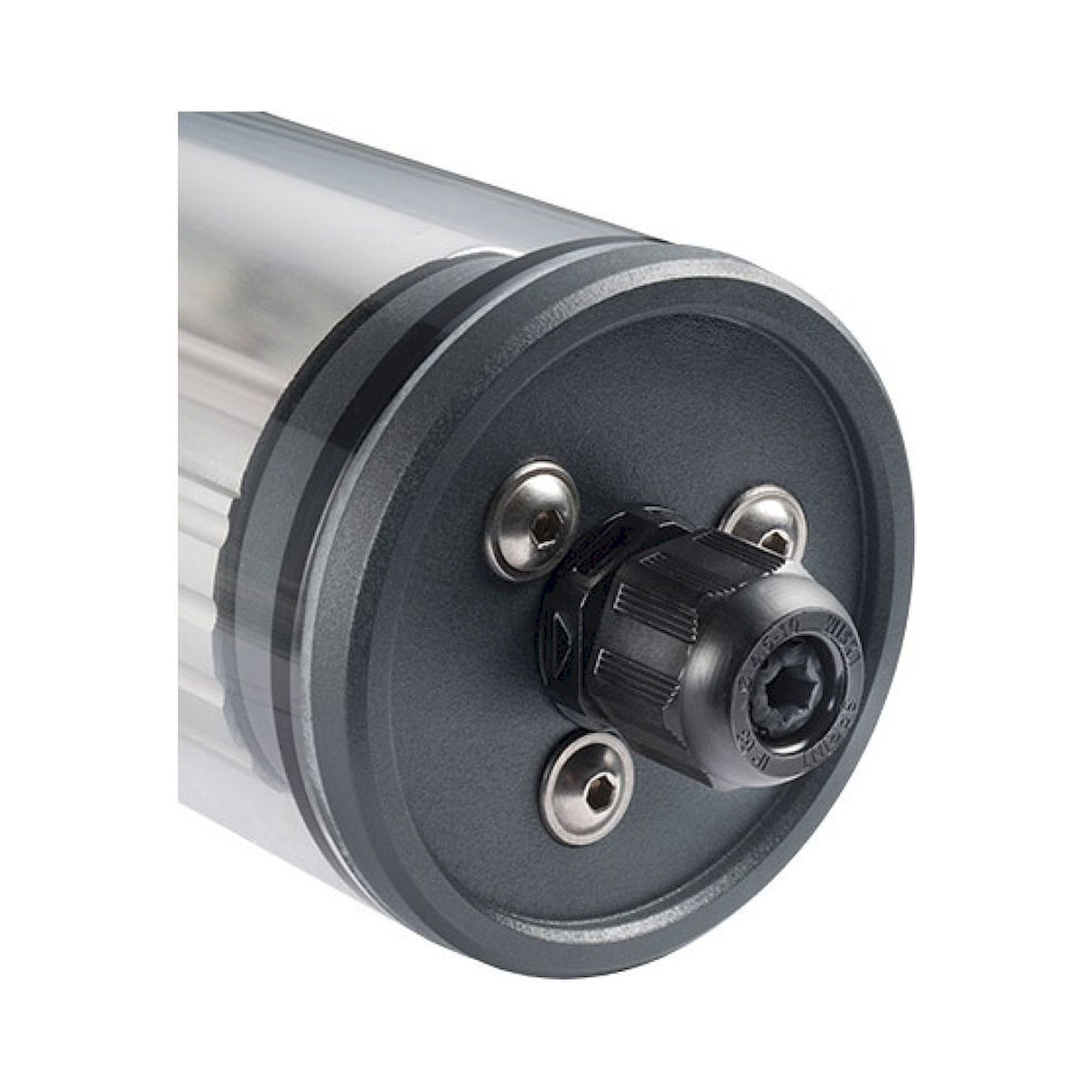

The INROLED_70 is a surface-mounted LED tube light with a borosilicate glass protective tube (Ø 70 mm) and micro-prisms glare control for bright, even illumination. At 354 mm in length it delivers 1000 lm and can be daisy-chained with further luminaires via pass-through wiring.

Key benefits

Bright, even illumination thanks to micro-prisms glare control
IP67/IP69K rated, suited to water, dust and humidity
Extruded aluminium profile for excellent heat dissipation
Daisy-chainable via WAGO terminals, up to 4.0 A DC total current draw at 40 °C
Long service life of more than 100,000 h (L80/B10)

Applications

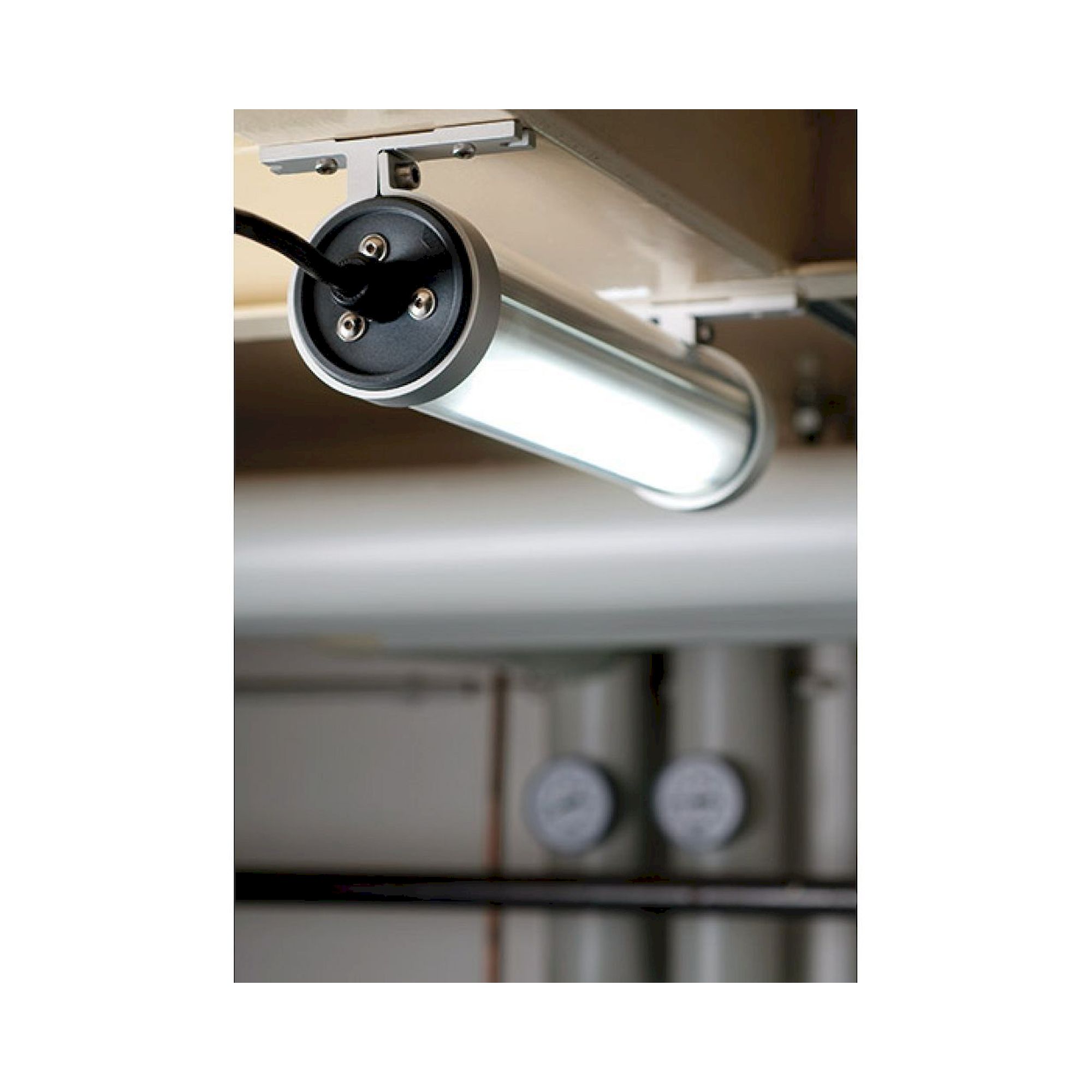

Lighting of machines and technical plant, logistics as well as building and facility services.

Technical data

Model	INROLED_70
Design	surface-mounted LED tube light
Light source	SMD LED
Power	~6,5 W
Luminous flux	1000 lm
Luminous efficacy	approx. 155 lm/W
Light colour	5700K 3-step MacAdam
Colour rendering (Ra)	>85
Supply voltage	24V DC ± 10%
Connection	cable entry, internal terminal
Protection rating (IP)	IP67/IP69K
Protection class	III
Glare control	micro-prisms
Beam angle	125°
Operating temperature	-10 °C to +45 °C
Service life	> 100,000 h (L80/B10)
Housing material	aluminium
Cover material	safety glass (borosilicate), shatter-resistant
Dimensions	Ø 70 mm, length 354 mm
Weight	1250 g
Risk group (DIN EN 62471)	exempt group
Certifications	CE, UKCA, ETL Listed (5003529)
Dimmable	optional via accessory
Made in	Germany
Manufacturer	LED2WORK
Hersteller-Nr	115010-01
Zolltarifnummer	94054239
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
ESD version	TEC
Norm	DIN EN 62471
Steuerung / Betriebsgerät	Dimmable
Lichtstrom (Lumen)	1000 lm
Colour temperature	5700K
Abstrahlwinkel	40°
Montageart	Anbauleuchte
Operating voltage	24 V
Protection rating	IP69K
