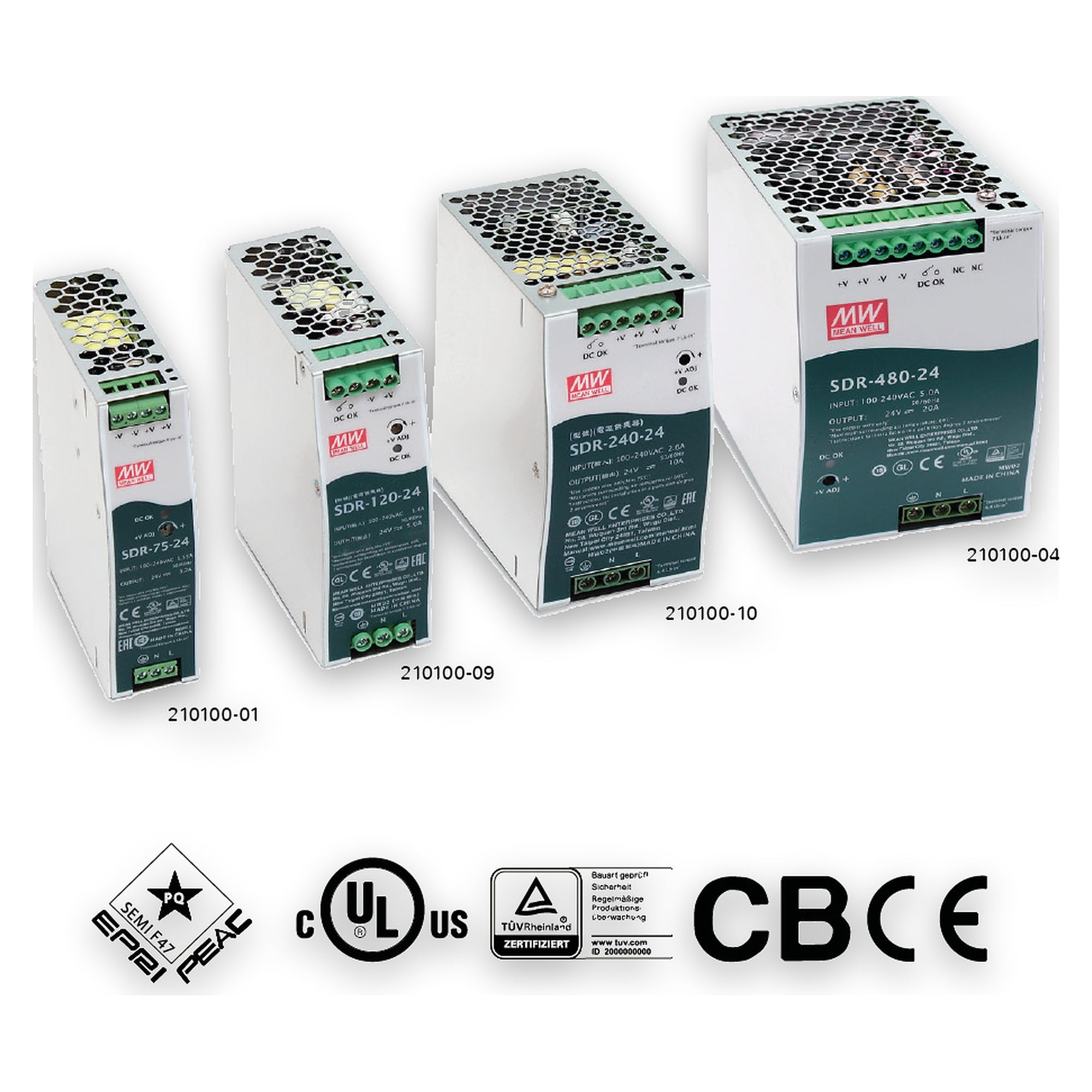

DIN rail power supply 72W 24V DC for LED2WORK lights - LED2WORK 210100-01
LED2WORK
✓ Original product Brand new Made in China
24V DC switching power supply with 72 W for DIN rail mounting, for all LED2WORK 24V DC lights. Enclosed industrial design with screw terminals, wide 88 to 264V AC input range plus over-voltage and over-temperature protection.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This 24V DC switching power supply powers all LED2WORK 24V DC lights and mounts directly onto a DIN rail via screw terminals. In an enclosed industrial design, it delivers up to 72 W of stable output and covers a wide input voltage range.
Your benefits
- 72 W of stable 24V DC output for LED2WORK lights
- Wide input voltage range from 88 to 264V AC
- Protection against short circuit, overload, over-voltage and over-temperature
- Easy DIN rail mounting via screw terminals
- High efficiency of 89 % at full load
- Dimmable in combination with PWM dimmers from LED2WORK
Applications
For powering LED2WORK 24V DC lights in the control cabinet and in the machine. When selecting, check the power consumption and connection ratings of your luminaire.
Technical data
| Model | Constant-voltage power supply |
|---|---|
| Type | DIN rail switching power supply |
| Nominal output voltage | 24V DC |
| Max. output power | 72 W (76.8 W) |
| Output current | 3200 mA |
| Input voltage | 88 to 264V AC |
| Input frequency | 47 to 63 Hz |
| Efficiency at full load | 89 % |
| Ambient temperature | -30 °C to +70 °C |
| Over-temperature protection | 100 °C ± 10 °C |

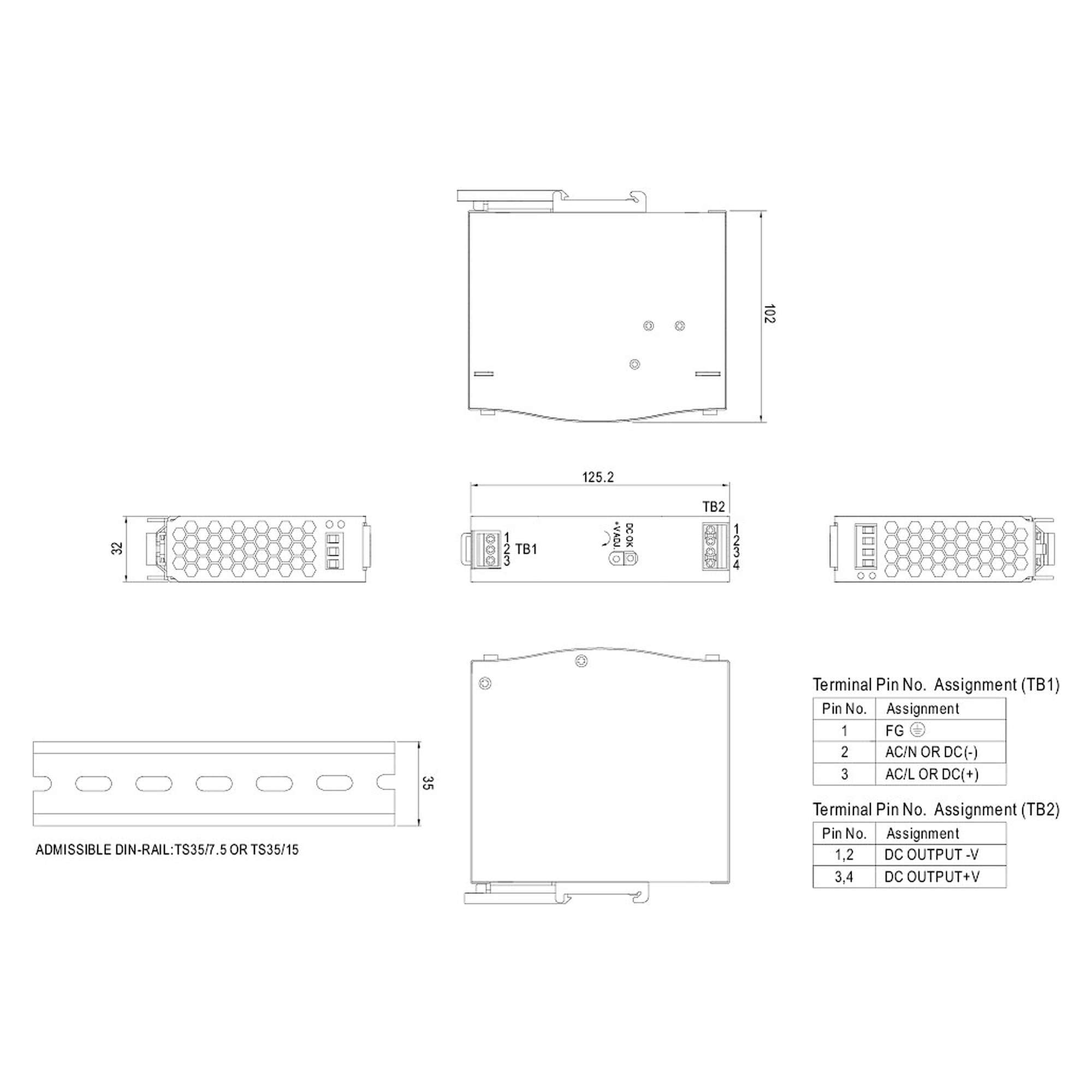

| Dimensions | 32 mm x 125.2 mm x 102 mm |
| Weight | 450 g |
| Protective devices | short-circuit, overload, over-voltage, over-temperature protection |
| Certifications | CE, CB, UKCA, UL508 approved, ITE EN/UL/IEC 60950 |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 210100-01 |
| Zolltarifnummer | 85044095 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| ESD version | TEC |
| Norm | UL 508 |
| Certification | EN 60950 |
| Steuerung / Betriebsgerät | Dimmable |
| Power | 72 W |
| Abstrahlwinkel | 30° |
| Operating voltage | 24 V |
Downloads
Datasheet
Catalogue
