DIN rail power supply 120W 24V DC for LED2WORK lights - LED2WORK 210100-09
LED2WORK
✓ Original product Brand new Made in China
24V DC switching power supply with 120 W for DIN rail mounting, for all LED2WORK 24V DC lights. Enclosed industrial design with screw terminals, wide 88 to 264V AC input range plus over-voltage and over-temperature protection.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This 24V DC switching power supply feeds LED2WORK 24V DC lights with higher power demand and mounts directly onto a DIN rail via screw terminals. In an enclosed industrial design, it delivers up to 120 W of stable output.
Your benefits
- 120 W of stable 24V DC output for LED2WORK lights
- Wide input voltage range from 88 to 264V AC
- Protection against short circuit, overload, over-voltage and over-temperature
- Easy DIN rail mounting via screw terminals
- High efficiency of 91 % at full load
- Dimmable in combination with PWM dimmers from LED2WORK
Applications
For powering LED2WORK 24V DC lights in the control cabinet and in the machine. Not suitable for no-load operation. When selecting, check the power consumption and connection ratings of your luminaire.
Technical data
| Model | Constant-voltage power supply |
|---|---|
| Type | DIN rail switching power supply |
| Nominal output voltage | 24V DC |
| Max. output power | 120 W |
| Output current | 5000 mA |
| Input voltage | 88 to 264V AC |
| Input frequency | 47 to 63 Hz |
| Efficiency at full load | 91 % |
| Ambient temperature | -25 °C to +70 °C |
| Over-temperature protection | 95 °C ± 10 °C |

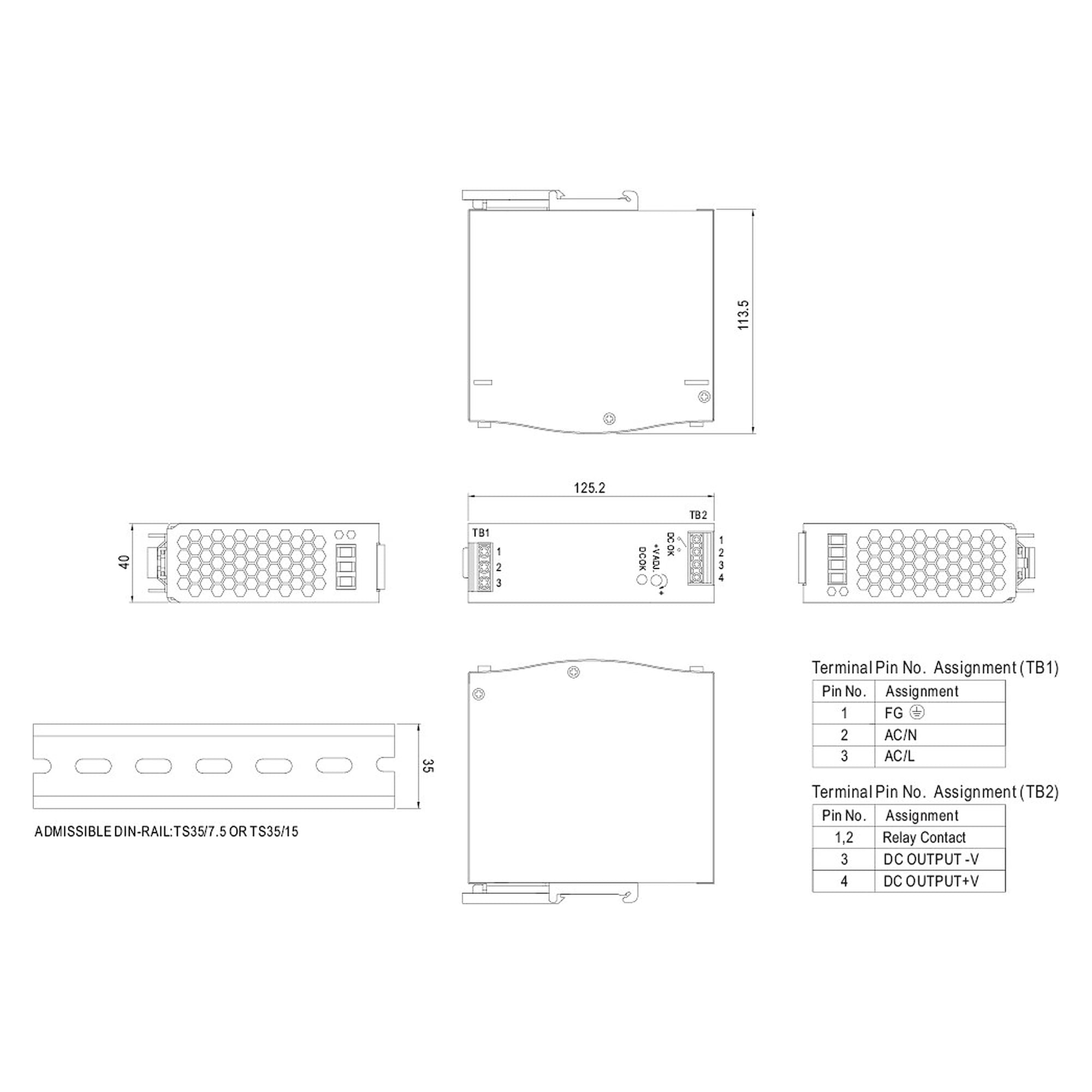

| Dimensions | 40 mm x 125.2 mm x 113.5 mm |
| Weight | 600 g |
| Protective devices | short-circuit, overload, over-voltage, over-temperature protection |
| Certifications | CE, CB, UKCA, UL508 approved, ITE EN/UL/IEC 60950 |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 210100-09 |
| Zolltarifnummer | 85044095 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| ESD version | TEC |
| Norm | UL 508 |
| Certification | EN 60950 |
| Steuerung / Betriebsgerät | Dimmable |
| Power | 120 W |
| Abstrahlwinkel | 25° |
| Operating voltage | 24 V |
