Schaltnetzteil 24V DC 60 W, IP67, M12 Buchse/offene Enden - LED2WORK 210100-06

The LED2WORK industrial power supply delivers a fixed 24V DC output of up to 60 W, enough to power several luminaires connected in series (daisy-chaining). The sealed die-cast aluminium housing with internal thermally conductive silicone is built for rugged continuous operation.

Key benefits

• Fixed 24V DC output at 60 W, sufficient for several daisy-chained LED2WORK luminaires
• High IP67 protection rating for use in demanding environments
• Sealed die-cast aluminium housing with internal thermally conductive silicone
• 110-240 V AC input via open 3-core cable, output via M12 A-coded

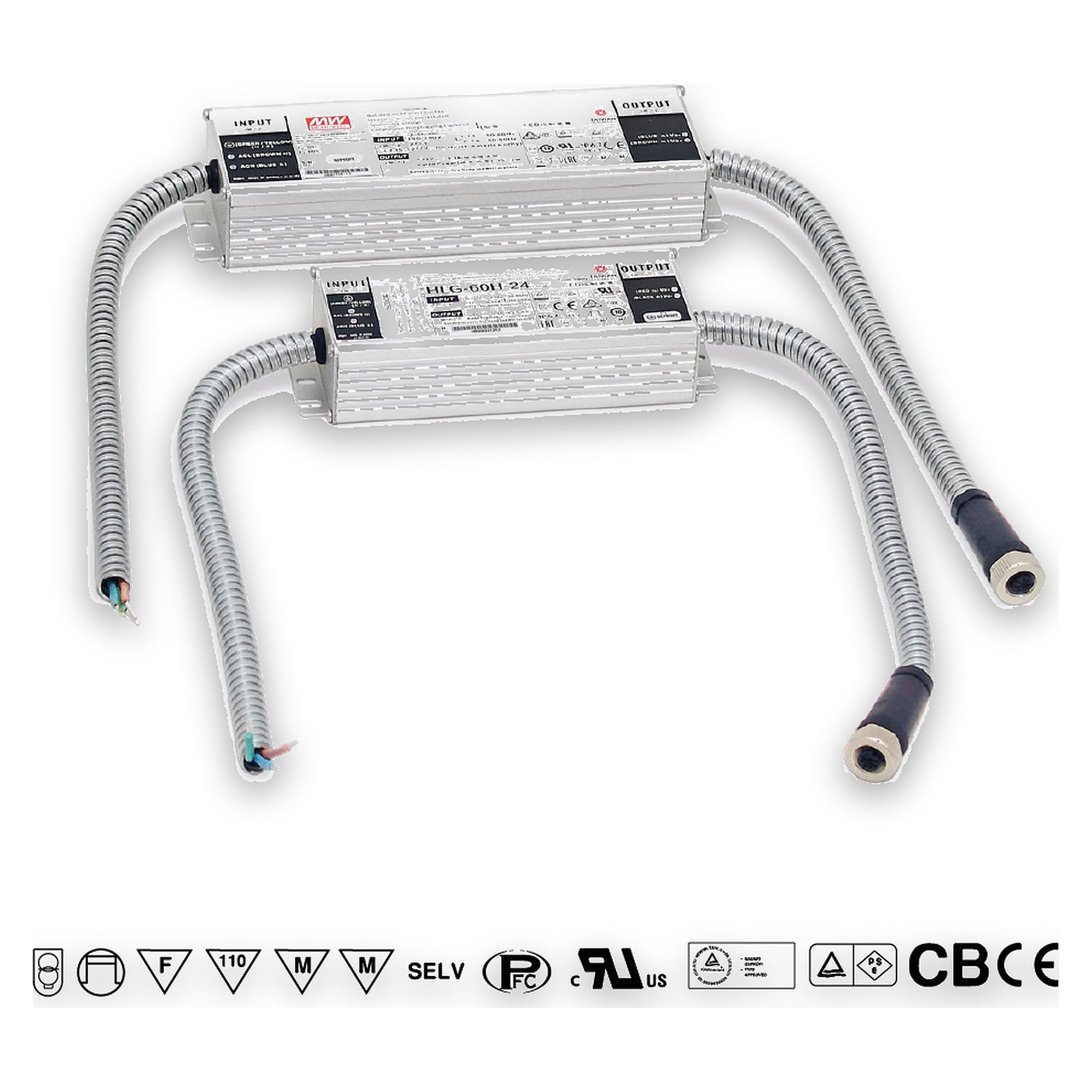

• Cable fully protected by a flexible metal conduit
• Active PFC, broad approval base

Technical data

• Model: constant-voltage power supply
• Design: IP67, metal housing, input open ends, output M12 socket, cable protection flexible metal conduit
• Output voltage: 24V DC
• Output power: 60 W

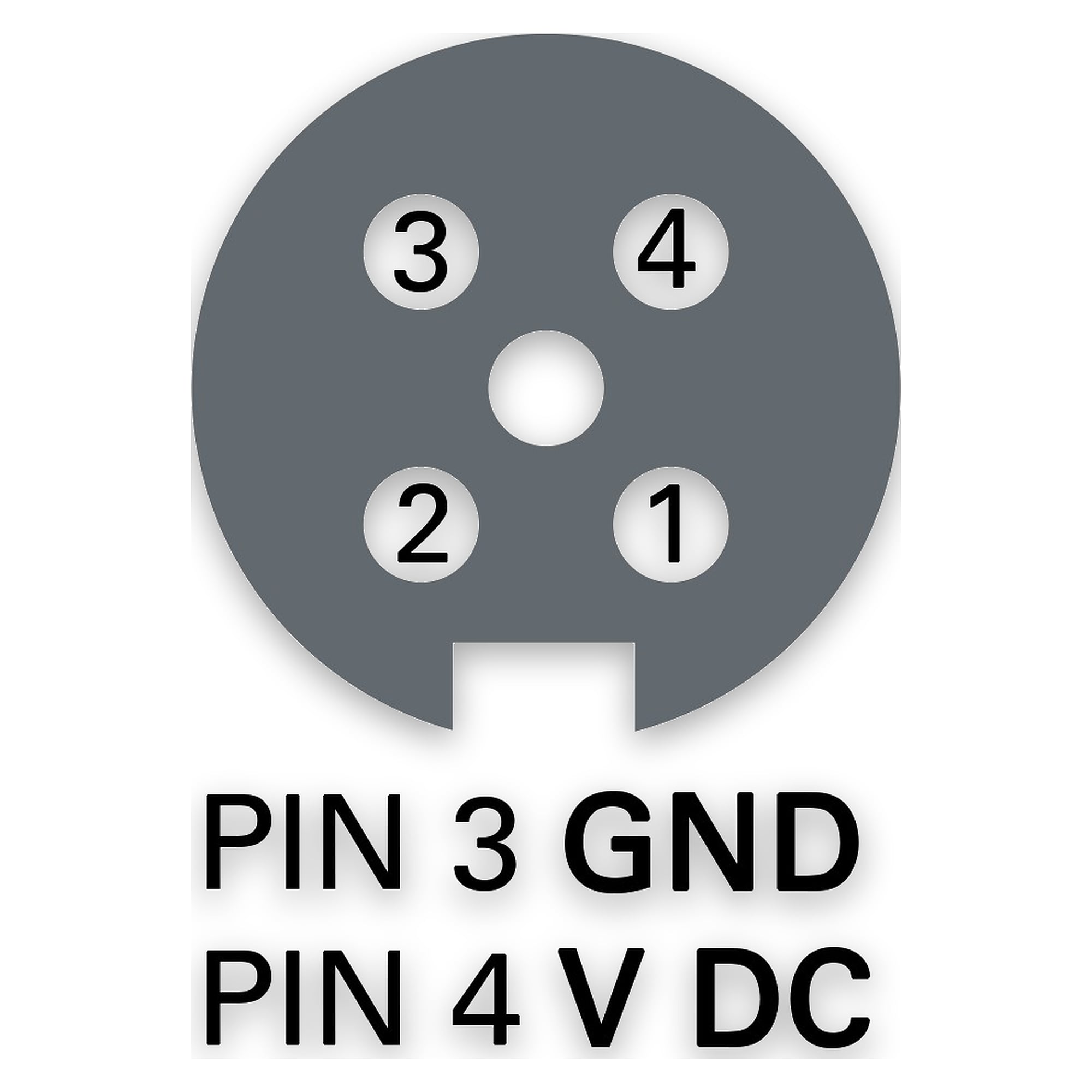

• Connection: M12 socket, A-coded
• Protection rating: IP67

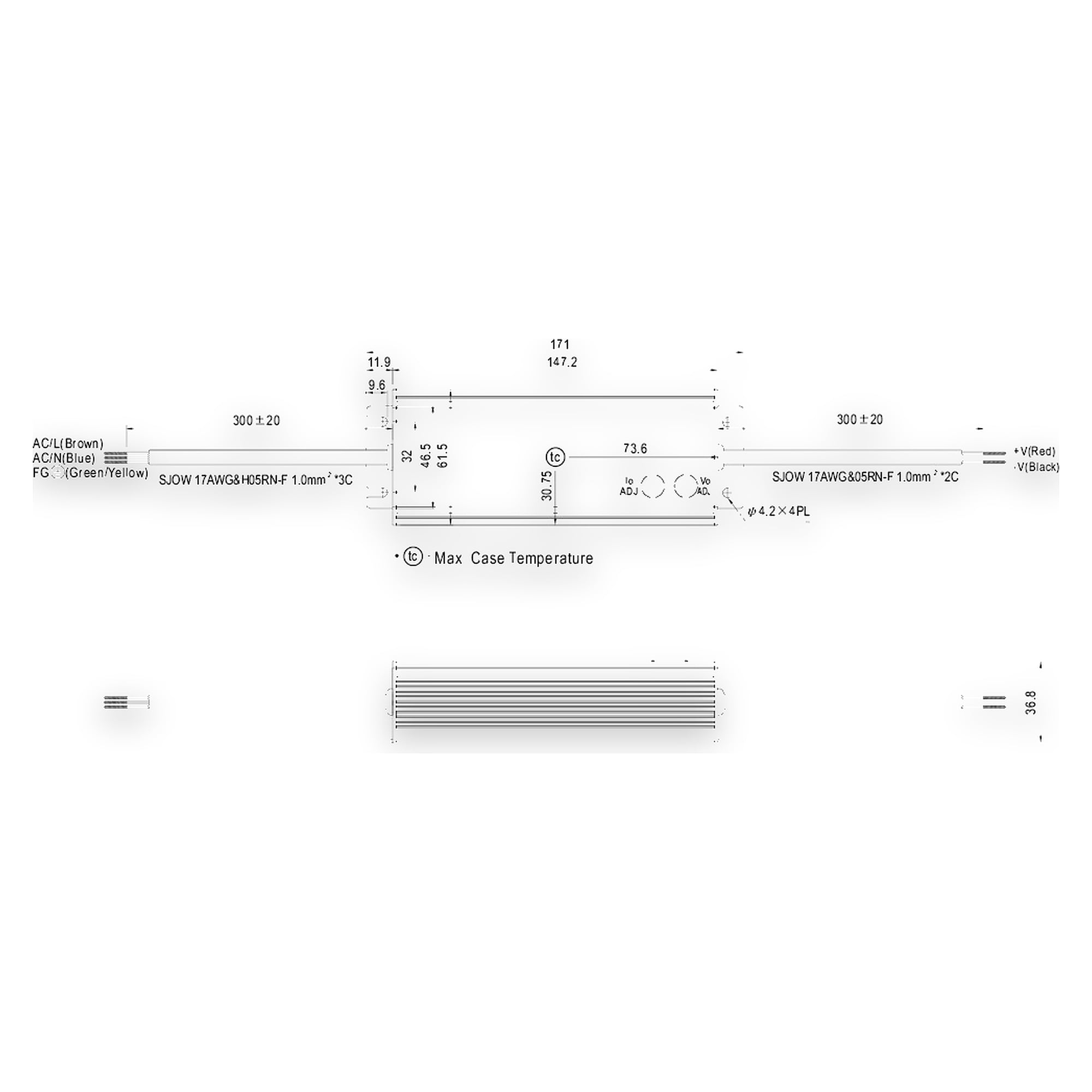

• Dimensions: 171 mm x 61.5 mm x 36.8 mm
• Weight: 1100 g
• Certifications: active PFC, IP65, IP67, ICC, CB, CE, UKCA, UL8750 Type HL

Applications

For rugged power supply of LED2WORK 24V DC luminaires in machines and plants, including daisy-chaining of several luminaires in damp or harsh environments.
