Tischnetzteil 24V DC, 120 W, M12 A-kodiert - LED2WORK 210100-05

To run higher-power LED2WORK 24V DC lights from a wall socket, this table power supply delivers a stable 24V DC fixed output at up to 120 W and connects directly to the luminaire via an M12 A-coded plug.

Your benefits

• Up to 120 W: 24V DC at 5000 mA output current.
• Wide input range: 90 to 264V AC, 47 to 63 Hz.
• High efficiency: 89.5 % at full load.
• Fully protected: short-circuit, overload, overvoltage and over-temperature protection.
• Dimmable: usable with LED2WORK PWM dimmers.
• Ready to connect: M12 A-coded to the light, SCHUKO IEC cable to mains.

Technical data

• Model: constant-voltage power supply
• Type: table power supply with M12 socket on cable, plus IEC cable with SCHUKO plug
• Nominal output voltage: 24V DC
• Max. output power: 120 W
• Output current: 5000 mA
• Input voltage: 90 to 264V AC
• Input frequency: 47 to 63 Hz
• Output voltage adjustment range: 22 to 27V DC

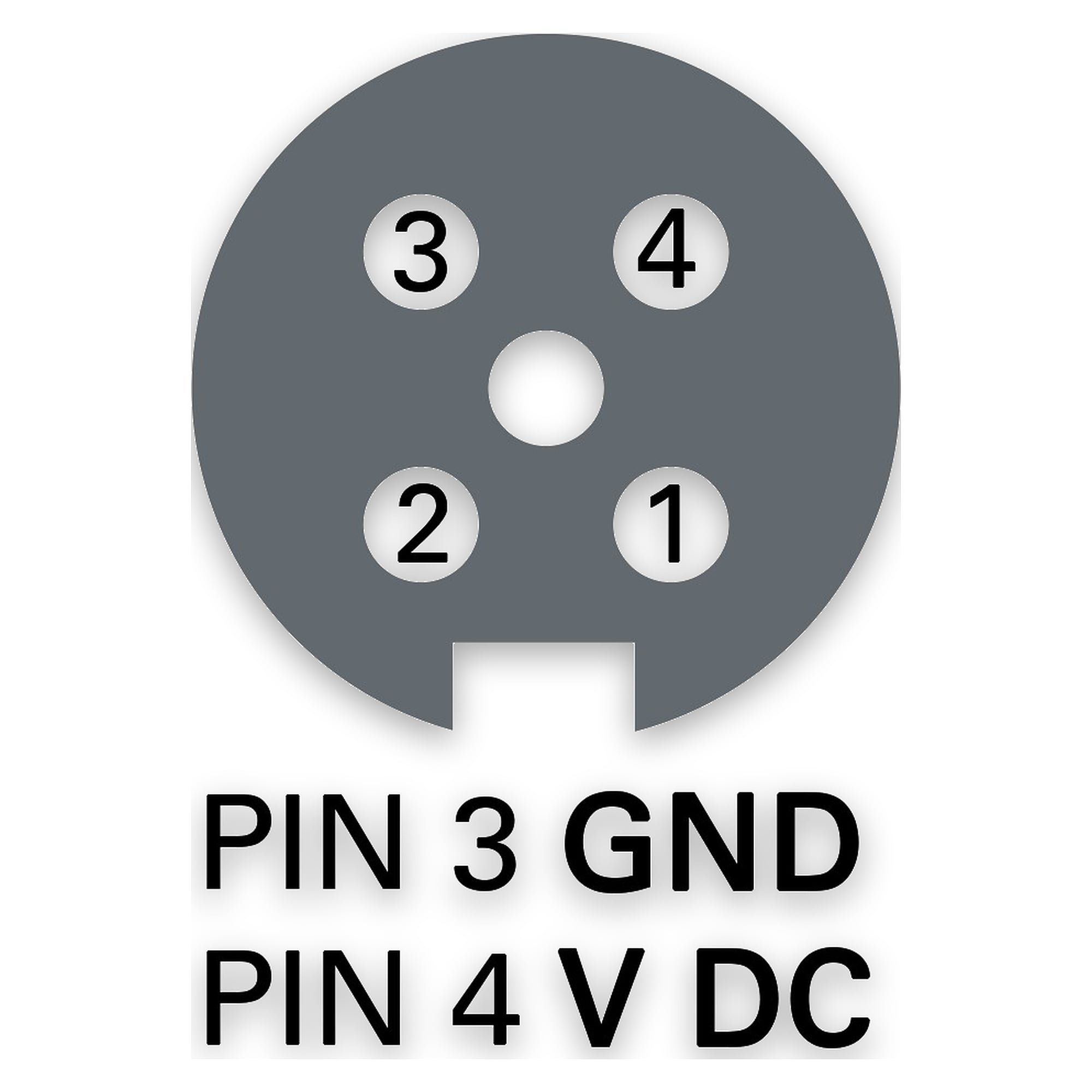

• Connection to luminaire: M12 socket, A-coded
• Efficiency at full load: 89.5 %
• Cable length: ~1.8 m
• Ambient temperature: -30 °C to +70 °C

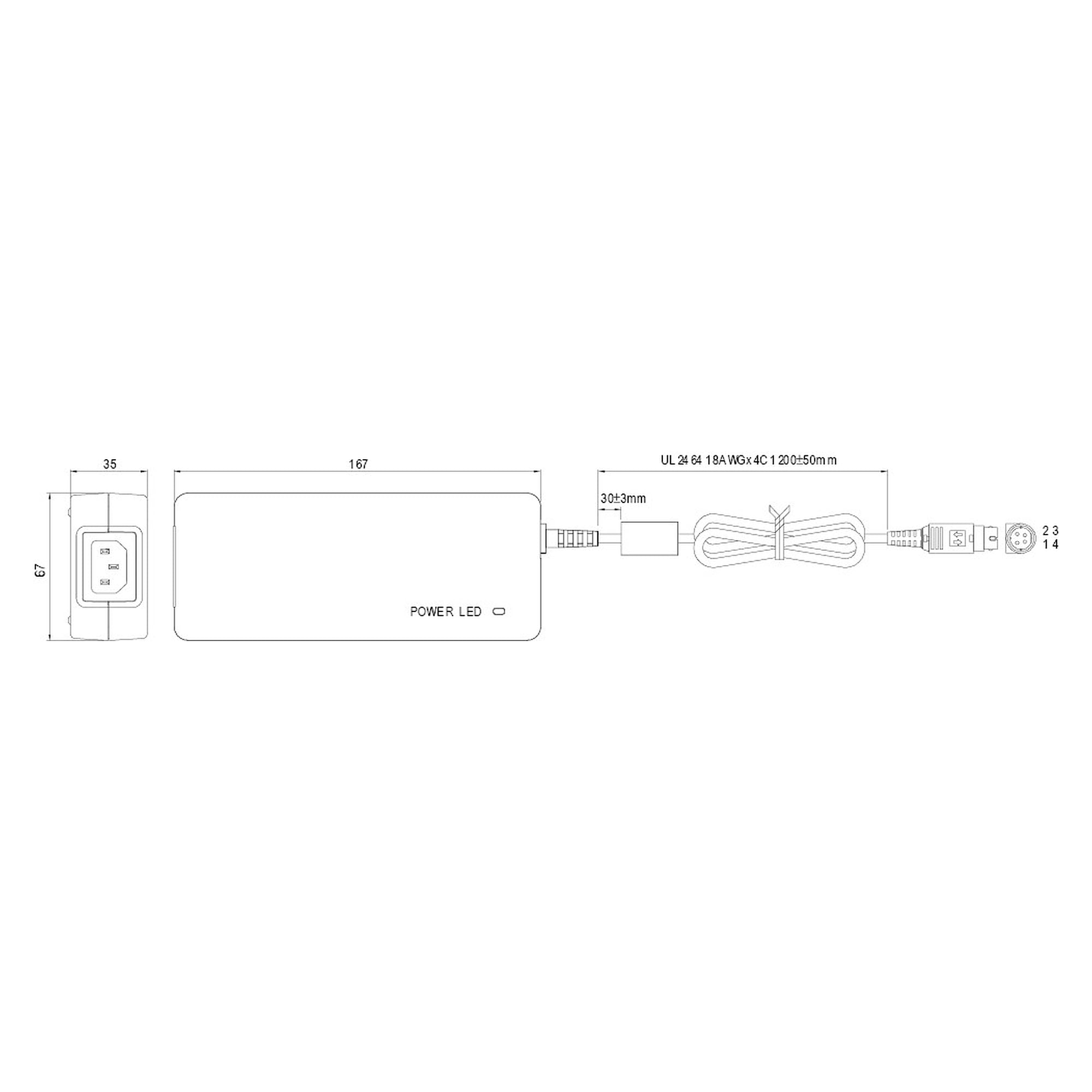

• Dimensions: 167 mm x 67 mm x 35 mm
• Weight: 600 g
• Protections: short-circuit, overload, overvoltage, over-temperature
• Certifications: EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU, CE, UKCA

Scope of delivery

Table power supply with permanently fitted lead and M12 A-coded plug, plus an IEC cable with an angled SCHUKO plug.
