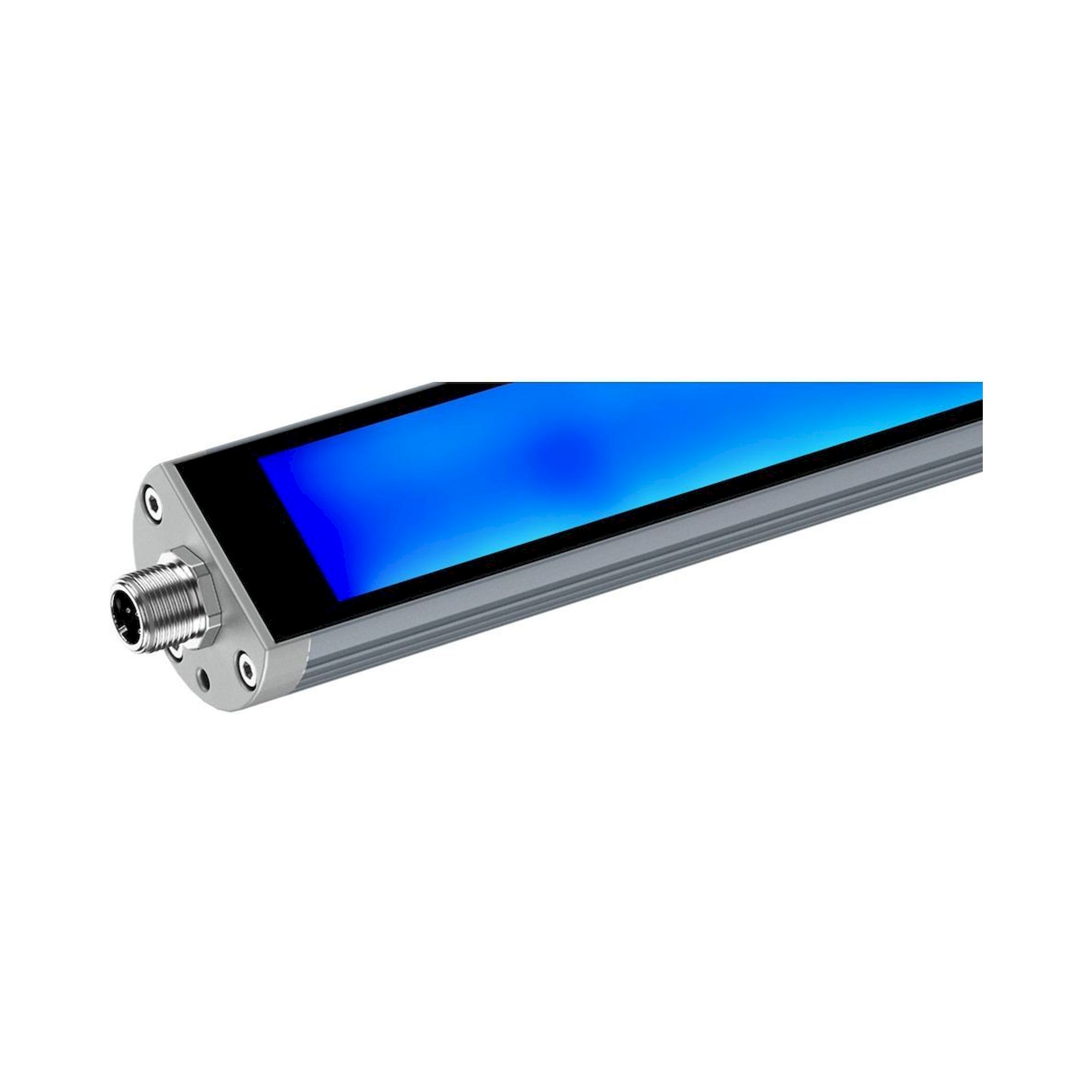

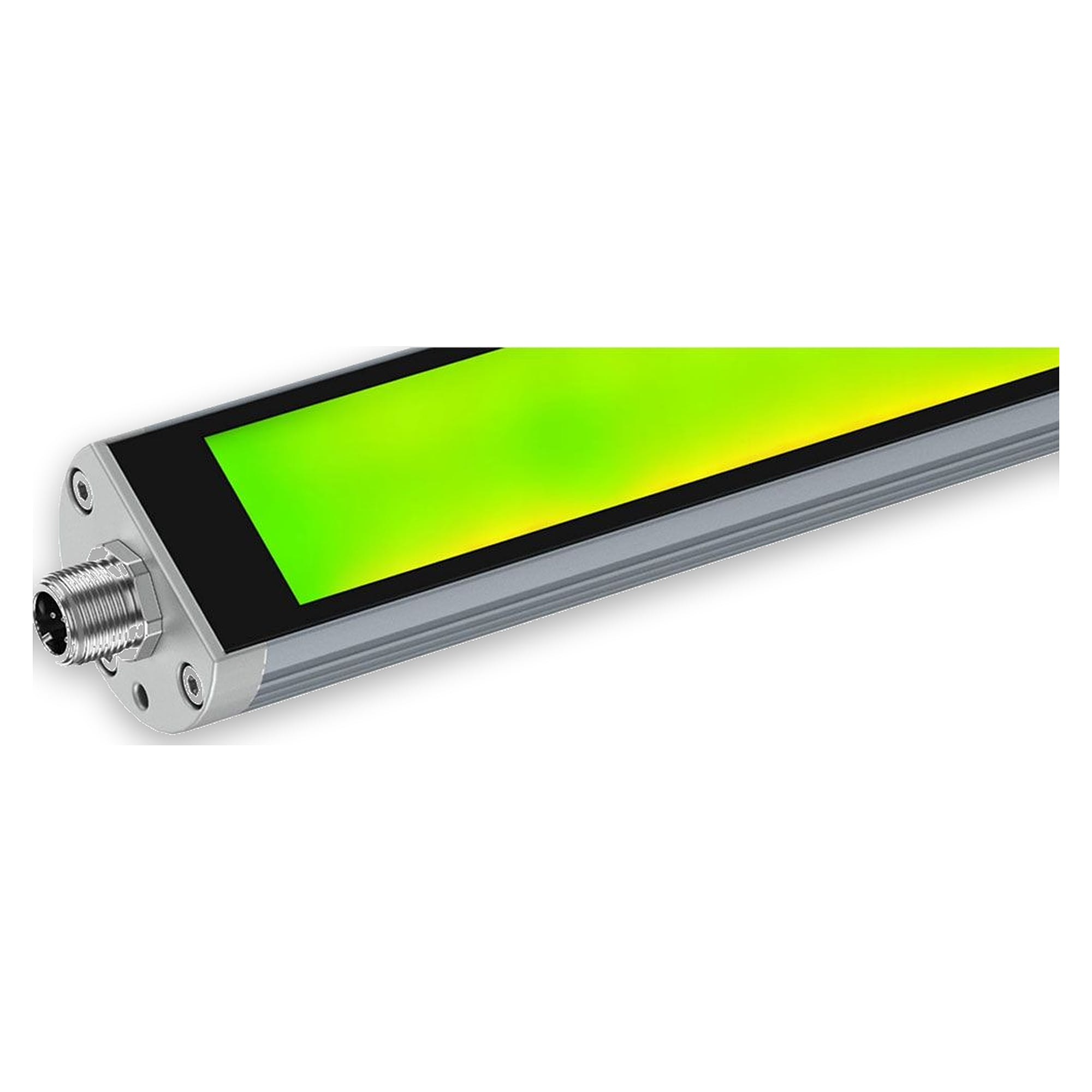

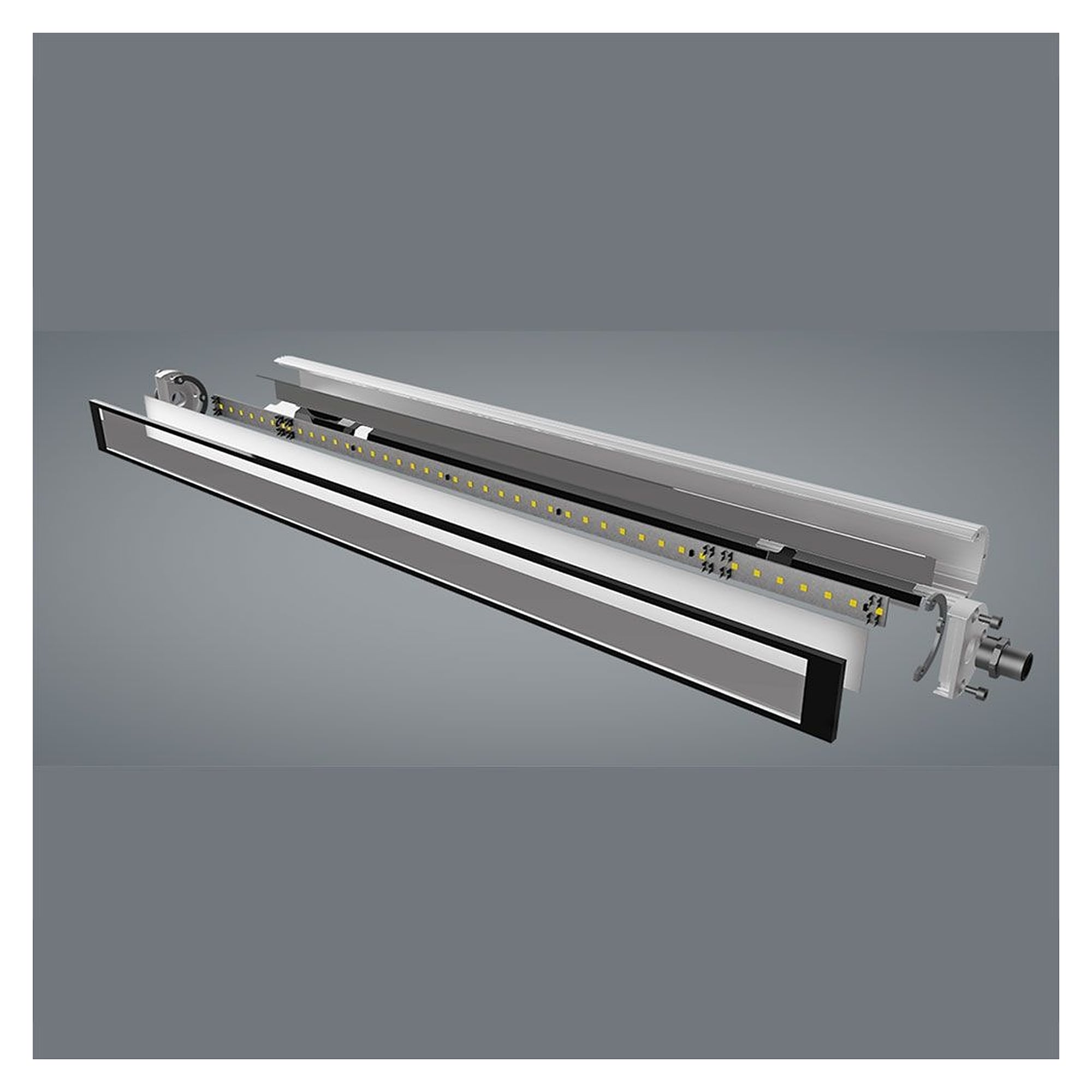

TUBELED_40 II Power LED machine light 715 mm, approx. 32,8 W, 5700K, IP69K, daisy-chainable - LED2WORK 118410-11
LED2WORK
✓ Original product Brand new Made in Germany
High-output LED machine light with 5676 lm at ~32,8 W in 5700K. Just 29 mm low-profile, IP67/IP69K, oil-resistant and fitted with shatter-resistant toughened glass for lighting work areas inside machines. Several units can be daisy-chained via M12.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The TUBELED_40 II Power lights work areas inside machines with 5676 lm in 5700K while standing only 29 mm proud. Shatter-resistant toughened glass, resistance to oil and coolant and the high protection rating make it a first choice for new builds and retrofits. A second M12 output lets several units be daisy-chained up to a total current draw of 4 A.
Key benefits
- 5676 lm at ~32,8 W and 5700K for bright illumination of work areas
- Only 29 mm low-profile, ideal where installation space is tight
- IP67/IP69K, oil-resistant and chip-impact-proof for continuous machine duty
- Shatter-resistant safety glass and aluminium housing, 100° beam angle
- Colour rendering Ra >85, made in Germany
Applications
Used to light machine tools, CNC machining centres, lathes and milling machines as well as special-purpose equipment, in new builds and retrofits alike.
Certifications: CE, UKCA, ETL Listed (5003529), D-Kennzeichnung. Risk group per DIN EN 62471: exempt group. Made in Germany.
Technical data
| Model | TUBELED_40 II Power, kaskadierbar |
|---|---|
| Design | LED surface-mounted machine light |
| Light source | SMD LED |
| Power | ~32,8 W |
| Luminous flux | 5676 lm |
| Luminous efficacy | ~173 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | >85 |
| Light distribution | Light Forming Technology |
| Supply voltage | 24V DC ± 10% |
| Connection | M12 A-coded |
| Protection rating (IP) | IP67/IP69K |
| Protection class | III |
| Glare control | Diffuser, toughened safety glass |
| Beam angle | 100° |
| Operating temperature | -30 °C - +60 °C |
| Service life | > 100.000 h (L80/B10) |
| Vibration resistance | Bei 10 bis 55 Hz (Amplitude 0,35 mm) |
| Shock resistance | Bis 50 g |
| Housing material | Aluminium |
| Cover material | Safety glass, 4 mm |
| Dimensions | 715 mm x 40 mm x 29 mm |
| Weight | 890 g |
| Risk group (DIN EN 62471) | Exempt group |
| Dimmable | Optional via accessory |
| Certifications | CE, UKCA, ETL Listed (5003529), D-Kennzeichnung |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 118410-11 |
| Zolltarifnummer | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN 62471 |
| Steuerung / Betriebsgerät | Dimmable |
| Lichtstrom (Lumen) | 5676 lm |
| Colour temperature | 5700K |
| Farbwiedergabe (Ra) | Ra 85 |
| Abstrahlwinkel | 100° |
| Operating voltage | 24 V |
| Protection rating | IP69K |
Downloads
User Manual
Catalogue
Accessories
LED2WORK
DIN rail power supply 72W 24V DC for LED2WORK lights - LED2WORK 210100-01
Item L2W-210100-01
€47.70
LED2WORK
Table power supply 24V DC, 60 W, M12 A-coded, 1.8 m cable - LED2WORK 210100-02
Item L2W-210100-02
€34.85
LED2WORK

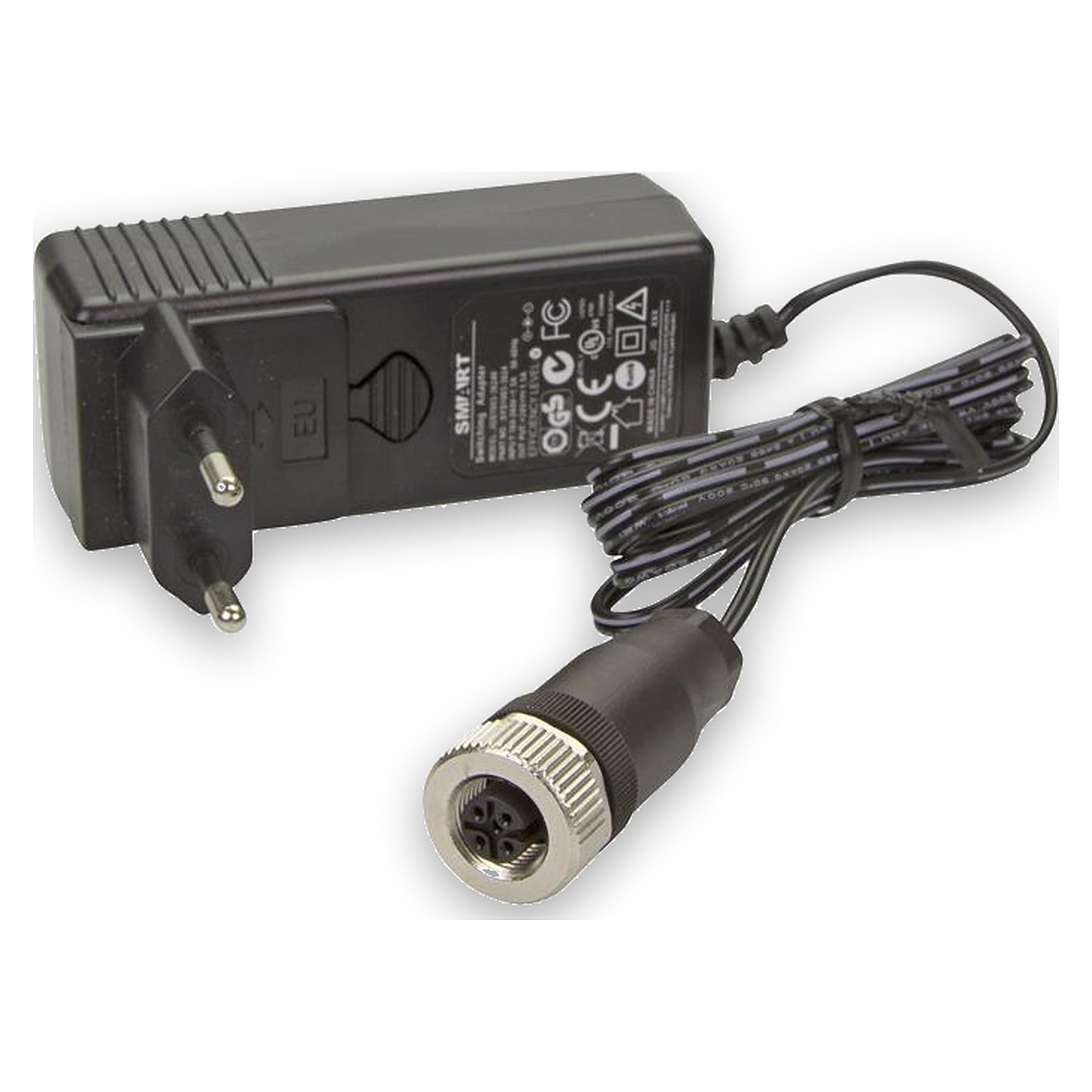

Plug-in power supply 36W 24V DC with M12 socket A-coded - LED2WORK 210100-03
