Sensor cable 2.5 m, 4-pin, M12 plug/M12 socket, A-coded, 24V DC - LED2WORK 200100-02
LED2WORK
✓ Original product Brand new Made in Germany
Four-core 24V DC sensor cable, 2.5 m, with M12 socket and M12 plug A-coded for connecting LED2WORK 24V DC luminaires. Rated up to IP68 when fitted, PUR jacket for rugged industrial use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

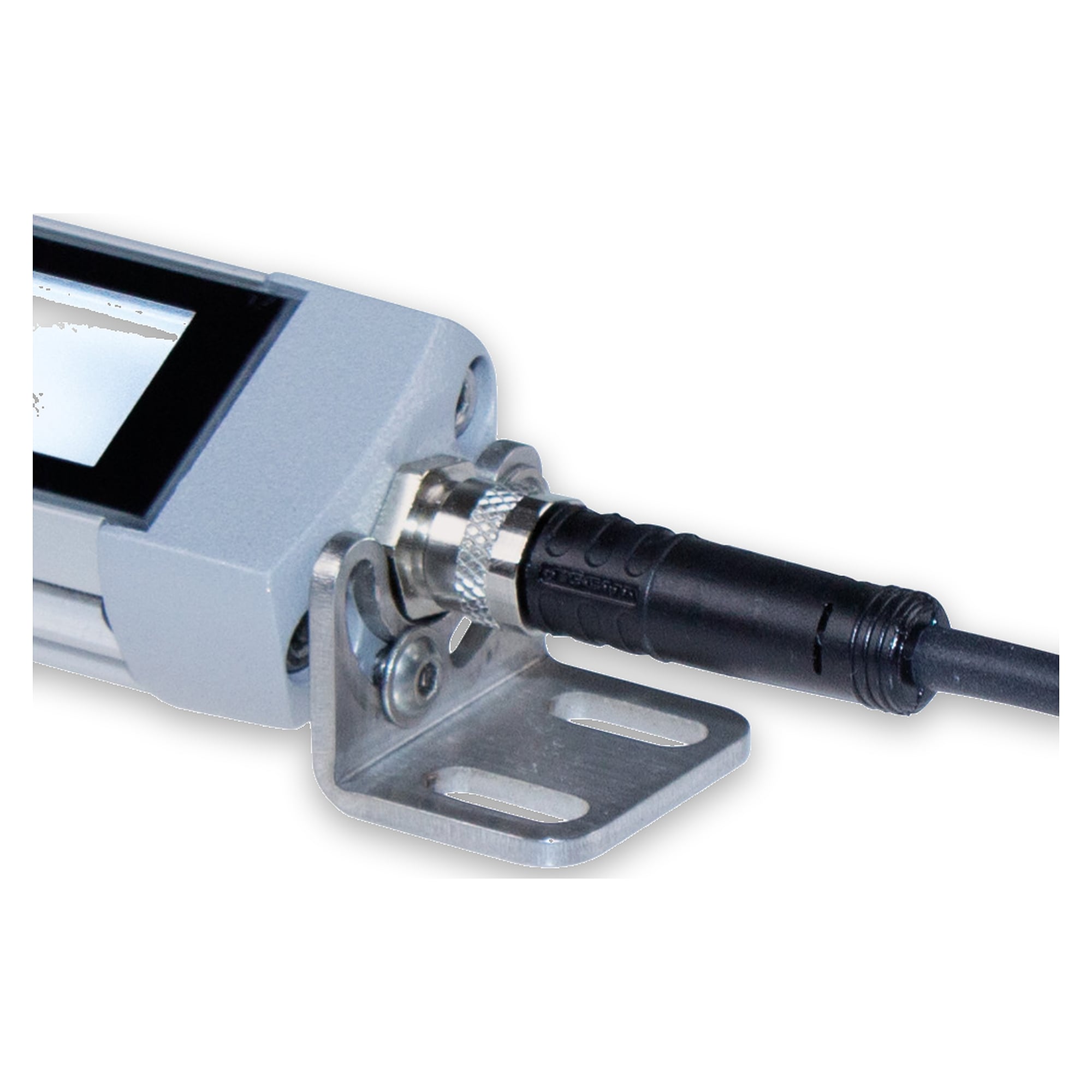

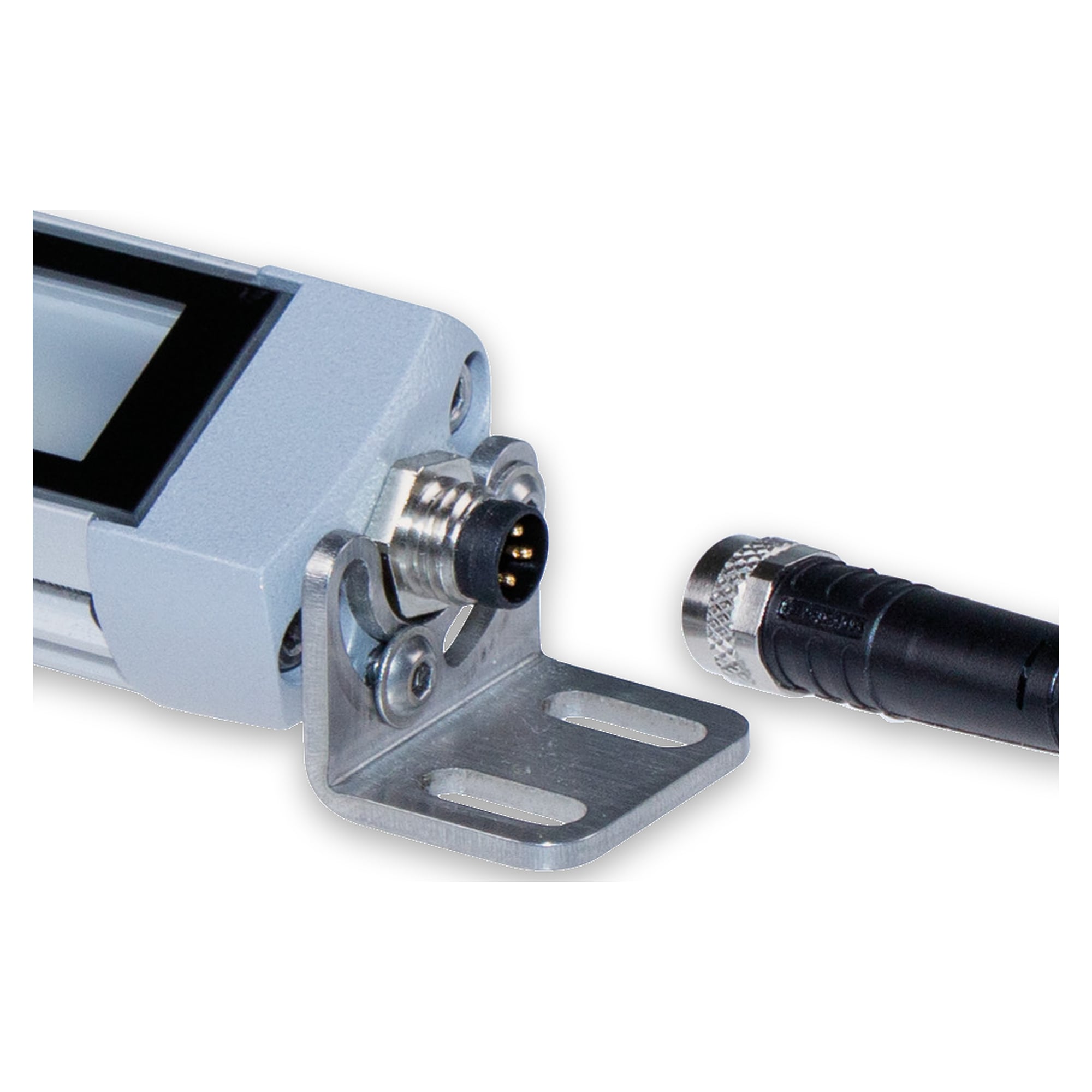

The 24V DC sensor cable connects LED2WORK 24V DC luminaires with an M12-A connection over a length of 2.5 m. It is 4-core, black, with an A-coded M12 socket on one end and an A-coded M12 plug on the other. RGB and RGB-W luminaires require a 5-core sensor cable for the signal function.
Key benefits
- 2.5 m length for compact connection of 24V DC luminaires

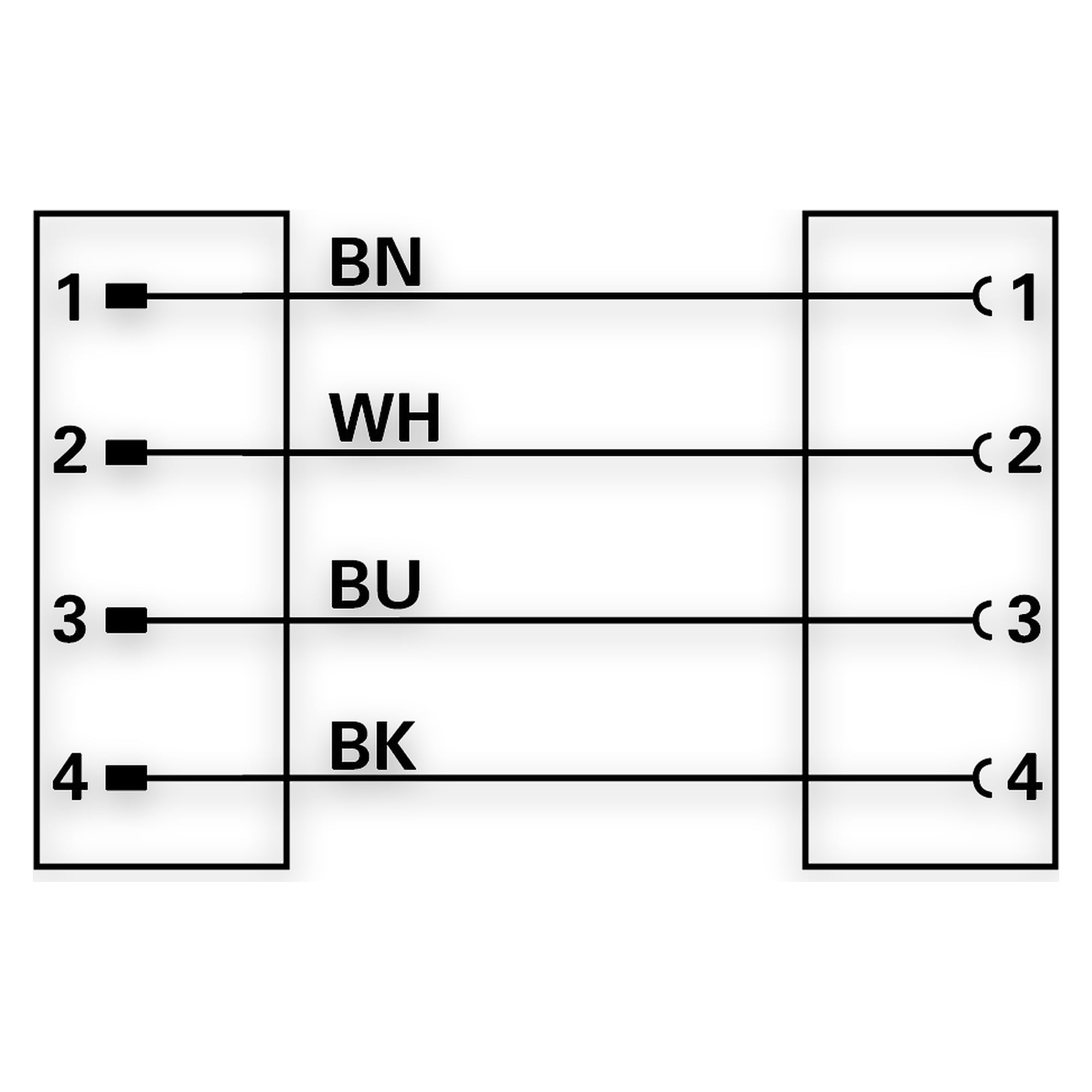

- 4-core, A-coded, M12 on both ends (plug and socket)
- Rated IP65, IP67 and IP68 when fitted
- PUR jacket, high current rating of 4000 mA per pin
- Gold-plated contacts and nickel-plated coupling nut for reliable connections
Applications
For connecting LED2WORK 24V DC luminaires with an M12-A connection, except RGB and RGB-W luminaires, which require a 5-core sensor cable.
Technical data
| Model | sensor cable, M12 socket, 4-pin |
|---|---|
| Coding | A-coded, 4 poles |
| Cable length | 2.5 m |

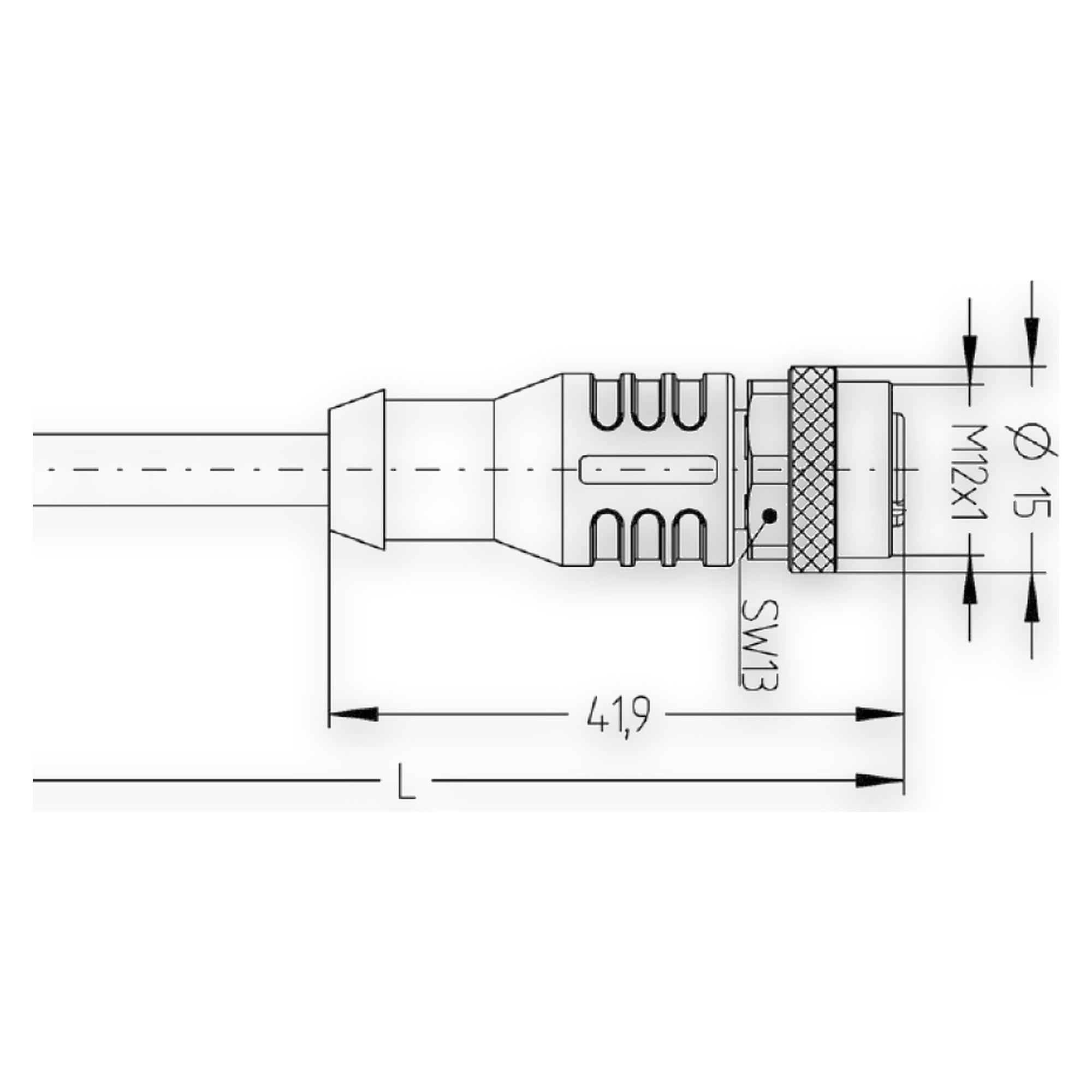

| Cable ends | M12 plug straight / M12 socket straight |
| Cable material | PUR, black |
| Contact material | metal, CuSn, gold-plated |
| Coupling nut material | metal, CuZn, nickel-plated |
| Seal material | FPM / FKM |
| Rated voltage | 250 V |
| Current rating per pin | 4000 mA |
| Ambient temperature | -30 °C to +90 °C |
| Protection rating (fitted) | IP65, IP67, IP68 |
| Standards | IEC 61076-2-101 |
| Conductor cross-section | 0.34 mm² |
| Weight | 100 g |
| Certifications | CE, RoHS, UL |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 200100-02 |
| Zolltarifnummer | 85444290 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN 61076-2-101 |
| Abstrahlwinkel | 30° |
| Montageart | Mast / Ausleger |
| Operating voltage | 24 V |
| Protection rating | IP68 |
