Sensor cable 4-pin PUR 10 m, M12 socket to M12 plug A-coded, 24V DC - LED2WORK 200100-03

Connects a LED2WORK 24V DC machine light with an M12-A port to the power supply or to a further luminaire. The pre-assembled 10 m cable saves the time of self-wiring and is sealed to IP68 once mounted.

Key benefits

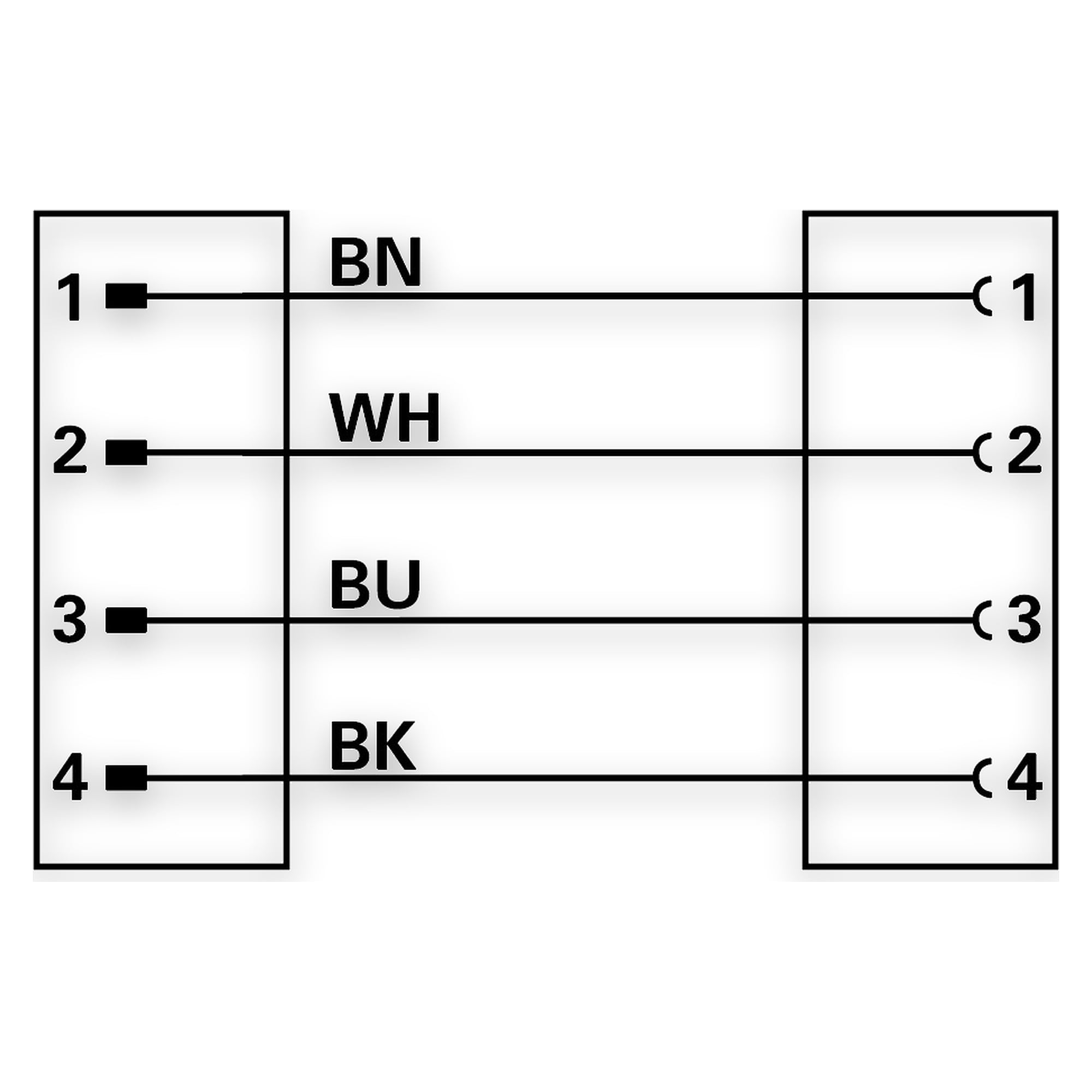

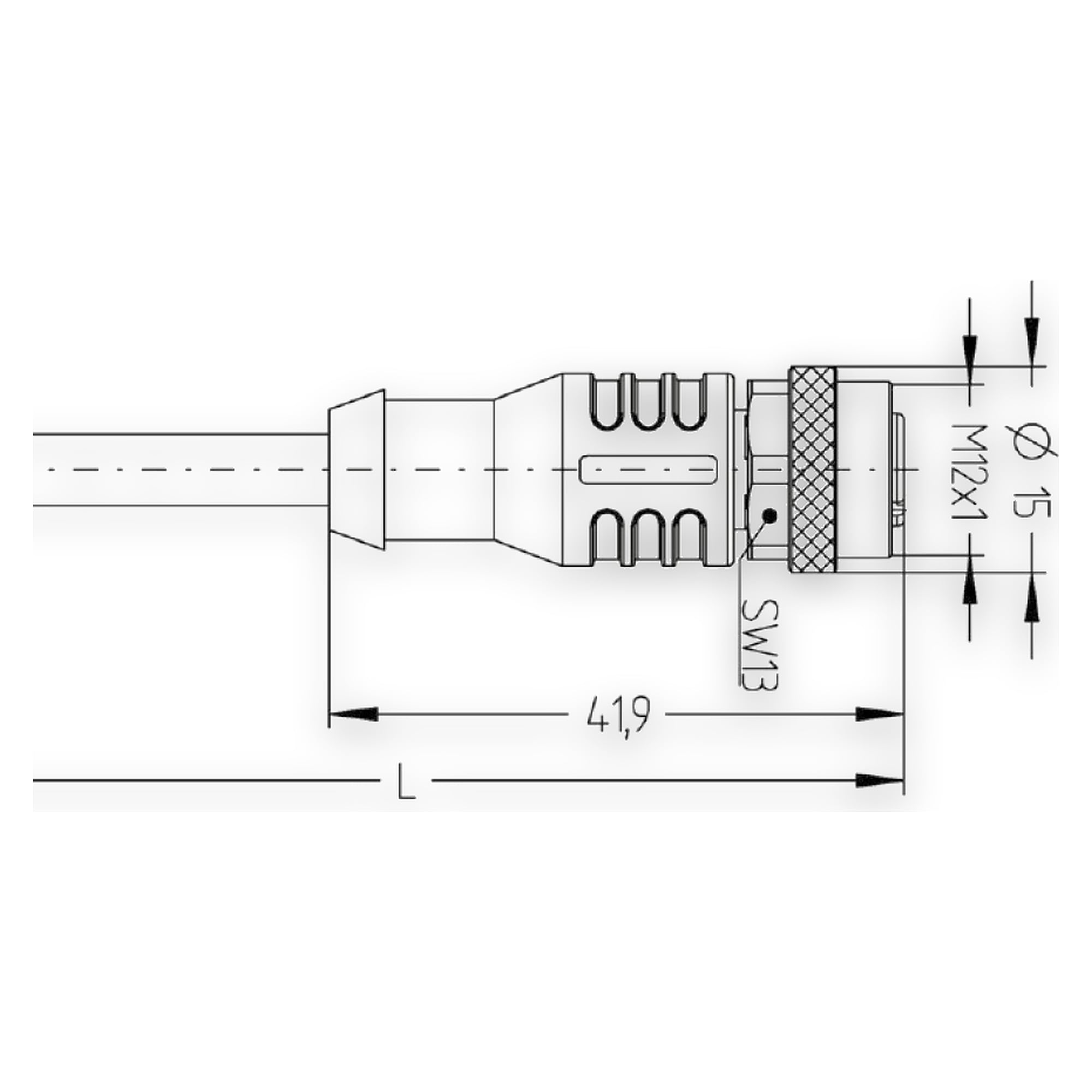

• Plug-and-play at both ends: M12 A-coded socket to M12 A-coded plug, no stripping required
• 10 m of 4-core black PUR cable for longer runs on machinery
• Protection rating IP65, IP67 and IP68 when fitted
• Wide operating range from -30 °C to +90 °C
• Gold-plated contacts and nickel-plated coupling nut for lasting reliable contact

Applications

For connecting LED2WORK 24V DC luminaires with an M12-A port in machines and control cabinets. Suitable for all 24V DC models except RGB and RGB-W luminaires, which need a 5-pin sensor cable for the signal function.
