Sensor cable 4-pin PUR 5 m, M12 socket to open ends A-coded, 24V DC - LED2WORK 200100-04

Brings a LED2WORK 24V DC machine light with an M12-A port flexibly to a terminal strip or controller. One end carries a ready M12-A socket, the other four open wire ends for free connection, sealed to IP68 once mounted.

Key benefits

• M12 A-coded socket to four open wire ends for flexible wiring
• 5 m of 4-core black PUR cable
• Protection rating IP65, IP67 and IP68 when fitted
• Wide operating range from -30 °C to +90 °C
• Gold-plated contacts and nickel-plated coupling nut for reliable contact

Technical data

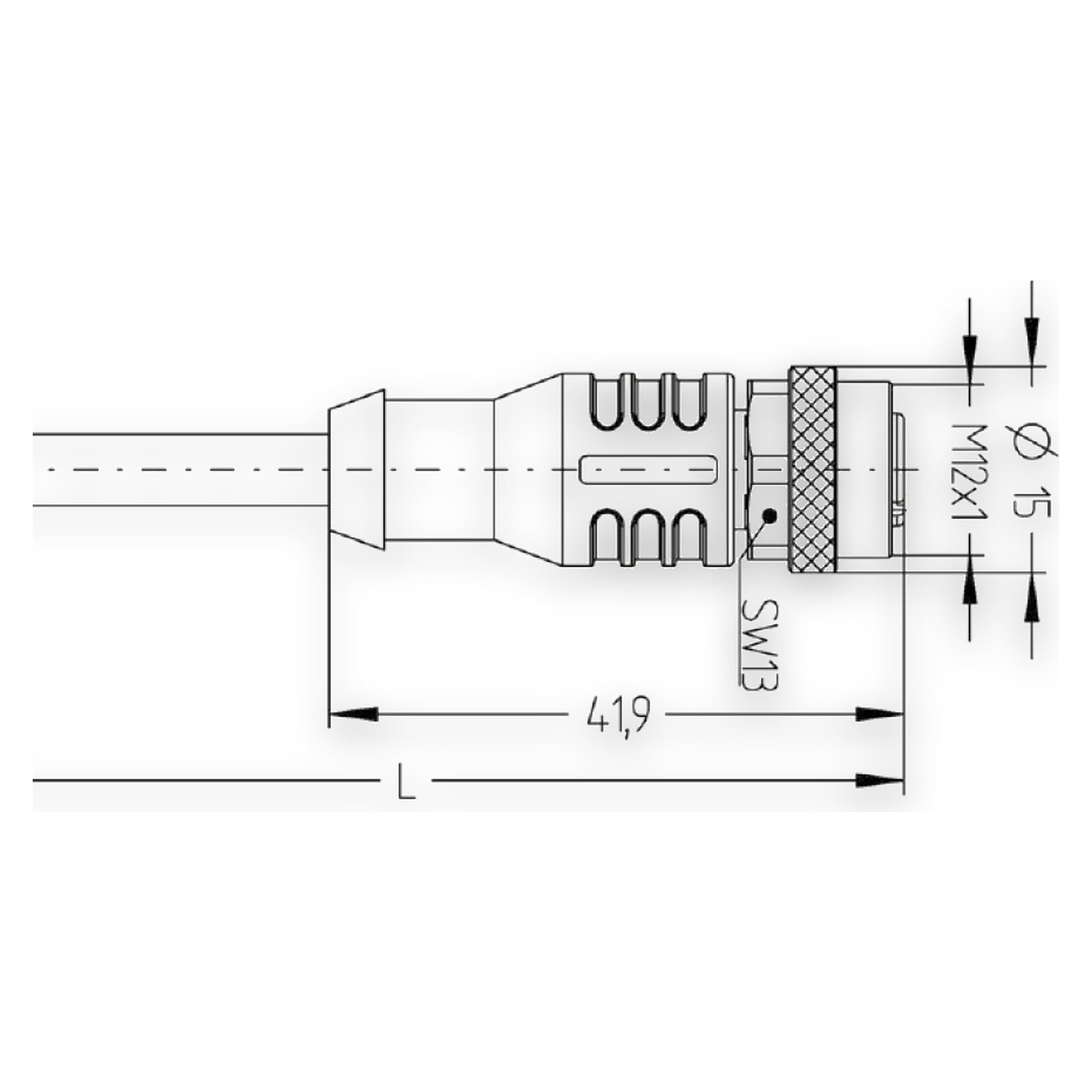

• Model: sensor cable, open / M12 socket, 4-pin
• Design: PUR, black
• Coding: A-coded
• Cable length: 5 m
• Number of pins: 4

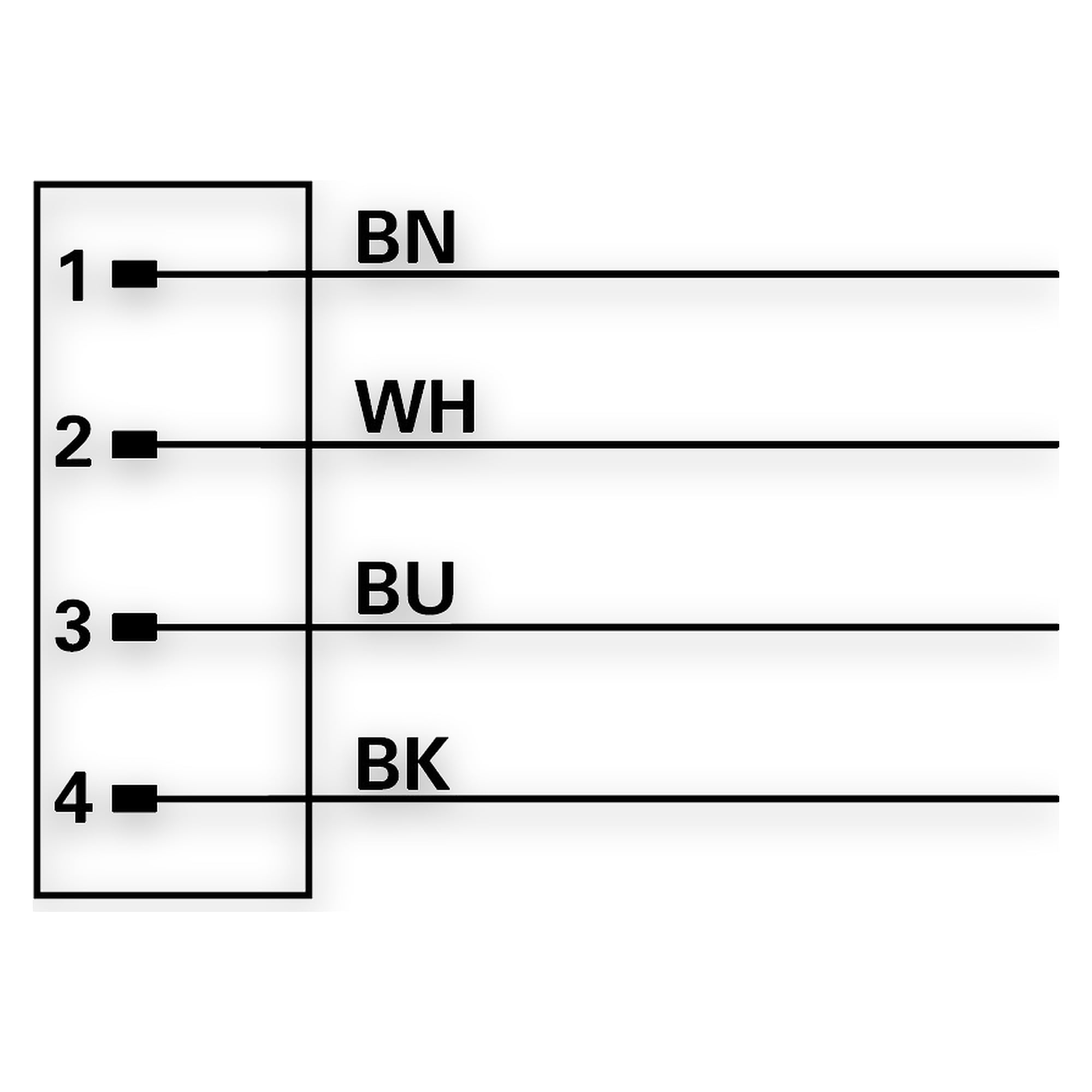

• Cable ends: open ends, 4 cores / M12 socket straight
• Conductor cross-section: 0.34 mm²
• Rated voltage: 250 V
• Current load per pin: 4000 mA
• Operating temperature: -30 °C to +90 °C
• Protection rating (fitted): IP65, IP67, IP68
• Cable material: PUR
• Contact material: metal, CuSn, gold-plated
• Coupling nut material: metal, CuZn, nickel-plated
• Seal material: FPM / FKM
• Standards: IEC 61076-2-101
• Weight: 200 g
• Certifications: CE, RoHS, UL

Applications

For connecting LED2WORK 24V DC luminaires with an M12-A port to terminal strips, controllers or power supplies. Suitable for all 24V DC models except RGB and RGB-W luminaires, which need a 5-pin sensor cable.
