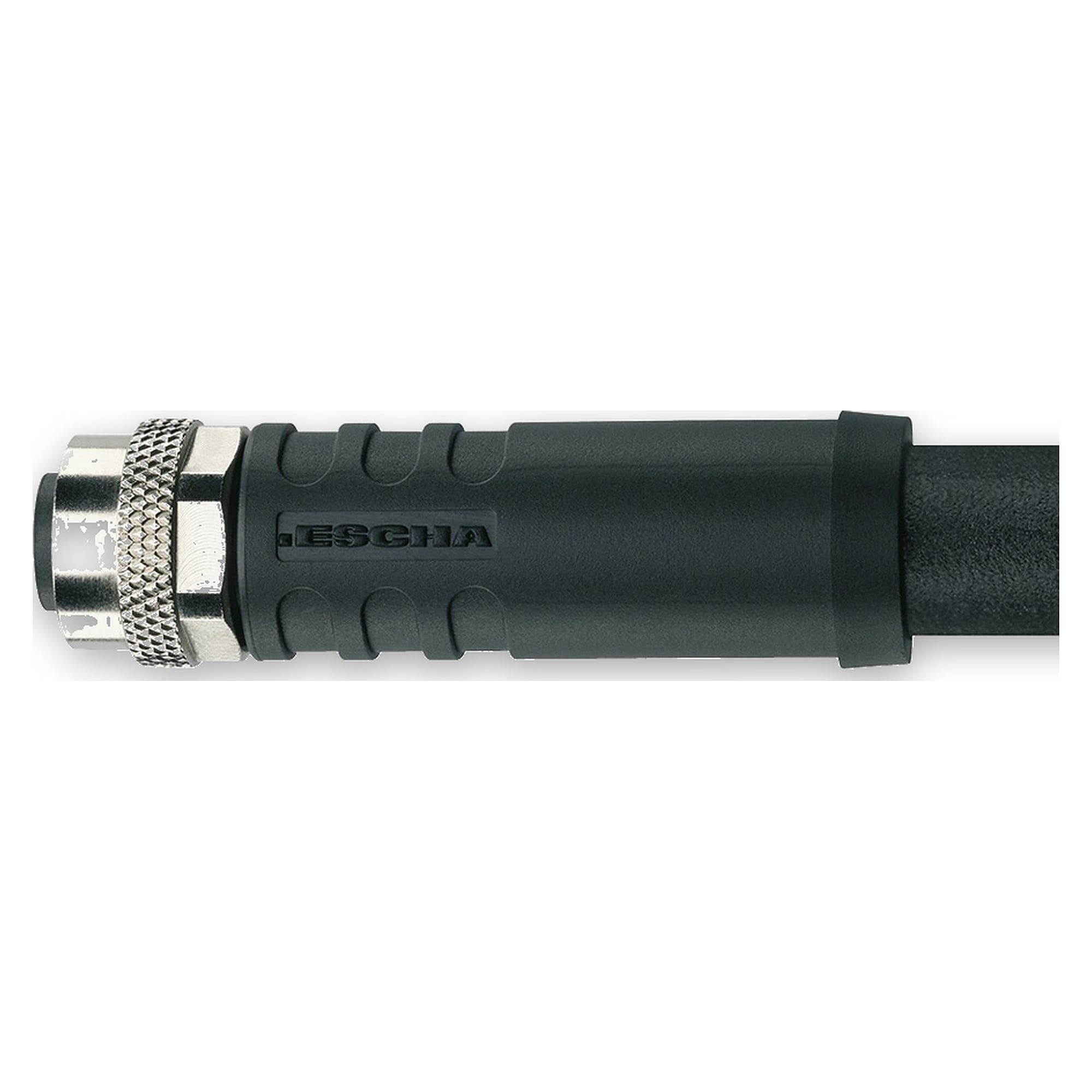

Sensor cable 4-pin PUR 2.5 m, M12 socket S-coded to open ends, 220-240V AC - LED2WORK 200100-15

Safely supplies mains voltage to LED2WORK 230V AC luminaires with an S-coded M12 port. One end carries a ready S-coded M12 socket, the other four open wire ends for free connection, sealed to IP68 once mounted. The larger 1.5 mm² cross-section is rated for the higher voltage.

Key benefits

• S-coded M12 socket rated for 230V AC supply
• 1.5 mm² conductor cross-section, load up to 12 A per pin

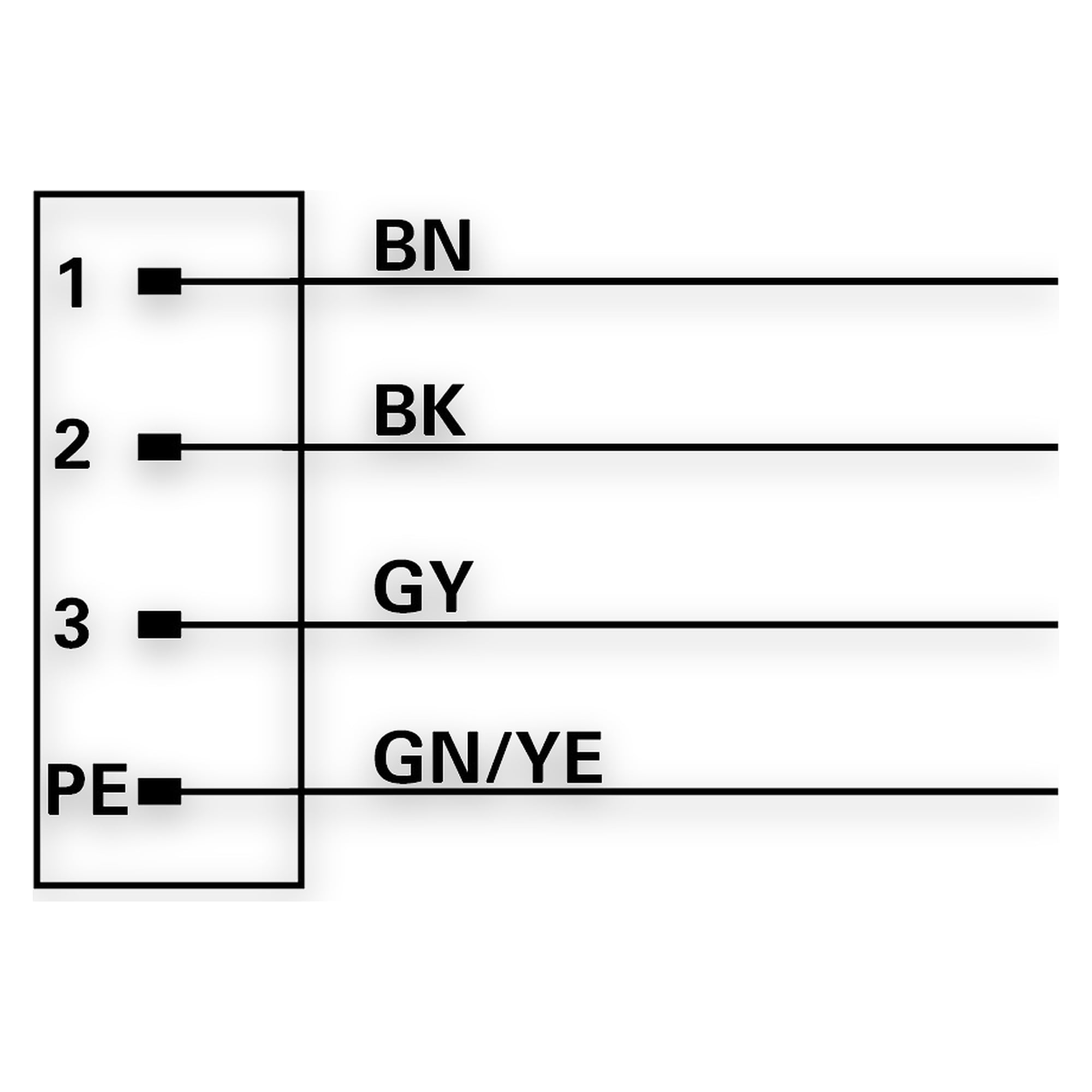

• 2.5 m of 4-core black PUR cable with four open wire ends for free wiring
• Protection rating IP65, IP67 and IP68 when fitted
• Wide operating range from -30 °C to +90 °C

Applications

For connecting LED2WORK 230V AC luminaires with an S-coded M12 plug to the mains supply. The open wire ends allow field termination on the supply side.
