M12 Steckverbinder Buchse gewinkelt, 4-polig, A-kodiert, konfektionierbar, IP67 - LED2WORK 200200-02

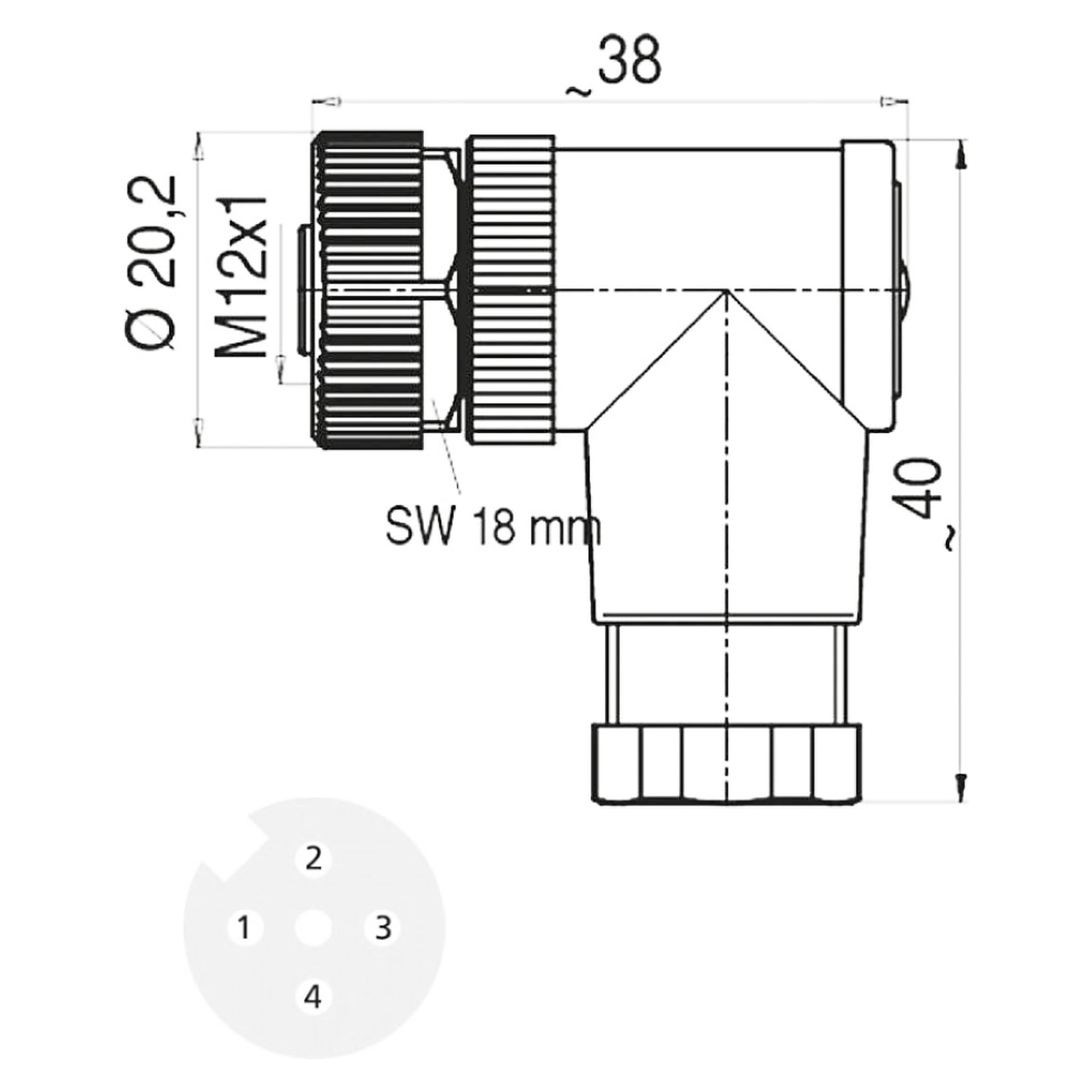

This angled M12 socket serves as a field-wireable connection socket for 24V DC LED lights with an M12 A-coded connection. It plugs onto the M12 connection of the light and is fixed with the metal knurled ring. The angled design saves space in tight installation conditions.

Key benefits

• Angled design for space-saving cabling
• Field-wireable for individual cable lengths
• Screw terminals (AWG 18) and Pg7 cable gland for a secure assembly
• IP67 protection rating once assembled, for harsh environments
• Wide temperature range from -40 °C to +80 °C, up to 4 A

Technical data

• Model: connection accessory
• Design: socket, angled
• Coding: A-coded
• Number of pins: 4-pin
• Quantity: 1 piece
• Suitable for: 24V DC LED lights with M12 A-coded connection
• Connection type: screw
• Cable entry: 4 mm to 6 mm
• Conductor cross-section: 0.25 mm² to 0.75 mm² (AWG 24-18)
• Rated voltage: 250 V AC/DC
• Operating voltage: 24V DC
• Current rating: 4 A
• Ambient temperature: -40 °C to +80 °C
• Protection rating (assembled): IP67
• Coupling nut material: CuZn, nickel-plated
• Contact material: CuZn, CuSnZn
• Cable housing material: plastic
• Weight: 50 g

Applications

For the space-saving connection of LED lights in logistics and packaging technology as well as in factory automation and special machine construction.
